3.9.2 Prepare the Transporter

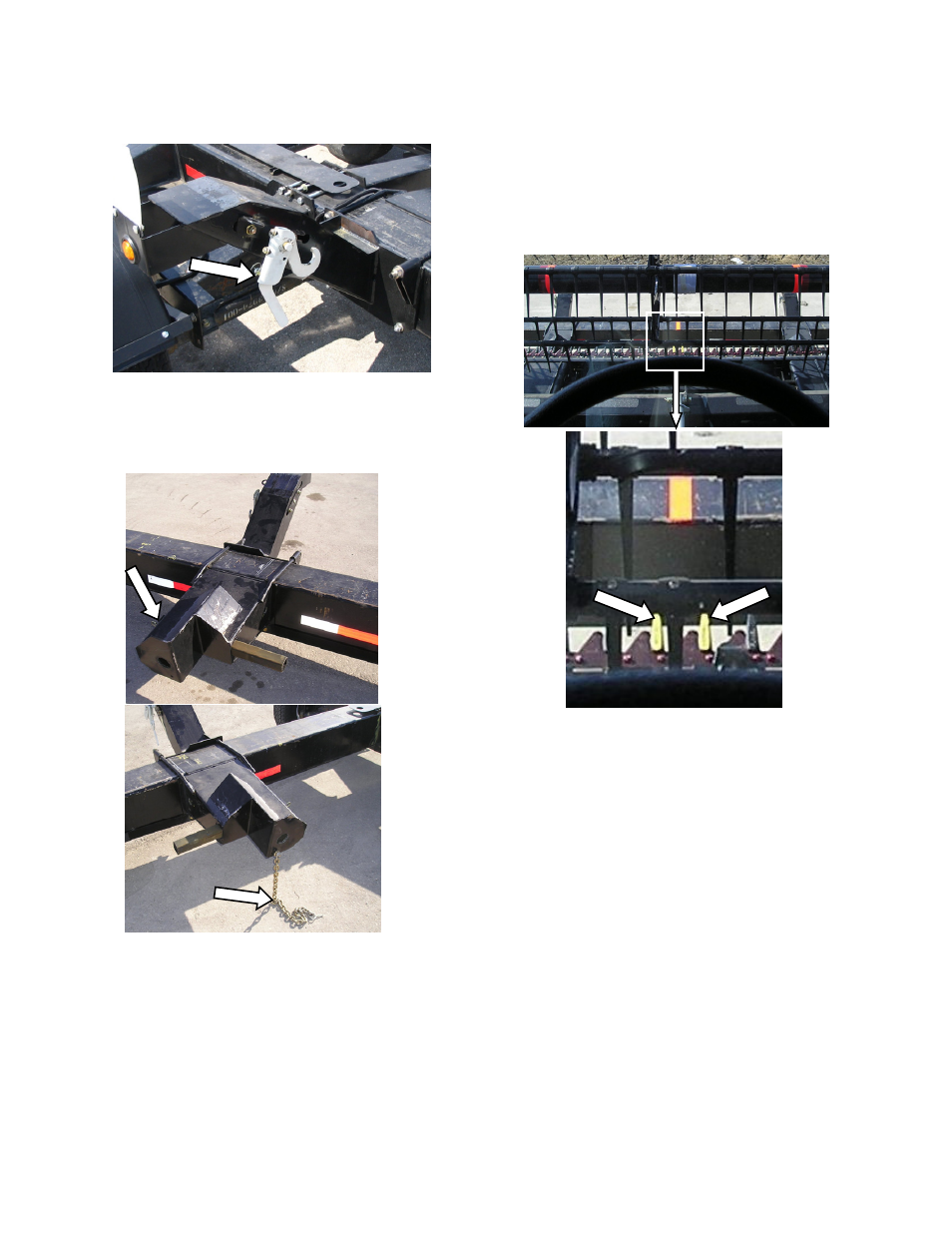

a. Ensure both cutterbar tie-downs on transporter
are in the down position and the transporter is
cleared of tools or other debris that may
damage the header.
b. Remove hairpin on left support tube and slide
support tube to inboard side of support. Re-
install hairpin.
c. Remove hairpin to remove chain from storage
position on support tube.
3.9.3 Loading
Procedure
a. Disengage header lift cylinder stops and start
windrower.
b. Approach transporter from left hand side, lining
up the mid-point of the header (center-link)
with the mid-point of the two center supports
on the transporter.
NOTE
Orange or red marking tape on the
transporter frame identifies the mid-point
between the center cutterbar supports.
Tape may need to be relocated
depending on header configuration.
Refer to SECTION UA. Step 2.
Configuring the Transporter.
TIP
Mark the center guard with fluorescent
paint/marker or equivalent to assist in
lining up header with transporter. The
center guard is at the mid-point of the
header opening.
(continued next page)
