SECTION OM – OPERATOR’S MANUAL
Form # 169365
OM-19
Issue – May 2008
3.9 LOADING D SERIES WINDROWER
HEADER ONTO TRANSPORTER
a. Set up transporter to suit your header. Refer
to Step 2. Configuring The Transporter in
SECTION UA. UNLOADING AND SETUP.
b. Block the transporter wheels.
3.9.1 Prepare the Header

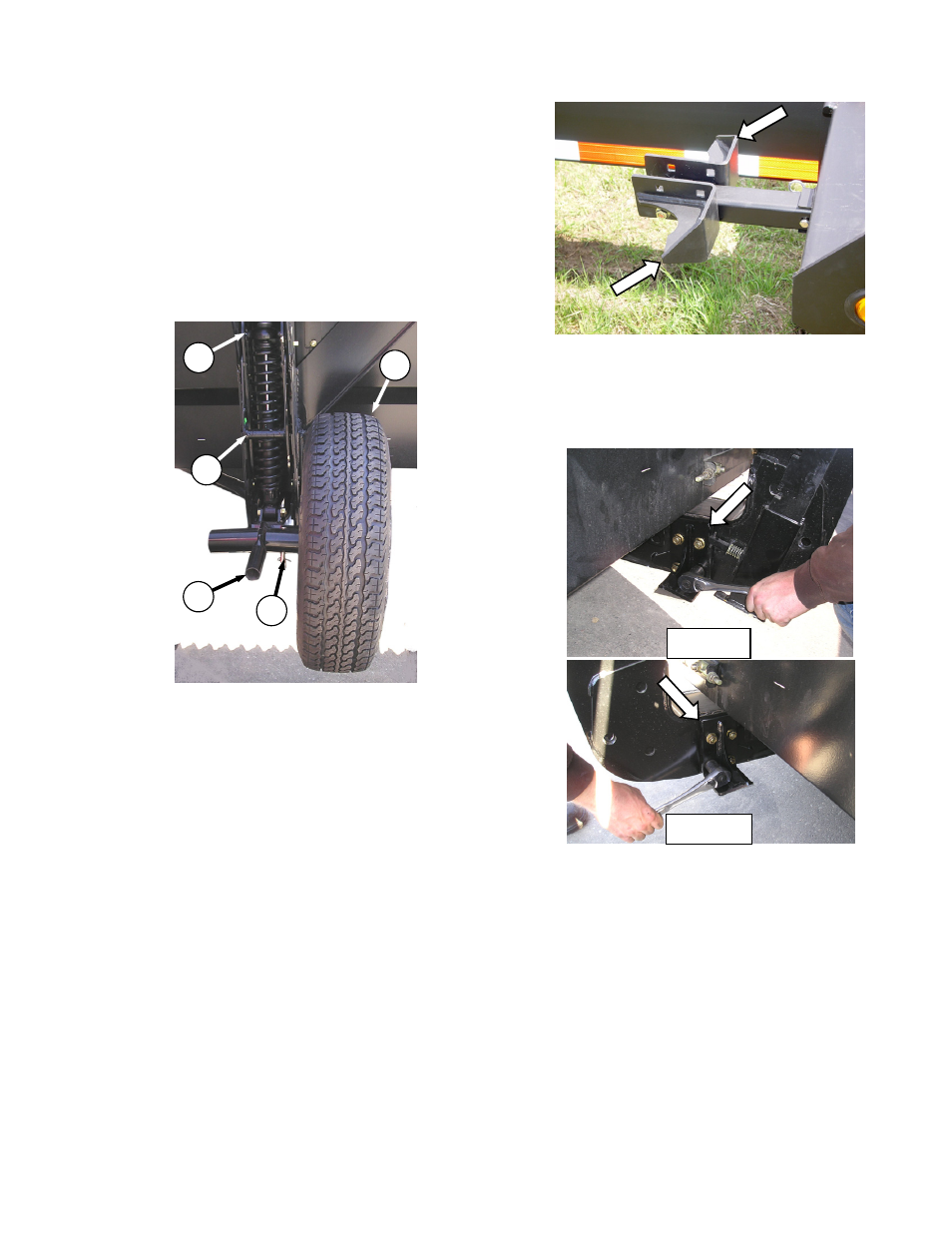

a. Raise the stabilizer wheels on header as
follows:
1. Support wheel weight by lifting slightly
with one hand on handle (A), and pull up
on handle (B) to release lock.
2. Lift wheel with handle (A) to uppermost
position and engage support channel
into slot (C) in upper support.
3. Push down on handle (B) to lock.
b. The right hand stabilizer wheel on 35 ft
headers needs to be removed prior to loading
onto two-axle and three-axle transporters.
1. Remove clevis pin (D) securing axle to
axle support.
2. Remove wheel assembly (E) and re-
install clevis pin in axle or axle support.
3. Store wheel assembly on header deck or
in truck bed.
c. If towing on road or highway with truck,
remove and store the crop dividers in location
provided on end sheet. Refer to header
Operator’s Manual.
d. If loading header for the first time, remove the
two leg guides and hardware that are secured
to the transporter left center support. Discard
bolt and nut.
e. Install leg guides on header as follows:
1. Raise header fully, shut down windrower
engine and remove key.
2. Engage both header lift cylinder stops.
3. Locate leg guides on outboard side of
both center legs on header. Secure
each guide with four bolts and nuts.
A
C
B
D
E
LH LEG
RH LEG
