MacDon Double Windrow Attachment User Manual
Page 53
SECTION OM – OPERATOR’S MANUAL
Form # 169365
OM-29
Issue – May 2008
3.12 UNLOADING D AND FD SERIES
COMBINE HEADER

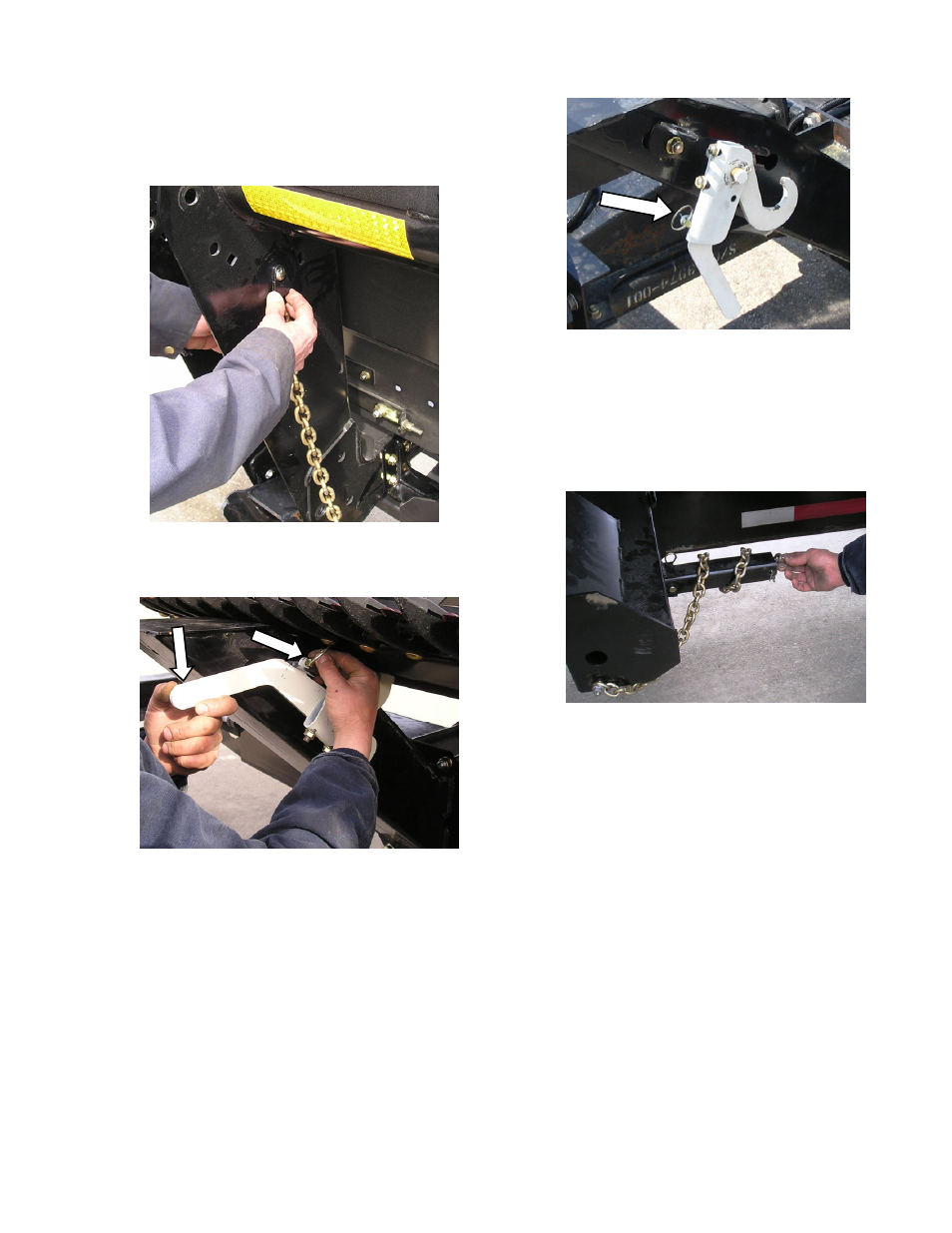

a. Block the transporter wheels.
b. Loosen bolt on anchor chain retaining plate
and swivel plate off chain.
c. Remove chain from slot.
d. Remove lynch pins from both cutterbar tie-
downs and push levers down to disengage
hooks from cutterbar.
e. Leave lever in lowered position and store lynch
pin in hole provided on lever.
f. Attach combine to header/adapter. Refer to
CA20 Combine Adapter Operator’s Manual.
g. Activate header lift cylinders on combine to lift
header off transporter.
h. Back slowly away from transporter.
i. Secure anchor chain to transporter support
with hairpin.
j. Re-install stabilizer wheel (if removed) and
crop dividers onto header.
