SECTION OM – OPERATOR’S MANUAL
Form # 169365
OM-21
Issue – May 2008

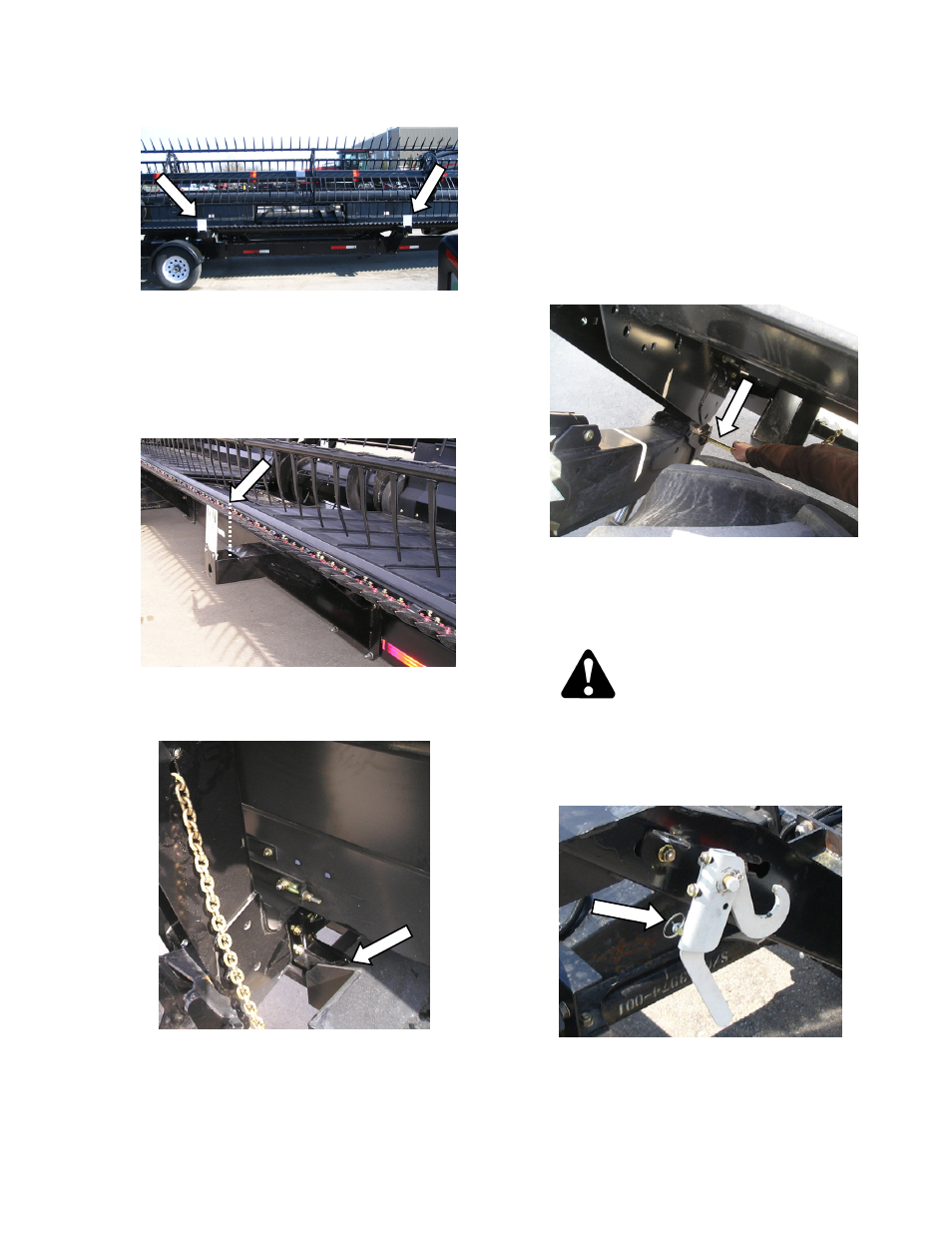

c. Slowly continue forward until the guards touch
the white plastic stops on the transporter.
Lower header as required so that the white
plastic stops remain visible from the operator’s
station.
d. Slowly lower header onto transporter cutterbar
supports.
e. Back up slightly until cutterbar guard tips
approximately line up with the top plate on the
cutterbar support.
f. Continue to lower header until leg guides
contact supports at rear of header and header
is resting fully on the transporter.
IMPORTANT
Header should rest firmly in and against
the support pockets.
g. Lower reel fully and retract to aft position.
h. Shutdown windrower and remove key.
i. Disconnect reel and header drive hydraulics
and store on tractor. Refer to header
operator’s manual.
j. Disengage header float springs and disconnect
center link. Refer to tractor operator’s manual.
k. Remove the two pins securing header boots to
tractor.
l. Start windrower and back away from header.
3.9.4 Engage Cutterbar Tie-downs
CAUTION
Cutterbar tie-downs must be engaged
before transporting header. Failure to do
so may result in header shifting on
transporter and damage to header or
transporter.
a. Remove lynch pin from storage location on
lever.
(continued next page)
