b. Position hook onto cutterbar lower edge.
c. Pull lever to lock hook onto cutterbar. The tie-
down is an over-center locking system and
should require a firm pull to lock the hook.
d. Re-install lynch pin in lever to lock into
position.

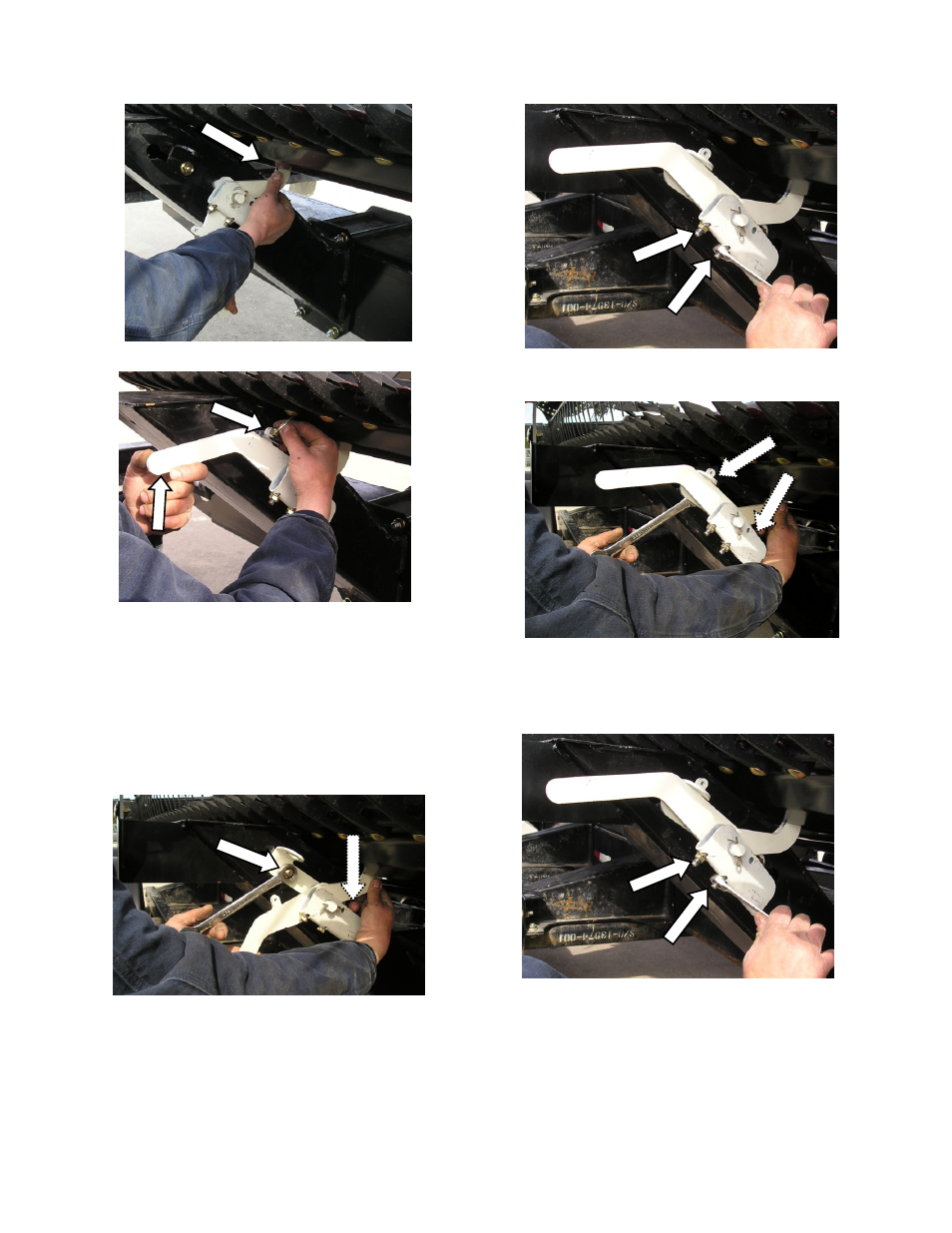

e. If the cutterbar tie-down does not latch
properly, adjust as follows:
1. Check that header is properly positioned
on transporter.
2. Loosen the two tie-down attachment
bolts.
3. Back-off the two nuts below pivot with
the lever in the up position.
4. Position tie-down with hook firmly
engaging the cutterbar. Tighten the two
attachment bolts.
5. Lower lever and tighten nuts slightly.
6. Raise lever. Lever should over-center
with a firm pull. Adjust nuts as required.
7. Repeat above steps 2 to 6 for other tie-
down.
