SECTION OM – OPERATOR’S MANUAL
Form # 169365
OM-15
Issue – May 2008
3.6.3 Windrower Hookup to Adapter Hitch
on Transporter
Refer to paragraph 3.4.1 Attaching Adapter
Hitch to Windrower Tractor.

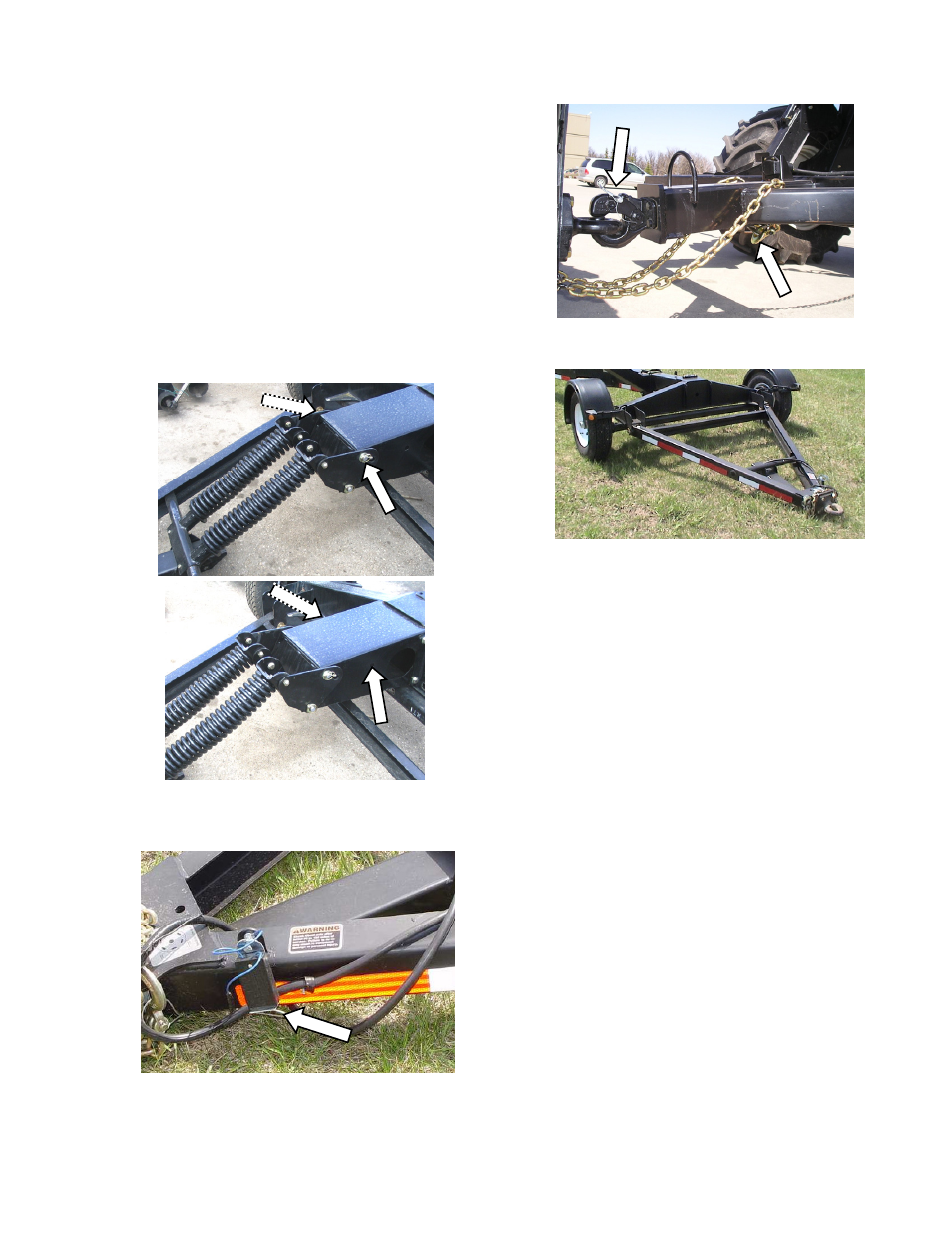

3.6.4 Transporter Unhook From
Windrower Adapter Hitch
a. Stop tractor engine and remove key.
b. Block the transporter wheels to prevent
transporter from moving.
c. Disengage header lift cylinder stops.
d. Start tractor and activate header lift cylinders
to lower hitch to ground.
e. Remove two pins and washers on weight
transfer spring assembly and store in holes in
frame.
f. Disconnect breakaway switch lanyard from
adapter hitch and store on transporter.
g. Disconnect electrical plug on adapter hitch.
h. Remove safety chains from adapter hitch and
store on transporter hitch.
i. Lift transporter hitch off tractor adapter pintle
hitch.
