MacDon Double Windrow Attachment - Manual (Page 23)

SECTION UA – UNLOADING AND SETUP
Form 169365
UA-9
Issue – May 2008

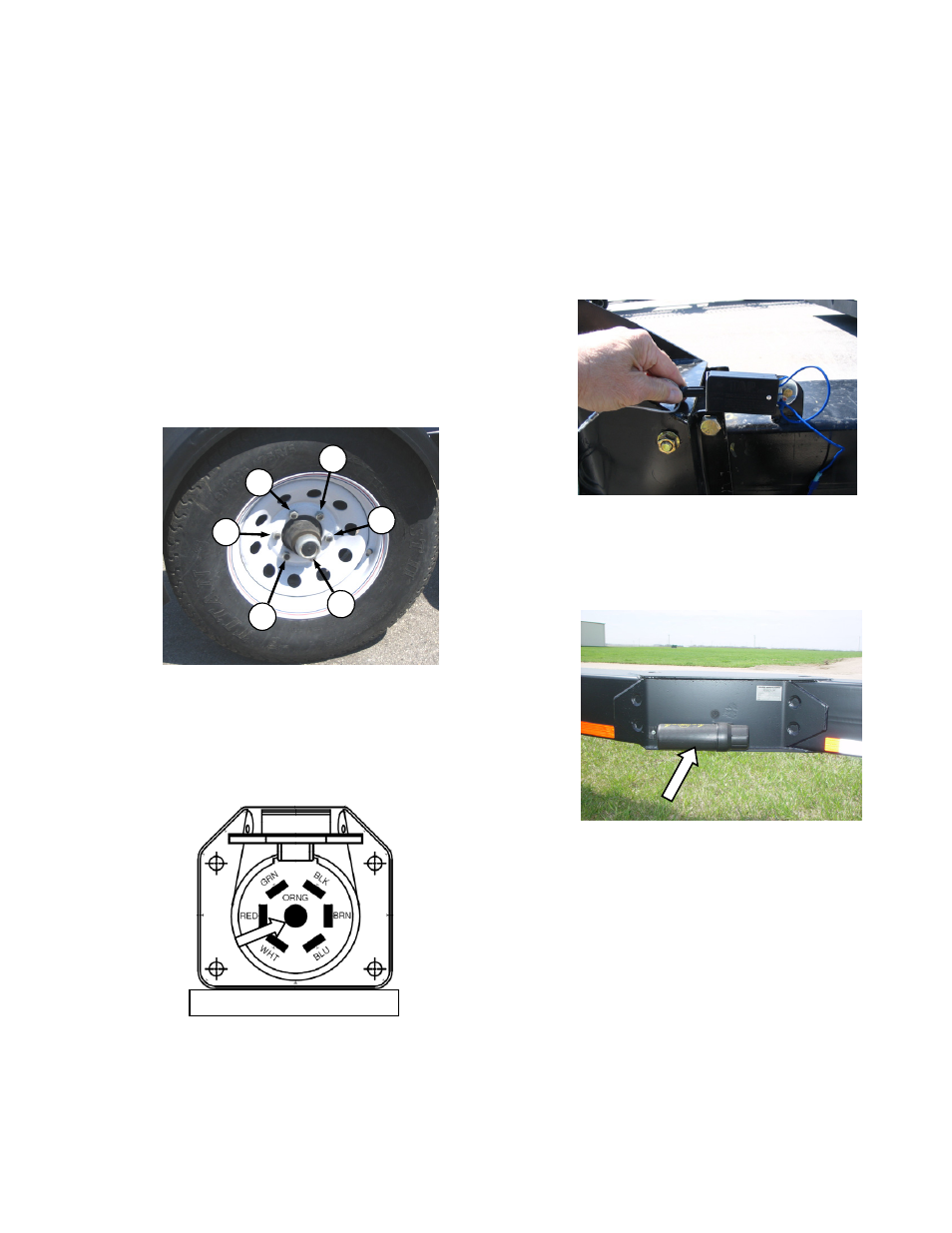

STEP 4. PRE-DELIVERY CHECK
Perform the final checks and adjustments as
listed on the "Pre-Delivery Checklist" (yellow
sheet attached to back of this instruction) to
ensure the machine is field-ready. Refer to the
pages for detailed instructions as indicated on
the checklist.
The completed checklist should be retained
either by the operator or the dealer.
A. TIRE PRESSURE
a. Check tire pressure on all tires. Correct
pressure is 65 psi (448 kPa).
B. WHEEL BOLT TORQUE
a. Check wheel bolt torque on all wheels. Correct
torque is 90-120 ft-lbf (122-163 N·m).
C. BRAKES
a. Hitch transporter to towing vehicle and connect
transporter wiring harness to towing vehicle.
IMPORTANT
Center pin on towing vehicle electrical
receptacle must not be energized,
otherwise the transporter brakes will be
activated. Re-wire receptacle if
necessary.
b. Drive slowly forward and apply brakes. Observe
if electric brakes on transporter are operational.
c. There should be no sensation of the transporter
pushing or pulling the tow vehicle.
D. LIGHTS
a. Check function of running lights, signal lights,
hazard lights, and brake lights.
E. BREAKAWAY SWITCH
a. Check breakaway switch operation by firmly
pulling on pin in breakaway switch. The brakes
should activate when the pin is pulled.
F. MANUALS
a. The owner’s manual storage case is located
near the front of the transporter on the right side.
b. Check that it is mounted securely.
c. Store this manual and other applicable
documents in storage case.
STEP 5. LUBRICATE THE
TRANSPORTER
Refer to SECTION OM, Paragraph 4.2,
Lubricating the Transporter
1
6
4
2
5
3
FRONT VIEW – COVER OPEN
