U

SER

S MANUAL

PHL1300

TERMINAL

/ IRU1300

CRADLE

7

2.2.2 Details of terminal:

1.

Reading window
laser beam for barcode reading will be
emitted from here

2.

LCD Display
for displaying information

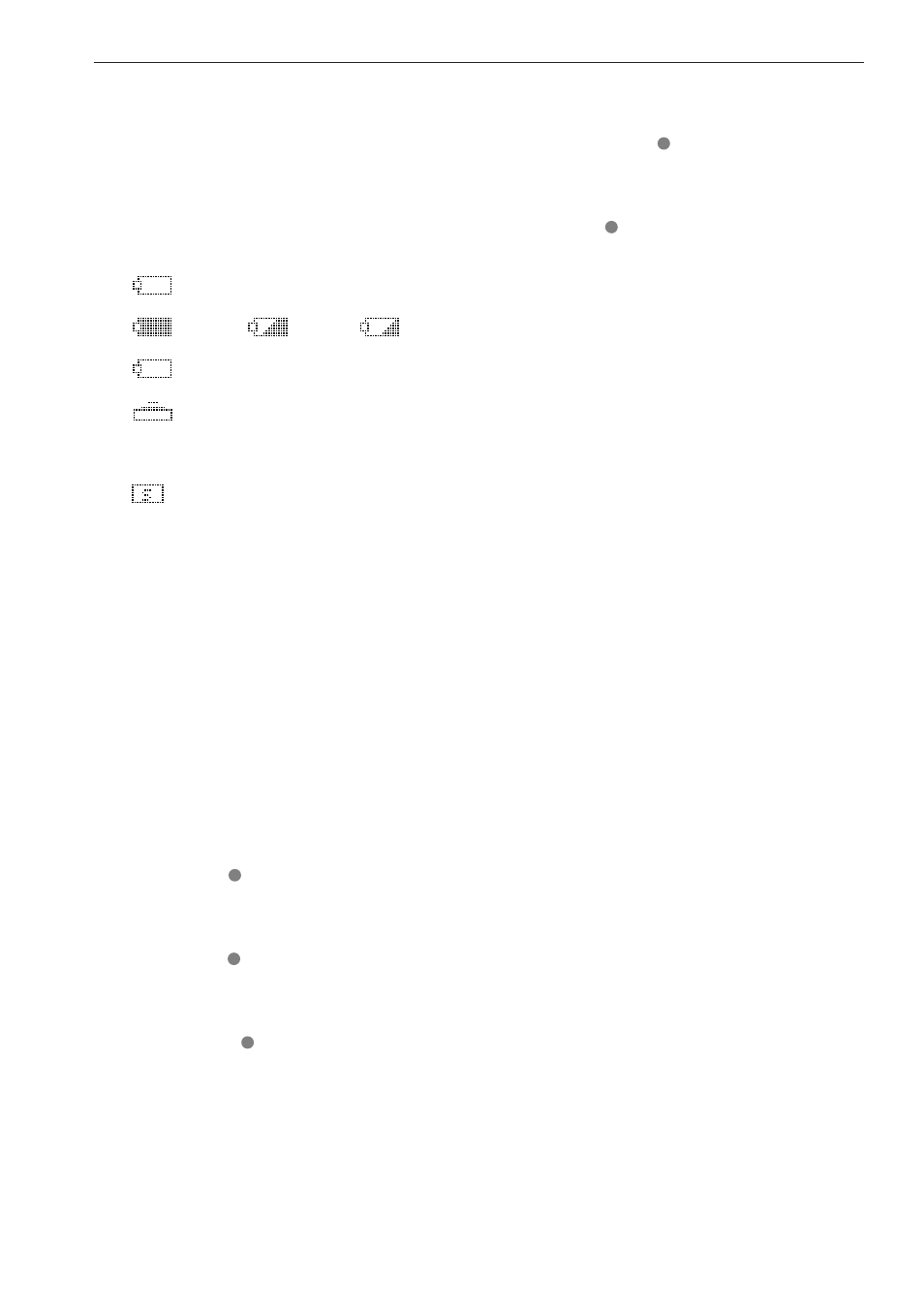

Main Battery indicator

Full.

2/3.

1/3.

Low. Replace immediately.

Backup Battery indicator

Off: Sufficient battery power
On: Battery low. Replace immediately.

Alpha mode on (Shift-key activated)

Backlight of LCD Display
When the backlight is turned on, the power
consumption increases. To extend the life
time of your batteries use the backlight as
little as possible.

3.

LED indicator
can be used to indicate results, for example
bar code reading / status of communication

4.

Buzzer
auditive indicator

5.

Power key
for switching power On/Off

6.

Trigger key

definable by application

typical use: read key, switches laser beam
on for barcode reading

7.

Quick keys

definable by application

typical use: menu scroll keys or yes/no
input

8.

Control keys

definable by application

for controlling basic functions
typical use as below:
CLR : Cancel input
BS

: Back space

S

: Shift key

“S”on the LCD display indicates

the terminal is in the shift mode

9.

Character keys

definable by application

typical use: for input of alpha-numeric and
punctuation characters

10. ENT key

definable by application

typical use: for confirming input

11. Backup battery case cover

for housing backup battery

12. Main battery case cover

for housing main battery

13. Hand strap pillar

for attaching hand strap

14. Optical interface window

for infra red communication

15. Electrical contacts

for power supply from the cradle IRU1300
to terminal
