MTS SWIFT 50 GLP Sensor User Manual
Page 52
SWIFT 50 GLP Sensors Installation
52
Road and Track Vehicles
Installing the Transducer
E.
Rotate the tire until the inclinometer reads 0.0°, ±0.1°.
F.
Push the Angle Zero button on the front of the TI box. The Angle Zero
indicator will turn on for a few seconds, then turn off indicating that the
Angle Zero procedure is complete.
10. After completing the Bridge and Angle Zero procedures, rotate the wheel
one full revolution clockwise.
This allows the electronics to locate the index pulse for the encoder.
Note
The wheel must rotate one-half revolution in the same direction and then
pass over the encoder index point before data collection is started.
11. Perform
, “Verifying the Quality of the Zero Procedure,”
12. Look at your data acquisition system to verify that the SWIFT sensor is
gathering data.

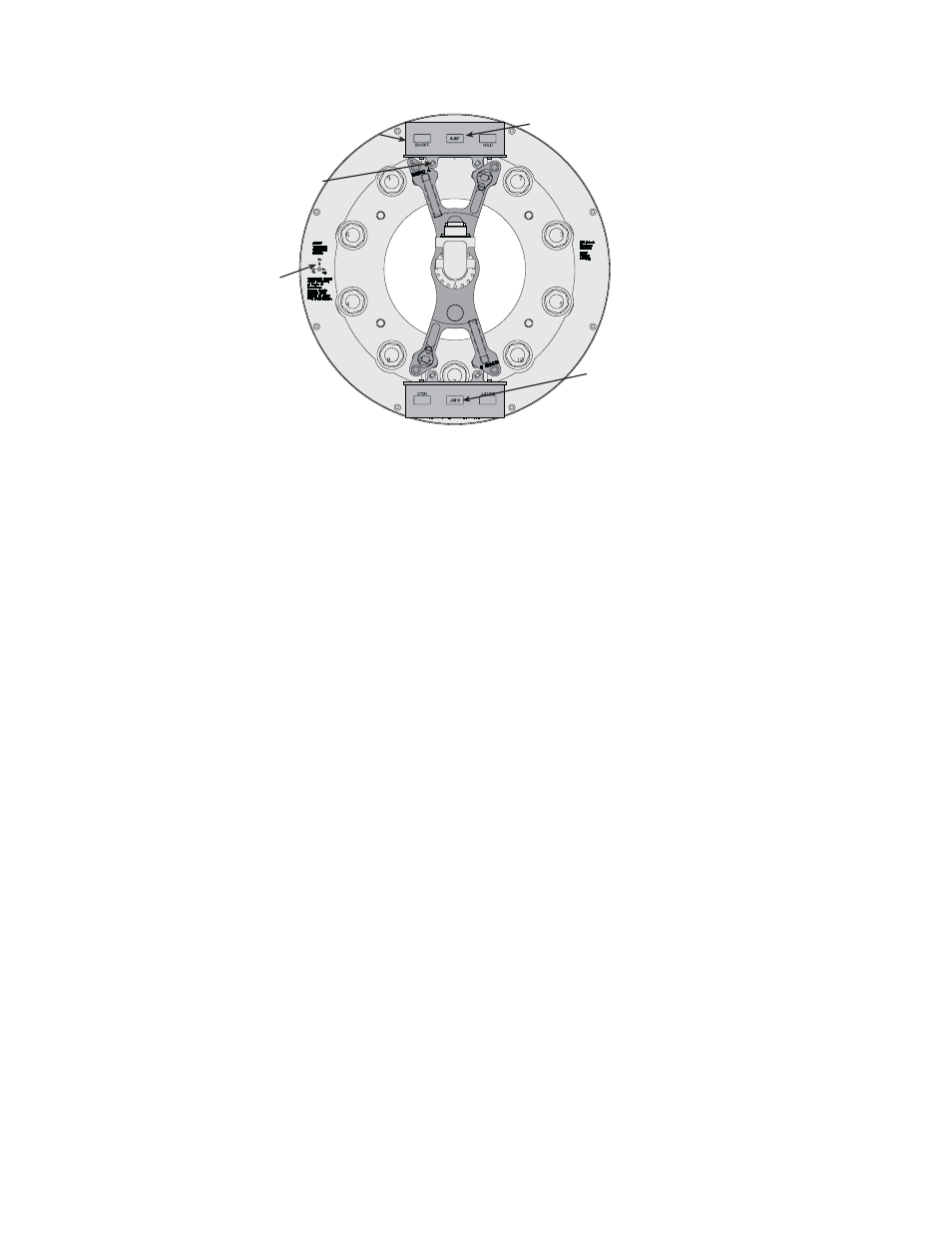

S50-20
Mounting Screws
Digital Inclinometer
in this position
should read 0°, ±0.1°
Level Bracket
Axes
Icon
Digital Inclinometer
in this position
should read 0°, ±0.1°
