Importance of bolts – MTS SWIFT 50 GLP Sensor User Manual
Page 30
SWIFT 50 GLP Sensors Installation
30
Road and Track Vehicles
Installing the Transducer

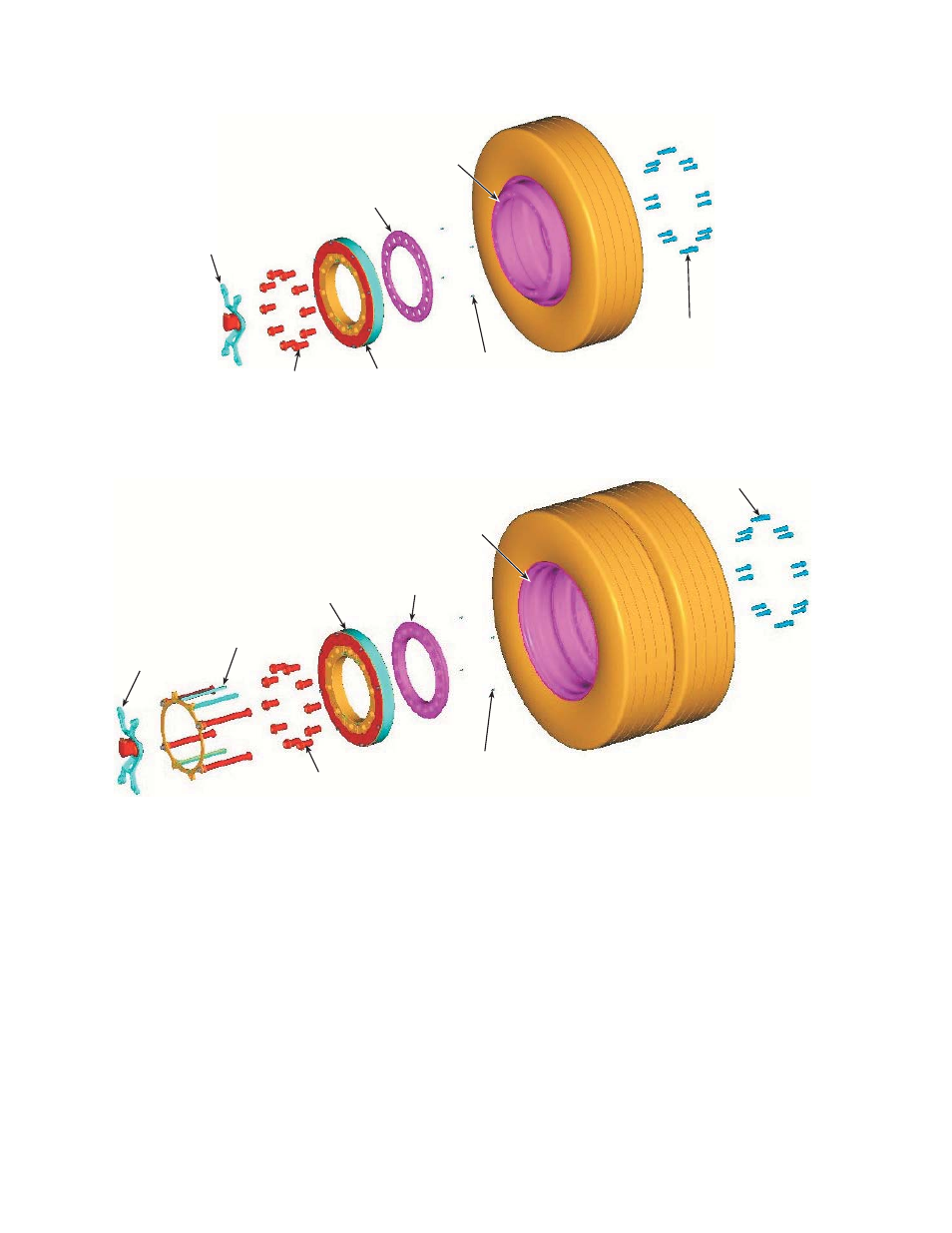

Installation Components (Test Track–Front)
Installation Components (Test Track–Duals)
Importance of bolts
Bolts provide exceptional clamp force at the transducer to rim/spindle interface.
•
Bolts on the inner hub secure the hub adapter to the SWIFT sensor.
•
Bolts on the outer ring secure the SWIFT sensor to the wheel rim (or road
simulator spindle adapter).
Note
Make sure all bolts are in place and fully torqued during all tests.
Correct use of bolts reduces the safety hazard and ensures optimal
transducer performance.
Slip Ring
Bracket
(with encoder)
Lug Nuts and
Shim Washers (10)
Spindle Adapter
Spacer
Transducer
Modified
Wheel Rim
(front wheel)
S50-008
Spacer-to-Transducer
Fasteners
Rim-to-Transducer
Assembly Fasteners
Modified
Wheel Rim
(dual wheel)
Transducer
Spindle
Adapter
Spacer
Lug Nuts and
Shim Washers (10)
S50-013
Slip Ring
Extension
Bracket
Slip Ring
Bracket
(with encoder)
Spacer-to-Transducer
Fasteners
Rim-to-Transducer
Assembly Fasteners
