MTS SWIFT 50 GLP Sensor User Manual
Page 49
Road and Track Vehicles
SWIFT 50 GLP Sensors Installation
Installing the Transducer
49
E.

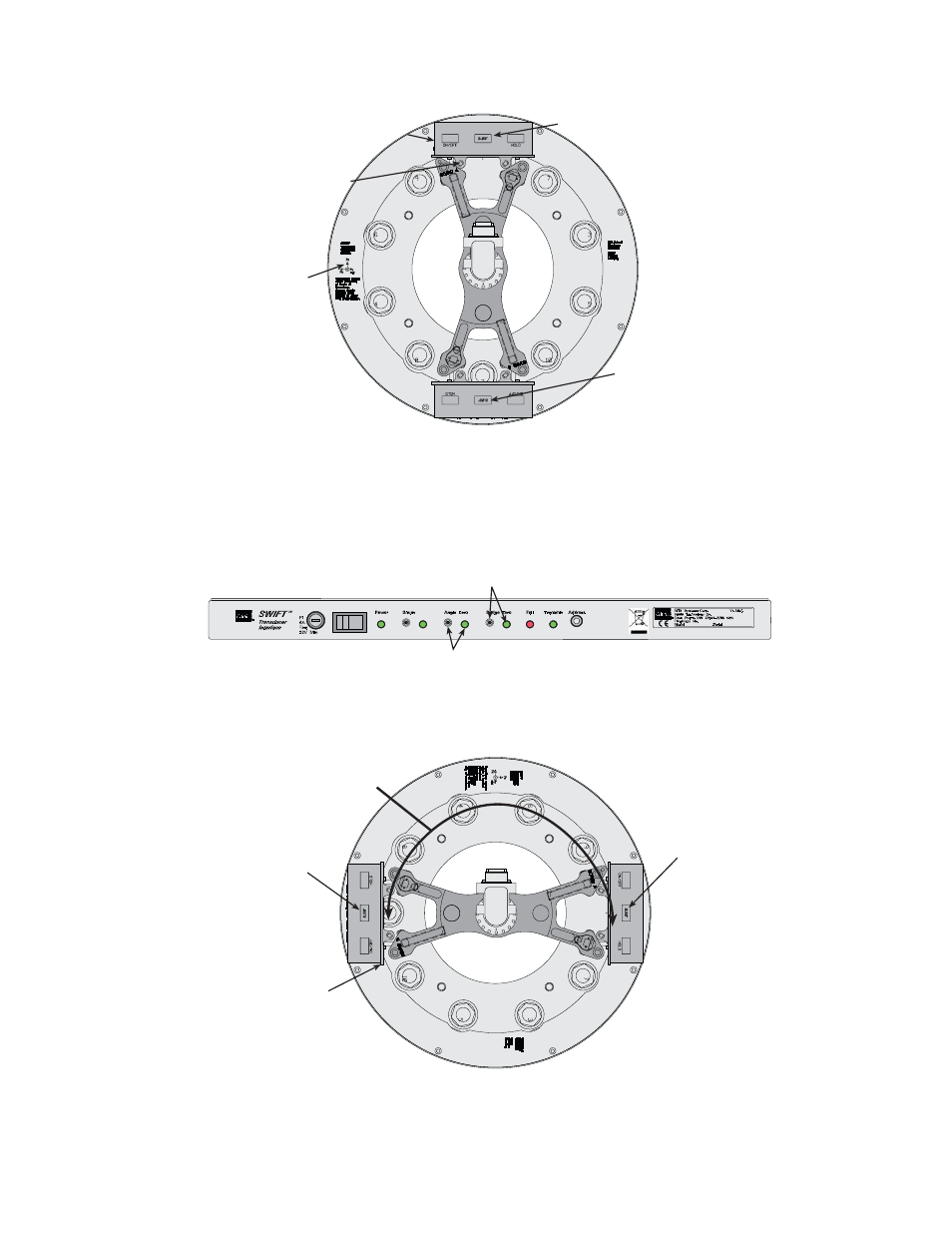

Rotate the tire until the inclinometer reads 0.0°, ±0.1°.
F.
Push the Bridge Zero button on the front of the TI box. The LED will
turn on for a few seconds, then start blinking rapidly. The Angle Zero
indicator will start blinking slowly.
G.
Rotate the tire in either direction until the inclinometer reads 90°,
±0.1°.
S50-20
Mounting Screws
Digital Inclinometer
in this position
should read 0°, ±0.1°
Level Bracket
Axes
Icon
Digital Inclinometer
in this position
should read 0°, ±0.1°
S20-21
Angle Zero
Switch and Indicator
Bridge Zero
Switch and Indicator
S50-23
Level Bracket
Rotate
Transducer
+ or 90°
Digital Inclinometer
in this position
should read 90°, ±0.1°
Digital Inclinometer
in this position
should read 90°, ±0.1°
