MTS Series 793 Controller User Manual
Page 81
Monitoring Test Information
MTS Series 793 Controller Overview
Operation Concepts
81

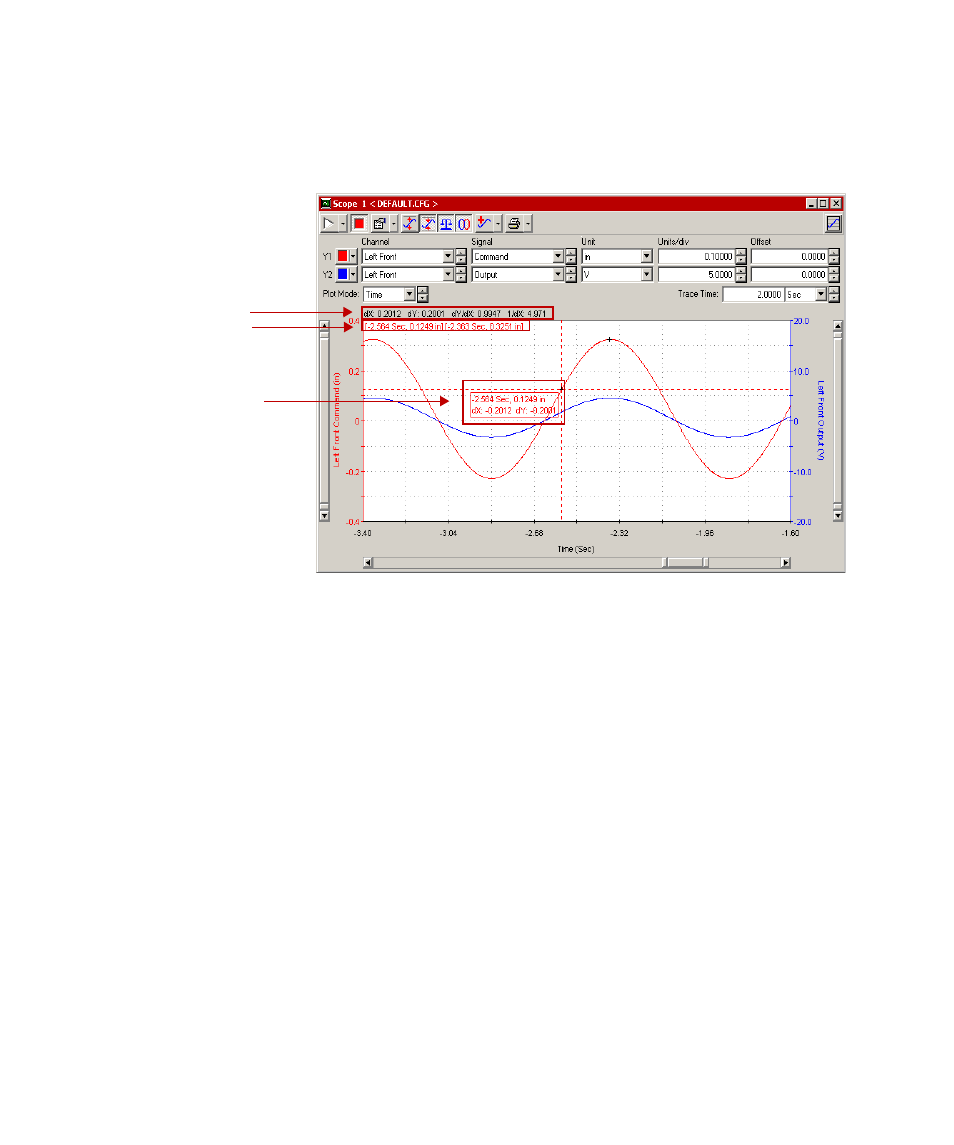

When you place the cursor on the trace, it becomes a crosshairs. With the
crosshairs, you can select individual data points on the trace and see their precise
coordinates on the axes in the associated display box.
Marker delta display
Marker coordinates
display
New marker with data
point display box
