FlexTest SE Controller Description
MTS Series 793 Controller Overview
Controller Hardware
29
Typical FlexTest SE
Plus configuration
FlexTest SE Plus Controllers typically support one channel on one station, and
include the following:
•
VME processor capable of an update rate of 6kHz, along with a two-stage or
three-stage valve driver, and two digital universal conditioners
•
One analog input and three analog outputs
•
Digital inputs and outputs (for interlocks or user-defined purposes)
•
Serial interface for temperature control
Options
•
Up to three additional DUCs
•
Six auxiliary analog-to-digital input channels
•
Test stand (adjustable arm or portable stand) for the FlexTest SE Controller
Typical FlexTest SE 2-
Channel configuration
The FlexTest SE 2-Channel Controller is designed for two-channel, single-
station test applications. FlexTest 2-Channel Controllers include the following
additions to the FlexTest SE Plus configuration:
•
Two two-stage or three-stage valve drivers
•
Four digital universal conditioners (DUCs)
For more information
For more information on DUCs, see

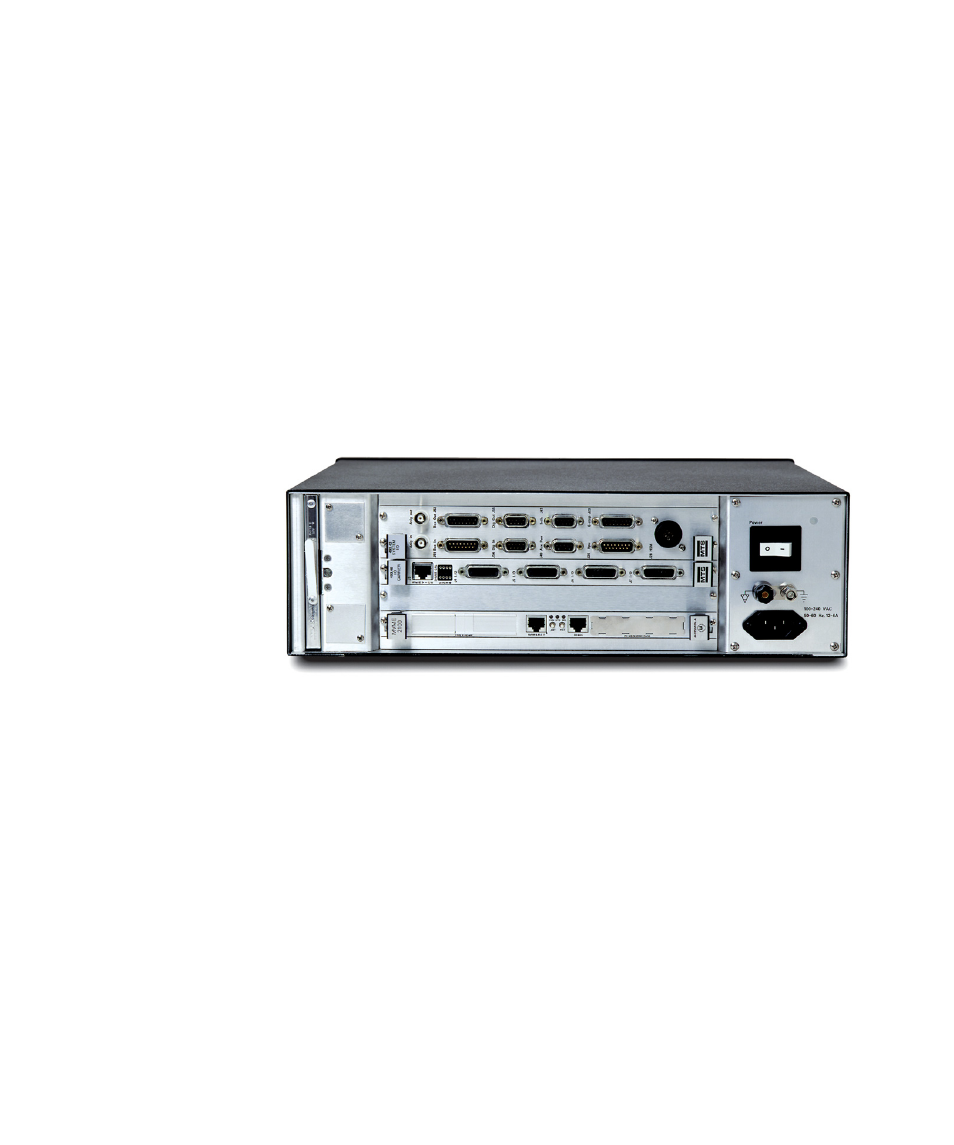

FlexTest SE
Controller backpanel
