MTS Series 793 Controller User Manual
Page 21
About MTS FlexTest Models 40/60/100/200
MTS Series 793 Controller Overview
Controller Hardware
21

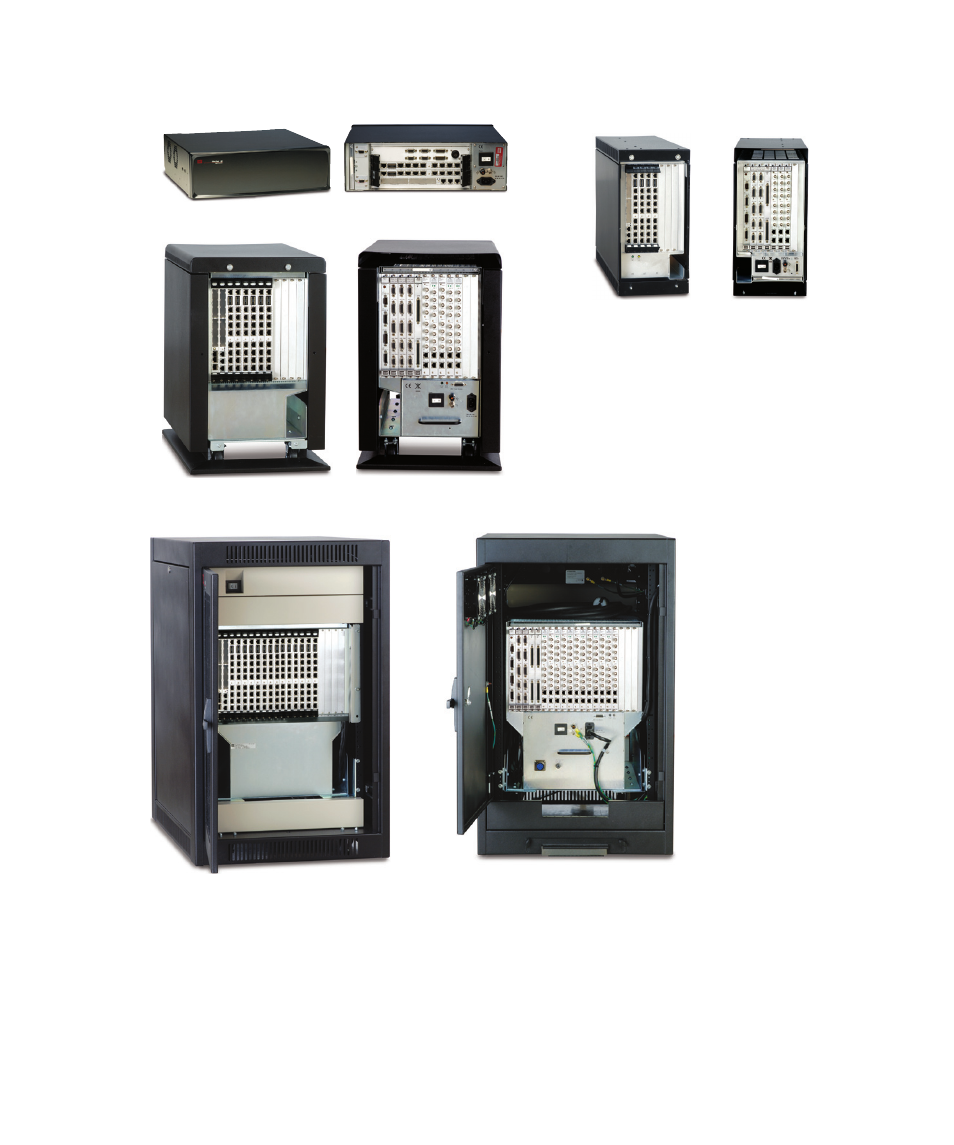

FlexTest Models 40/60/100/200 Controllers
FlexTest 40
FlexTest 60
FlexTest 100
FlexTest 200
Front
(6 VME slots)
Back
(8 transition slots,
7 powered)
Back
(12 transition slots, 10 powered)
Back
(3 VME slots)
Front
(10 VME slots)
Front
(20 VME slots)
Back
(20 transition slots, 19 powered)
