Page 25
FlexTest SE Controller Description
MTS Series 793 Controller Overview
Controller Hardware
25
FlexTest SE Controller Description
The FlexTest SE Controller is a fully-digital PIDF controller that is available in
three configurations:
•
FlexTest SE Basic
•
FlexTest SE Plus
•
FlexTest SE 2-Channel
FlexTest SE Basic
The FlexTest SE Basic is a stand-alone controller equipped with a multicolor
display panel and direct-access menu keys. It does not require a PC to operate; a
special form of MTS Series 793 Software is stored directly on its internal flash
memory.
The FlexTest SE Basic Controller is equipped with its own manual (FlexTest SE
User Information and Software Reference, PN 100-149-574).

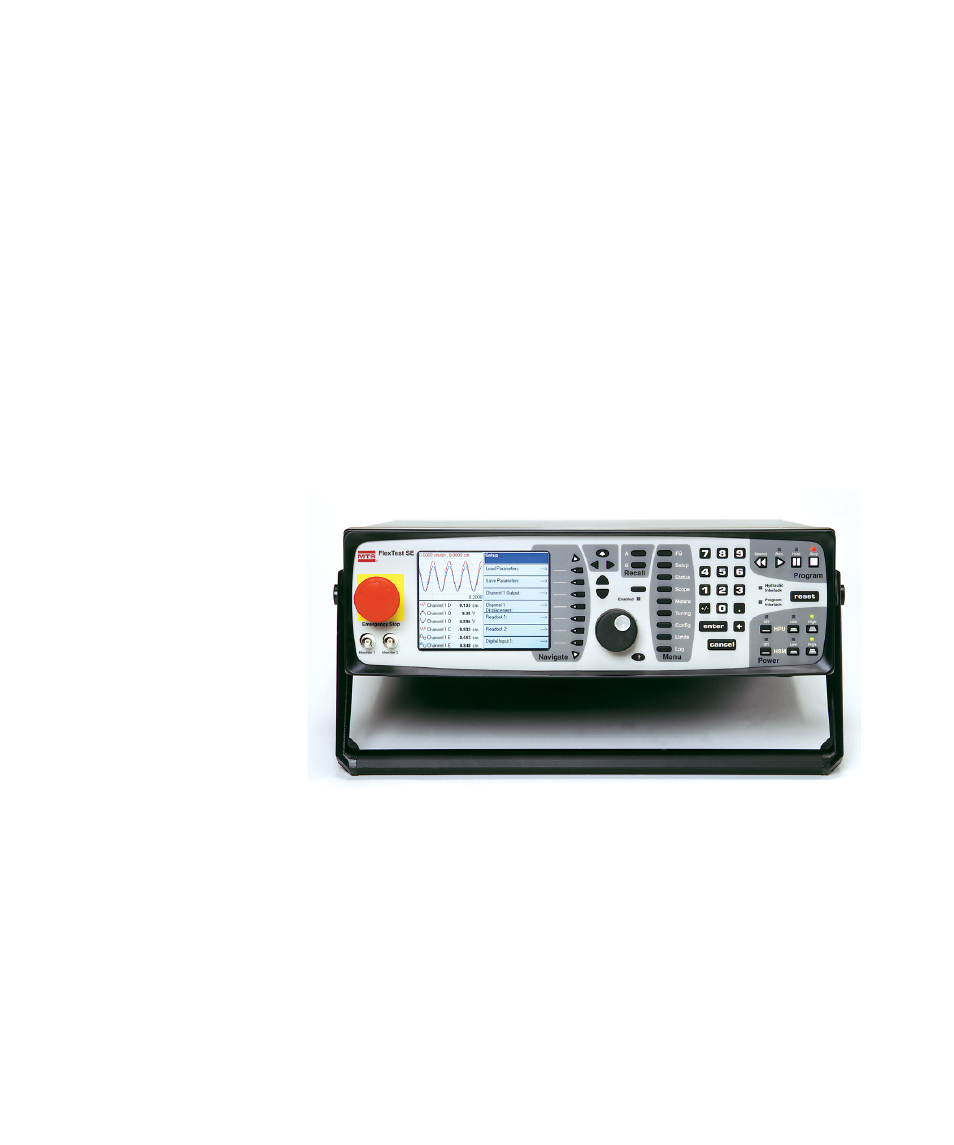

FlexTest SE Controller
With the FlexTest SE Basic
model, you perform all
operations from the front
panel controls shown here.
For the FlexTest SE Plus and
FlexTest SE 2-Channel
models, you typically perform
most operations from a PC
loaded with Series 793
Software.
