VERTICAL SEAM

utter

ver

eckIng

All Gutter Flashings must be installed prior to panel installation.

1. Install Box Gutter flashing back against substrate. To hold Box Gutter flashing in place, fasten to substrate with #10-12 x 1"

Pancake Head Woodscrew 4'-0" o.c.

2. Install Universal Gutter/Downspout Straps every 3'-0" of gutter length to substrate with #10-12 x 1" Pancake Head Woodscrew,

and fasten to Box Gutter with (1) Pop Rivet per Strap.

3. Apply a row of Double Bead of Tape Sealant to bottom leg of Offset Cleat, position on back leg of Box Gutter, and fasten to

substrate with #10-12 x 1" Pancake Head Woodscrew, 1'-0" o.c.

4. Install panel by engaging field hemmed end of panel (see page 18) to Offset Cleat (see pages 20-21 for panel installation).

5. If two or more flashings are required, lap the flashing over the previously installed flashing by a minimum of 2" placing a bead

of Tube Sealant between the flashings and securing with pop rivets 2

" o.c.

6. Note: Size and gauge of Box Gutter must be designed to applicable governing building code.

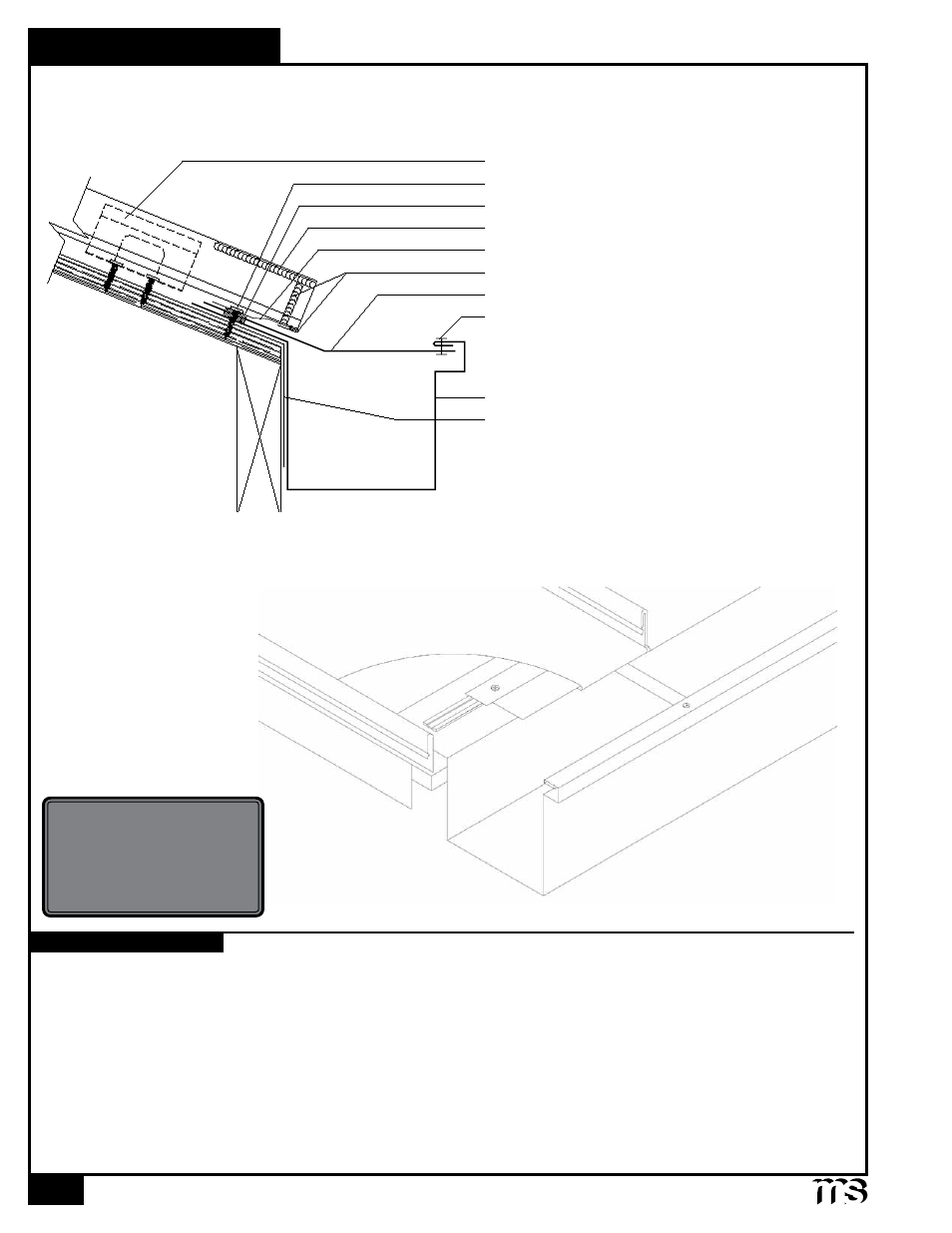

Universal Gutter/ Down Spout Strap (3'-0" o.c.)

Double Bead Tape Sealant

Box Gutter

Offset Cleat

Vertical Seam Panel

Vertical Seam Clip

Moisture Barrier (by others)

#10-12 x 1" PHW (1'-0" o.c.)

" Pop Rivet (every strap)

Tube Sealant

INSTALLATION NOTES

Note:

Panel rib must be field

notched and flat part

of panel must be field

bent to accept Offset

Cleat (see page 18).

CAUTION

In locations where heavy

rainfall or severe ice and

snow may occur, Metal

Sales' standard gutters may

not be suitable for use.

1:12 Slope

Minimum

over Solid

Substrate
