VERTICAL SEAM
18
Panels must be field notched and hemmed when using an offset cleat.
1. Field notch male and female legs of panel up to 1 1 /
2
" from end of panel.
2. Place the hemming tool onto the protruding pan of the panel and bend down to
form an open hem.
3. Place a continuous bead of tube sealant inside the open hem.
4. Engage offset cleat into open hem at the end of the panel to start panel installation.
d
eSIgn
/ I
nStallatIon
c
onSIderatIonS
(
cont
.)

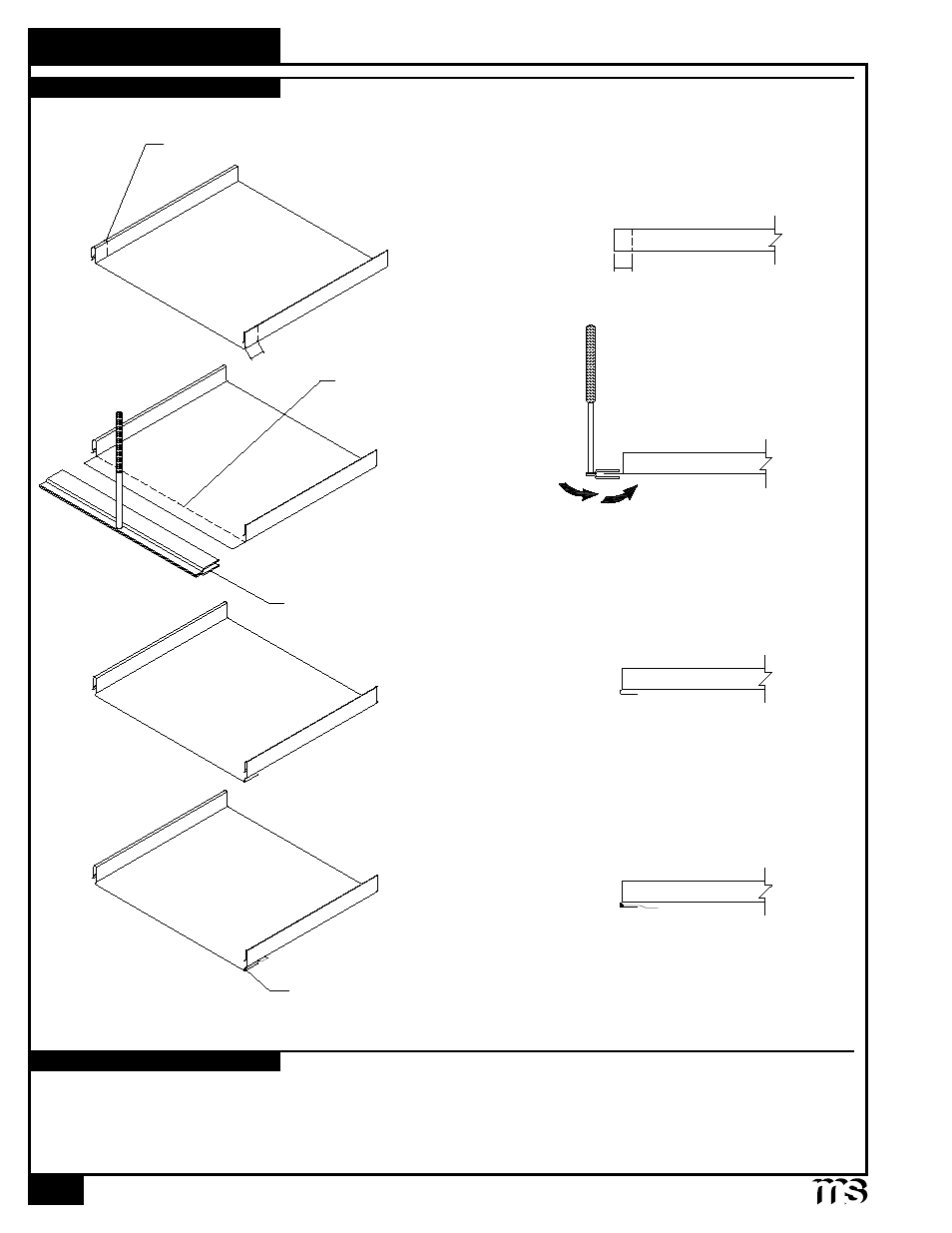

PANEL HEMMING
Field notch rib
Up to 1 1 /
2
"
Up to
1 1 /
2
"
Field bend flat part
of Panel to accept
Offset Cleat
Hemming Tool
Field apply Sealant in bend and slide Panel over Offset Cleat
FIELD HEMMING STEPS
