Ridge/hip detail vented ridge detail – Metal Sales Image II Installation User Manual
Page 32
© Metal Sales Manufacturing Corporation / Subject to change without notice, effective 6/2011
32

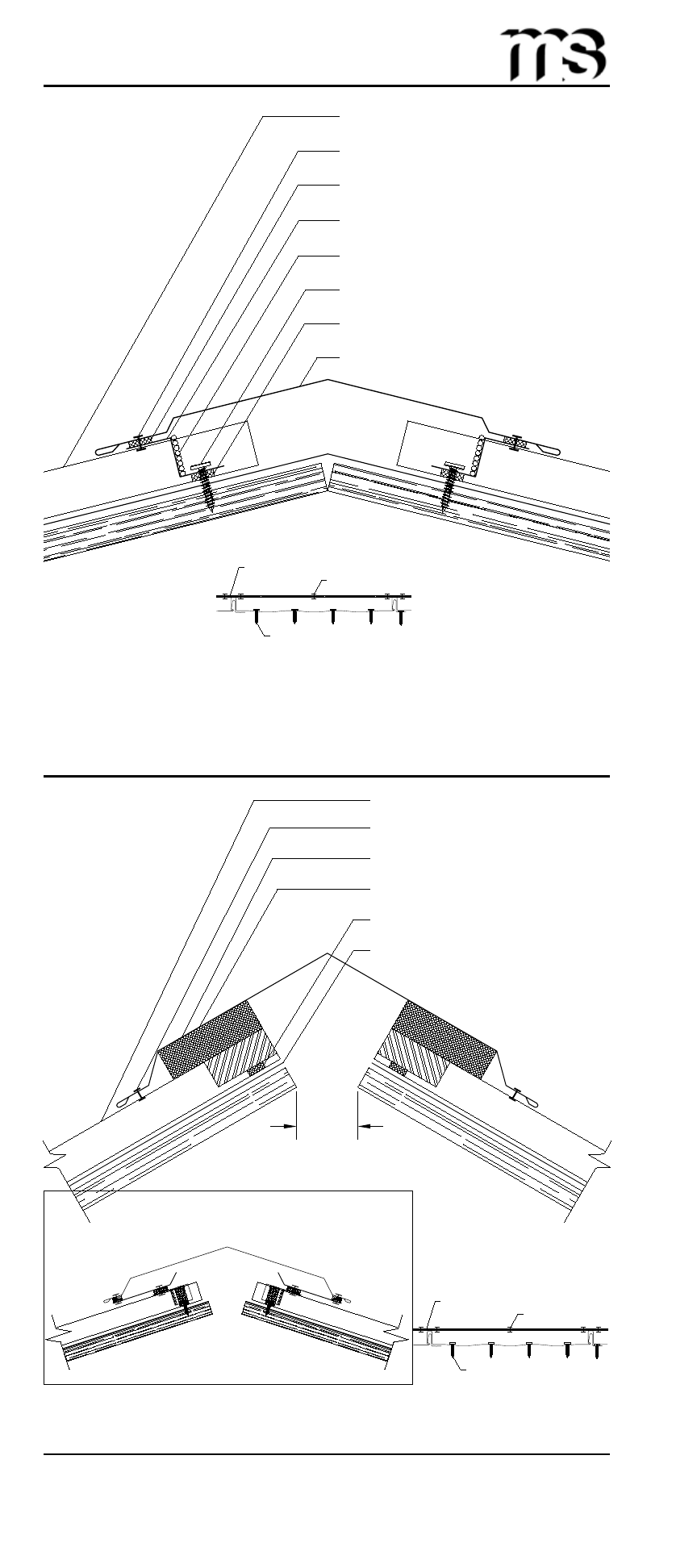

Ridge/Hip Detail
Vented Ridge Detail
Image II Panel (1)
Moisture Barrier
Pop Rivet, 1' o.c. (5)
Cobra Vent Material (3)
13" Ridge/Hip Cover (4)
Double Bead Tape
Sealant (2)
2" Max
Optional Vented Ridge
with Perforated Vent Drip
(X) Numbers indicate sequence of installation.
Image II Panel (1)
1" Z-Closure (3)
Tube Sealant (5)
Double Bead Tape Sealant (6)
Pop Rivet, 3 per panel (8)
Truss Head Woodscrew (4)
13" Ridge/Hip Cover (7)
Double Bead Tape Sealant (2)
(X) Numbers indicate sequence of installation.
Pop Rivet
Double Bead Tape Sealant
Truss Head
Woodscrew
Pop Rivet
Double Bead Tape Sealant
Truss Head
Woodscrew
