Standard flashings (cont.), Profile/ flashing, Eave – Metal Sales Image II Installation User Manual

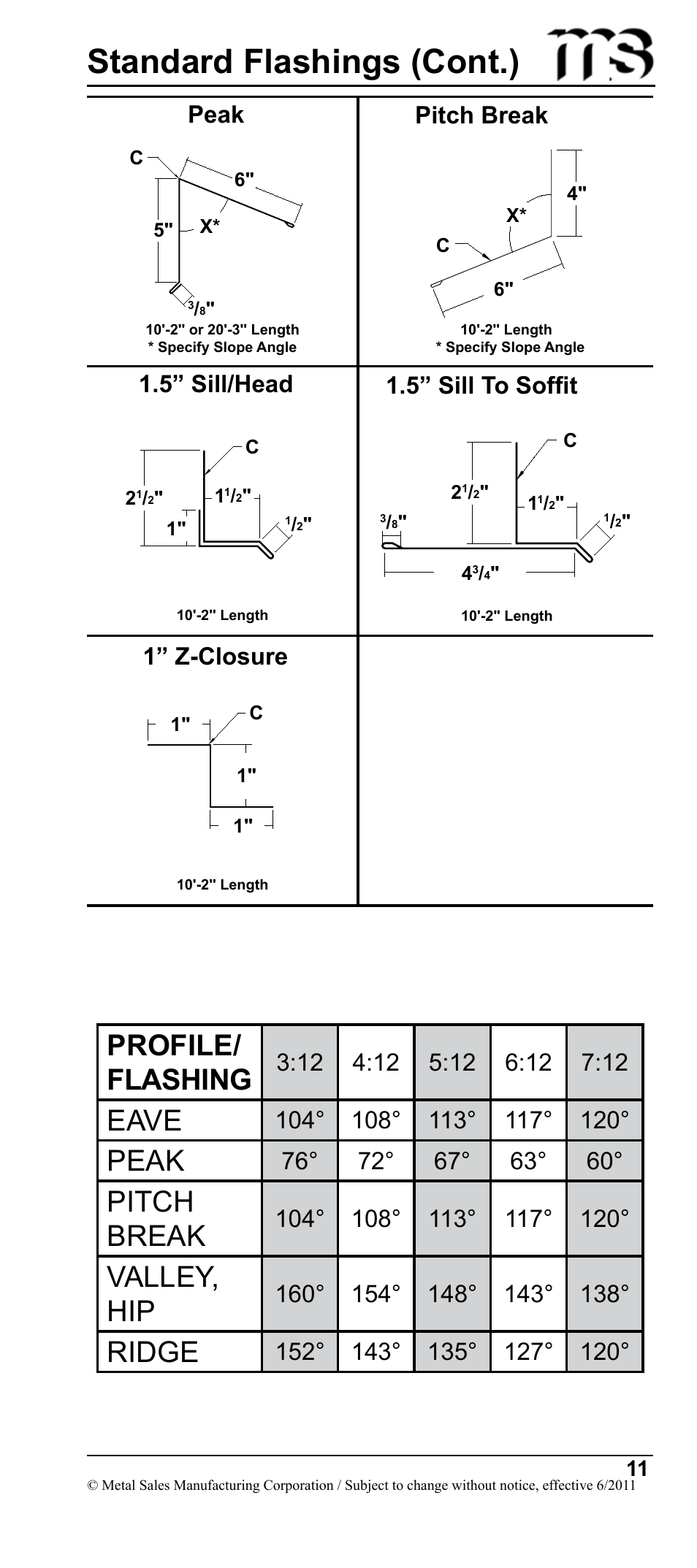

Page 11: Pitch break, Valley, hip, Ridge, Peak, Pitch break 1.5” sill/head 1.5” sill to soffit, 1” z-closure
