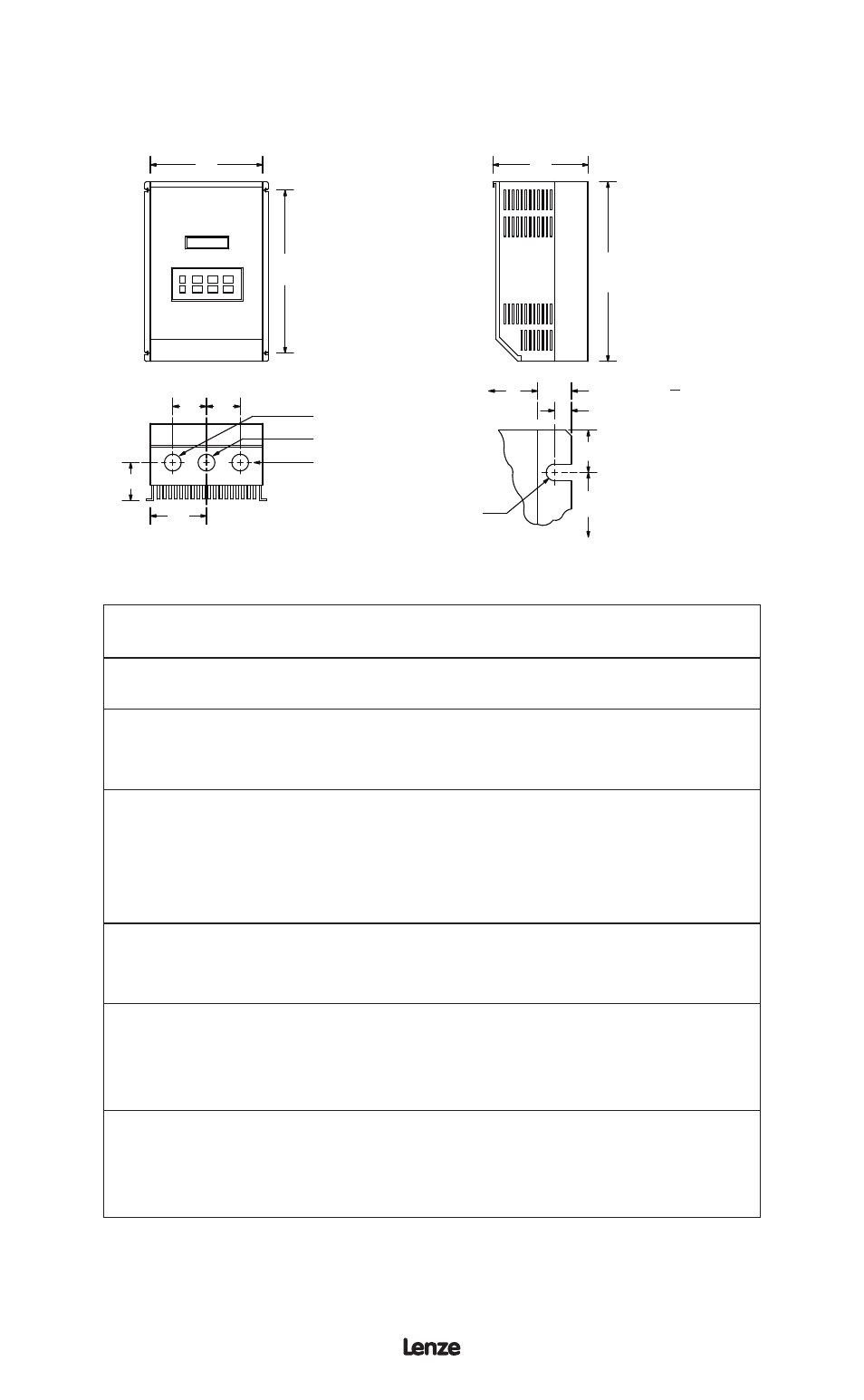

4 MC3000 DIMENSIONS
4 .1 CHASSIS AND TYPE 1 ENCLOSED
D
H
V
1 .00"
R
T
Mounting Tab Detail
Dia . Slot
R
W
P
N
Q Q
S Dia .
S Dia .
Conduit Holes:
0 .88" Dia .
W U
IF W < 7 .86"
T = 0 .20"
U = 0 .34"
V = 0 .19"
IF W = 10 .26"
T = 0 .28"
U = 0 .44"
V = 0 .24"
HP
(kW)
INPUT
VOLTAGE MODEL H W D N P Q R S
0 .25
(0 .18)
240 / 120 M3103S 7 .50 4 .70 3 .33 2 .35 1 .60 1 .37 5 .50 0 .88
0 .5
(0 .37)
240 / 120 M3105S 7 .50 6 .12 3 .63 3 .77 1 .80 1 .37 5 .50 0 .88
240 M3205S 7 .50 4 .70 3 .63 2 .35 1 .90 1 .37 5 .50 0 .88
240/200 M3205 7 .50 4 .70 3 .63 2 .35 1 .90 1 .37 5 .50 0 .88
1
(0 .75)
240 / 120 M3110S 7 .50 6 .12 4 .22 3 .77 2 .40 1 .37 5 .50 0 .88
240 M3210S 7 .50 4 .70 4 .33 2 .35 2 .60 1 .37 5 .50 0 .88
240 / 200 M3210 7 .50 4 .70 4 .33 2 .35 2 .60 1 .37 5 .50 0 .88
480 / 400 M3410 7 .50 4 .70 3 .63 2 .35 1 .90 1 .37 5 .50 0 .88
590 M3510 7 .50 4 .70 3 .63 2 .35 1 .90 1 .37 5 .50 0 .88
1 .5
(1 .1)
240/120 M3115S 7 .50 6 .12 4 .22 3 .77 2 .40 1 .37 5 .50 0 .88
240 M3215S 7 .50 6 .12 4 .22 3 .77 2 .40 1 .37 5 .50 0 .88
240/200 M3215 7 .50 4 .70 4 .33 2 .35 2 .60 1 .37 5 .50 0 .88
2
(1 .5)
240 M3220S 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
240 / 200 M3220 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
480/400 M3420 7 .50 6 .12 4 .22 3 .77 2 .40 1 .37 5 .50 0 .88
590 M3520 7 .50 6 .12 4 .22 3 .77 2 .40 1 .37 5 .50 0 .88
3
(2 .2)
240 M3230S 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
240 / 200 M3230 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
480 / 400 M3430 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
590 M3530 7 .50 6 .12 5 .12 3 .77 3 .30 1 .37 5 .50 0 .88
