13435743_EDBM301_v14 .0 7

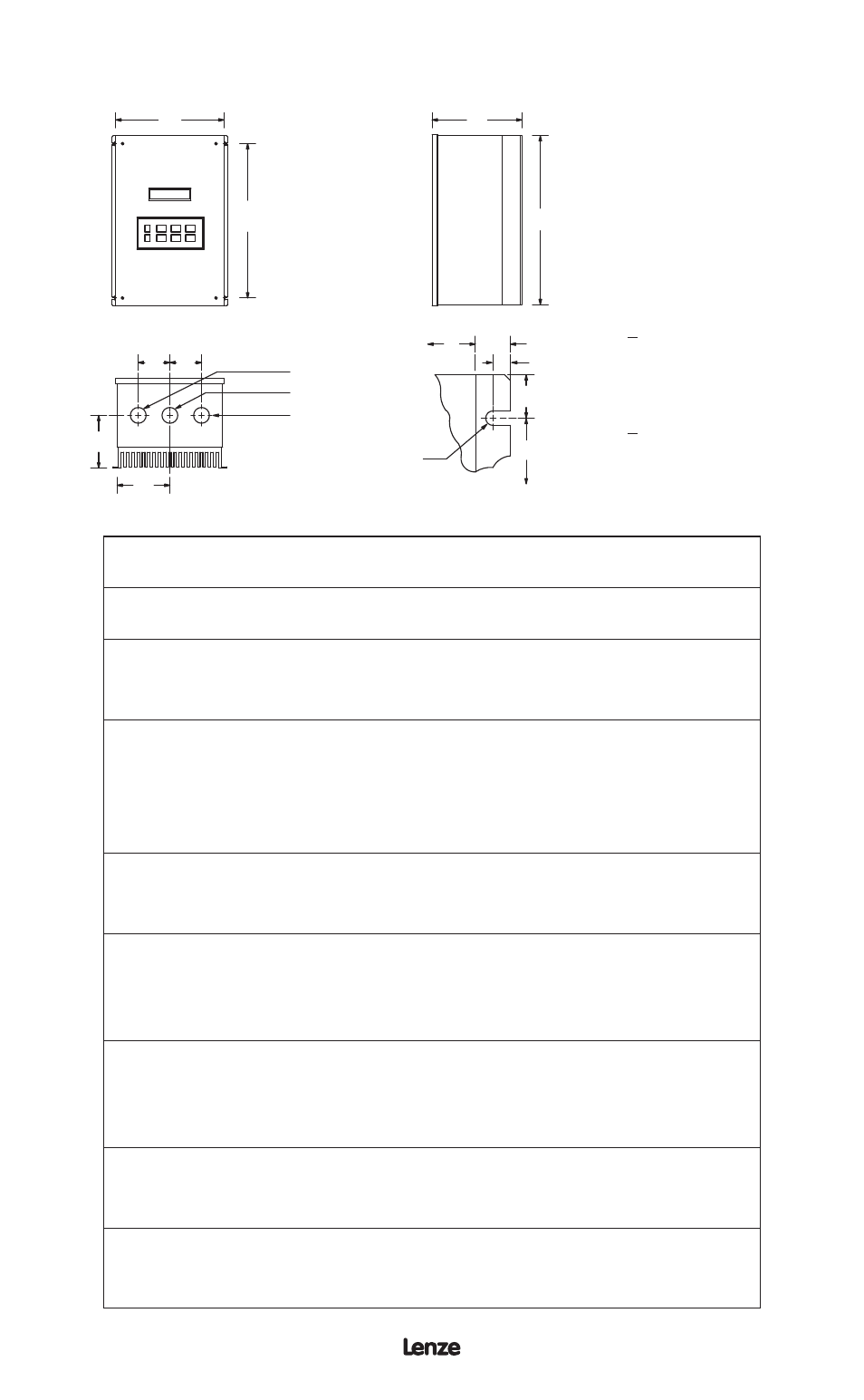

4 .2 TYPE 4, 4X, AND 12 ENCLOSED
1 .00"
W
H
R
T
D
Mounting Tab Detail
V
Dia . Slot
Conduit Holes:
S Dia .
0 .88" Dia .
S Dia .
N
P
Q Q
R
W
U
IF W < 7 .86"
T = 0 .20"
U = 0 .34"
V = 0 .19"
IF W > 10 .26"
T = 0 .28"
U = 0 .44"
V = 0 .24"
HP
(kW)
INPUT
VOLTAGE
MODEL H W D N P Q R S
0 .25
(0 .18)
240 / 120 M3103S 7 .88 6 .12 3 .63 3 .06 2 .00 1 .37 5 .88 0 .88
0 .5
(0 .37)
240 / 120 M3105S 7 .88 7 .86 3 .75 4 .80 2 .10 1 .37 5 .88 0 .88
240 M3205S 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
240/200 M3205 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
1
(0 .75)
240 / 120 M3110S 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
240 M3210S 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
240 / 200 M3210 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
480 / 400 M3410 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
590 M3510 7 .88 6 .12 4 .35 3 .06 2 .70 1 .37 5 .88 0 .88
1 .5
(1 .1)
240/120 M3115S 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
240 M3215S 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
240/200 M3215 7 .88 6 .12 5 .25 3 .06 3 .60 1 .37 5 .88 0 .88
2
(1 .5)
240 M3220S 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
240 / 200 M3220 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
480/400 M3420 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
590 M3520 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
3
(2 .2)
240 M3230S 7 .88 7 .86 5 .90 4 .80 4 .25 1 .37 5 .88 0 .88
240 / 200 M3230 7 .88 7 .86 5 .90 4 .80 4 .25 1 .37 5 .88 0 .88
480 / 400 M3430 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
590 M3530 7 .88 7 .86 4 .90 4 .80 3 .25 1 .37 5 .88 0 .88
5
(3 .7)
240 / 200 M3250 9 .75 10 .26 7 .20 5 .13 5 .25 2 .00 7 .75 1 .13
480 / 400 M3450 7 .88 7 .86 5 .90 4 .80 4 .25 1 .37 5 .88 0 .88
590 M3550 7 .88 7 .86 5 .90 4 .80 4 .25 1 .37 5 .88 0 .88
7 .5
(5 .5)
240 / 200 M3275 11 .75 10 .26 8 .35 5 .13 5 .75 2 .00 9 .75 1 .13
480 / 400 M3475 9 .75 10 .26 7 .20 5 .13 5 .25 2 .00 7 .75 1 .13
590 M3575 9 .75 10 .26 7 .20 5 .13 5 .25 2 .00 7 .75 1 .13
