Data transfer
Configuration of the parameter data channel (PCP communication)
7
Feldbus-Baugruppe 2113 INTERBUS
7.6
7.6.8
L
7.6-52 EDSIBS-1.0-06/2003

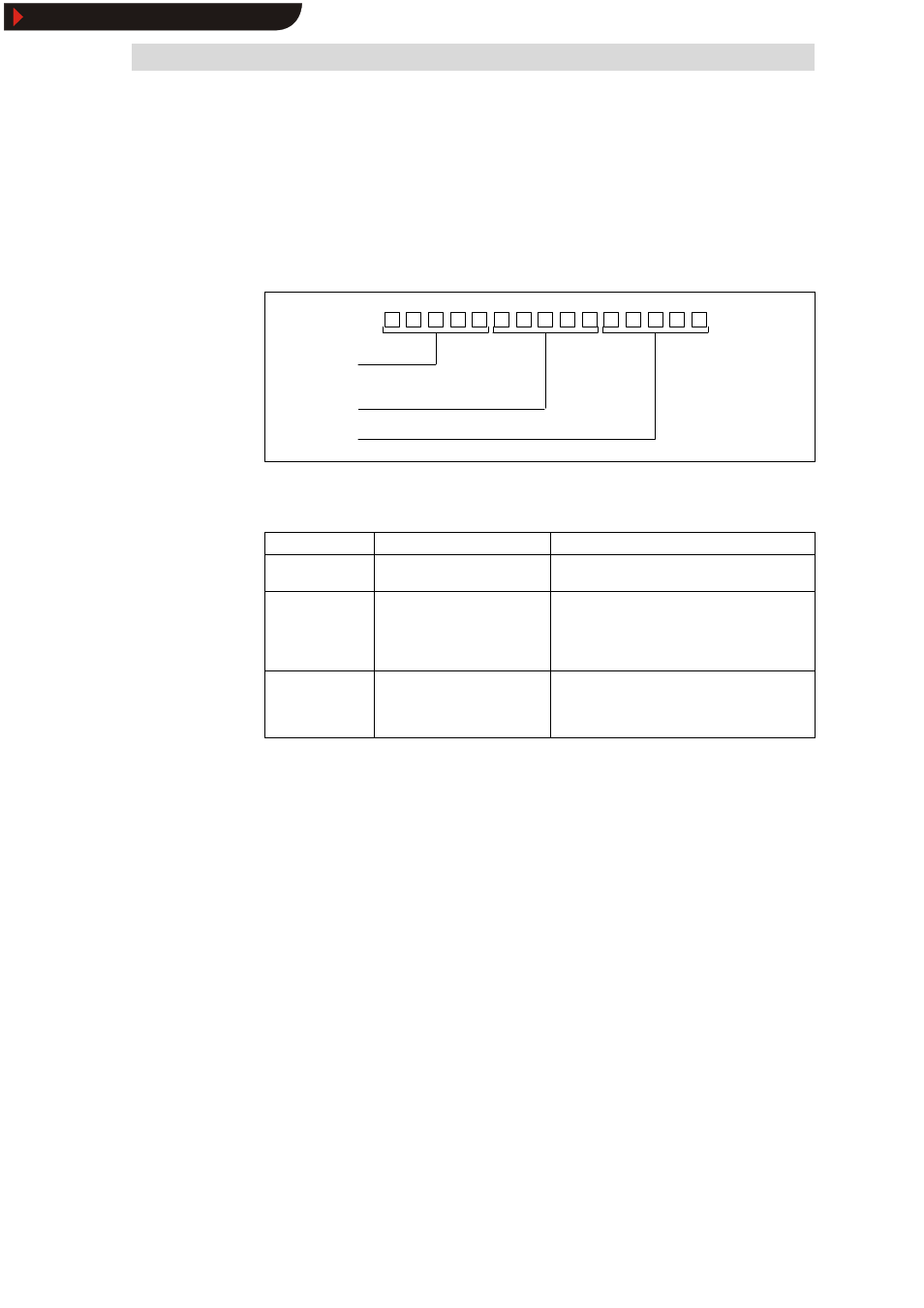

Example:
For a 8200 controller 8201 (version V2.1; without variant and variant version) with
fieldbus module (version V1.0; without variant and variant version): ” 2100010000“
sáëáÄäÉ лнкбеЦ
`зенкзддЙк оЙклбзе
_~лбЕ мебн
`зенкзддЙк оЙклбзе
cáÉäÇÄìë гзЗмдЙ
_д~ев
2 1 0 0 1 0 0 0 0 0
N S NN NR
The PCP service ” Status“ informs about the controller status.
The controller returns the following parameters:
Status Value Meaning
Logical status 0 = ready to communicate Information about the current operating mode
(L-C0001) of the controller concerning communication
Physical status • 0 = ready for operation
Controller status ”OPERATION
ENABLED“
• 1 = partly ready for operation
All other controller states
Information about the current operating state of the
controller.
For the controller status see
^ 7.6-30.
Local detail Parameter ”Status word“ 24-bit value comprising:
• Bit 0 to 15: Profile parameter ”Status word“
(Index = 6041
hex
)
• Bit 16 to 23: value 0
Status 46
