Figure 3-5: shank, clamp, and sweep assembly – Landoll 875 Series Tilloll User Manual
Page 22
3-6
F-60-0210 Edition
ASSEMBLY INSTRUCTIONS

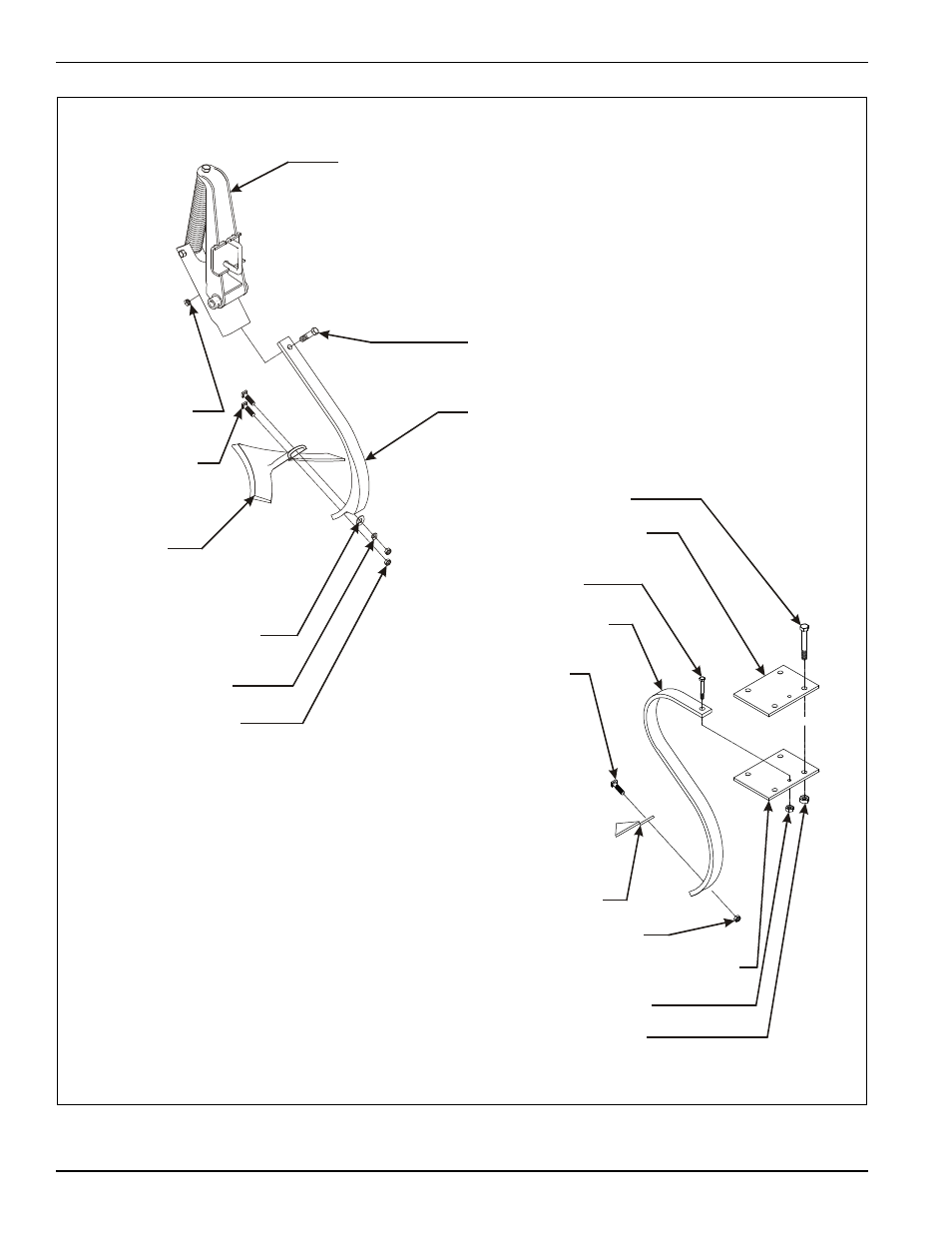

Figure 3-5: Shank, Clamp, and Sweep Assembly
SPRING CLAMP ASSEMBLY
CENTER CLAMP ASSEMBLY
m109637
SPRING CLAMP ASSEMBLY
5/8-11 X 1-3/4 ROUND HEAD
SQUARE NECK SCREW
SHANK
5/8-11 X 6-1/2 HEX
HEAD CAP SCREW
MOUNTING BRACKET
1/2-13 X 2 HEX HEAD
CAP SCREW
CENTER SHANK
3/8-16 X 1-1/2
PLOW BOLT
DANISH SWEEP
3/8-16 HEX LOCK NUT
CENTER SHANK MOUNTING PLATE
1/2-13 HEX LOCK NUT
5/8-11 HEX LOCK NUT
5/8-11 HEX
LOCK NUT
7/16-14 X 1-1/2
PLOW BOLT
SWEEP
7/16 FLAT WASHER
7/16 SPLIT
LOCK WASHER
7/16-14 HEX NUT
