Page - 33

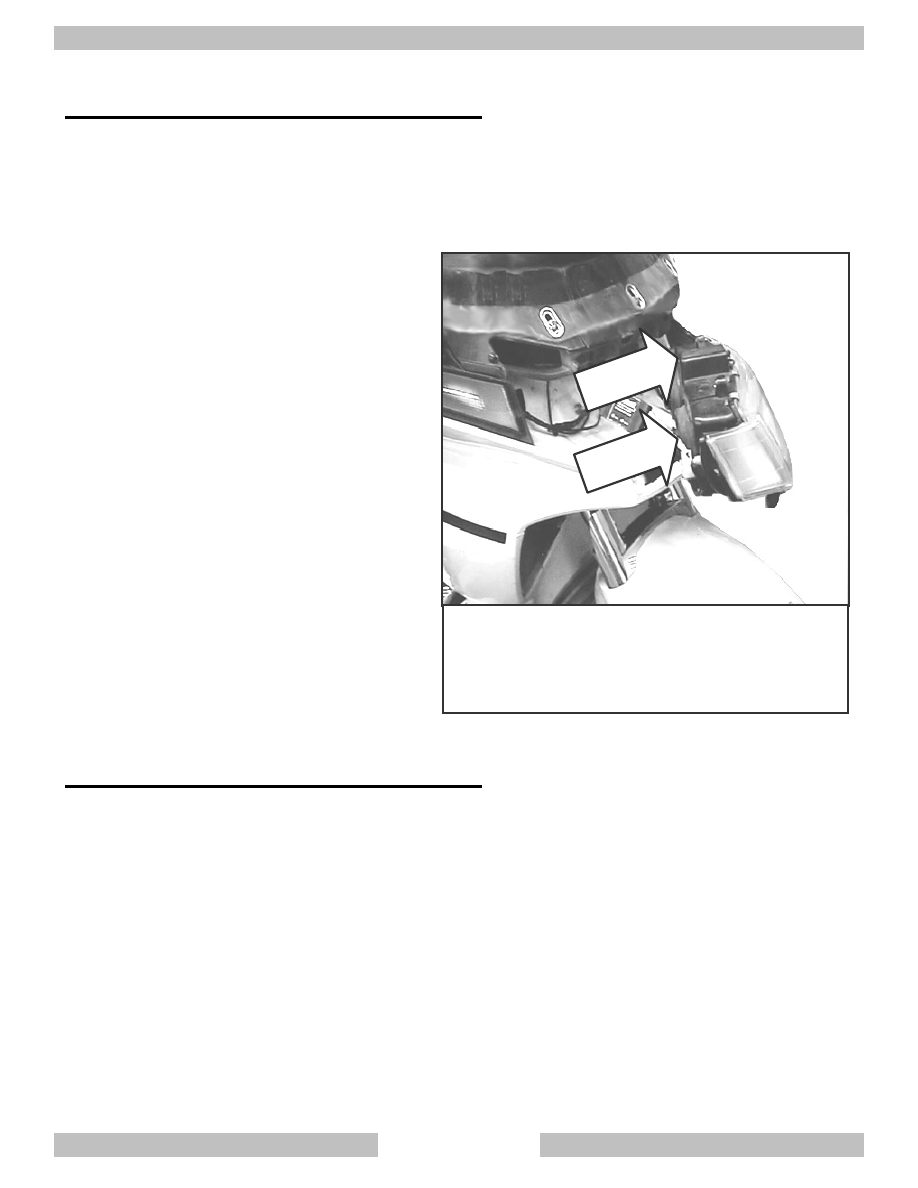

Heavy-duty dual channel unit plugs
directly on the back of each of the
headlight bulbs
Gold Wing-1500 INSTALLATION: P115W-D
Please refer to the instructions in the 150GW pathBlazer section for the
(3) Step removal procedure to gain access to the back of the headlight
assembly.
Install both Master and Slave
pathBlazer units on the
headlight bulbs then re-install
the 3-pin sockets. Insert the
connector end of the Synch
wire from the Slave unit in to
the 3
rd
empty position of the
Sensor Plug – as shown for
the P115W-D pathBlazer.
Then plug the Daylight Sensor
in the Master Unit. The ‘eye’ of
the Daylight Sensor can be
flush mounted or zip-tied.
Gold Wing-1200 INSTALLATION:
P115W-S
For GL1200 with single head light bulb assembly, the (3) Step removal
procedure is similar to the GL1500. Please refer to the instructions in the
150GW pathBlazer section for removing the chrome facia and unbolting
the headlight assembly.
Installation is simple: Unplug the headlamp, insert pathBlazer, and then
re-connect the plug on the 3-pin extension. Next, feed the Daylight Sensor
through the opening in the bulkhead toward the left speaker. Daylight
Sensor can be flush mounted or zip-tied.
