Det-Tronics U9500 Infiniti Gas Transmitter User Manual
Page 16

95-8444
14
10.1
SENSOR INPUT READING
B2374
}
INCREASE PUSHBUTTON
SETUP/ACCEPT PUSHBUTTON
CAL/RESET MAGNETIC REED SWITCH
(ACTIVATED BY HOLDING CAL MAGNET TO THIS SIDE OF TRANSMITTER
APPROXIMATELY TWO INCHES DOWN FROM THE WINDOW)
DECREASE PUSHBUTTON
ALARM STATUS INDICATORS
ALARM HISTORY INDICATOR
LO
DECREASE
INCREASE
ACCEPT
CAL/RESET
SETUP
AUX
ALARM
HI

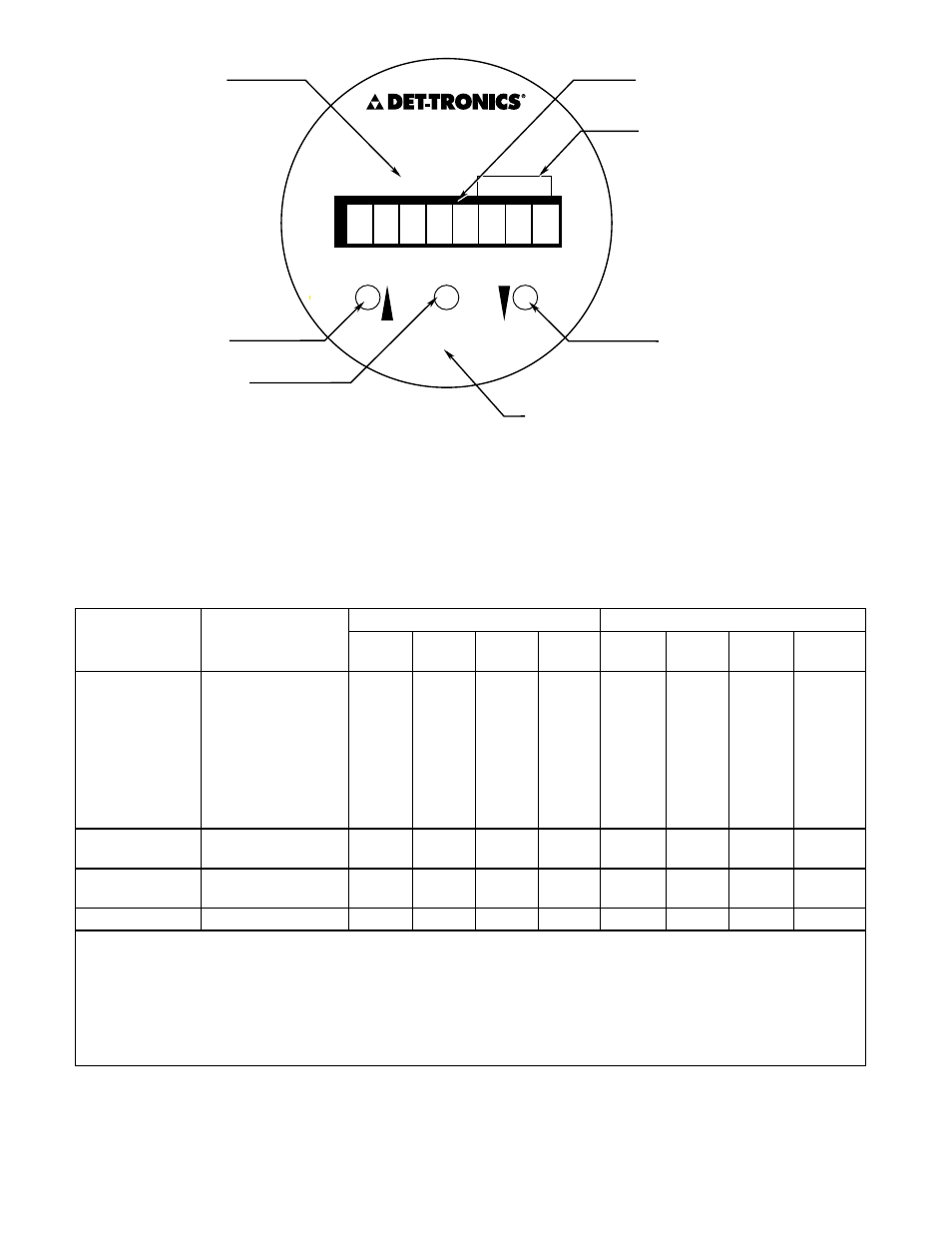

Figure 18—Infiniti Transmitter Controls and Indicators
Table 5—Range Select Settings And Corresponding Default Settings
Default Settings ***
Range Limits
Sensor
Type
Measurement
Range
High
Low
Aux
Cal
Gas
High
Low
Aux
Cal
Gas
Electrochemical
Toxic *
0-10 ppm
2
1
2
5
1-9
0.5-5
0.5-9
3-9
0-20 ppm
4
2
4
10
1-18
0.5-10
0.5-18
6-18
0-50 ppm
10
5
10
25
2-45
1-25
1-45
15-45
0-100 ppm
20
10
20
50
10-90
5-50
5-90
30-90
0-200 ppm
40
20
40
100
20-190
5-100
5-190
60-180
0-500 ppm
100
50
100
250
50-450
25-250
25-450
150-450
0-1000 ppm
200
100
200
500
100-900
50-500
50-900
300-900
Catalytic
Combustible
0-100 % LFL (Fixed)
50
20
50
50
10-60
5-50
5-90
30-99
PointWatch
(HC)
0-100 % LFL (Fixed)
50
20
50
50
10-60
5-50
5-90
50
Oxygen **
0-25% (Fixed)
23
18
18
20.9
22-25
16-20.5
5-25
8-23.5
* Changing the Toxic Measurement Range will reset all alarms and the Cal Gas to the default setting for the selected range.
** For oxygen deficient applications, use the LOW and/or AUX alarms.
For oxygen enrichment applications, use the HIGH and/or AUX alarms.
*** Default settings for all Infiniti relay operation is normally de-energized with non-latching contacts (except fault alarm, which is normally
energized with no faults). Default settings for optional External Reset Pushbutton is “No External Cal” enabled.
Default settings for calibration mode (automatic or manual) is automatic mode. Manual calibration mode is recommended when using the
U9500D chlorine or U9500F Sulfur Dioxide Transmitters.
