Control Instrument
(Tools needed: one-quarter (¼) inch socket set screwdriver with Torx drive)
1. Disconnect power.
2. Remove screws from the face of the control panel and slide it forward.
3. Remove wires from the old control instrument, noting which wires connect to
which terminals.

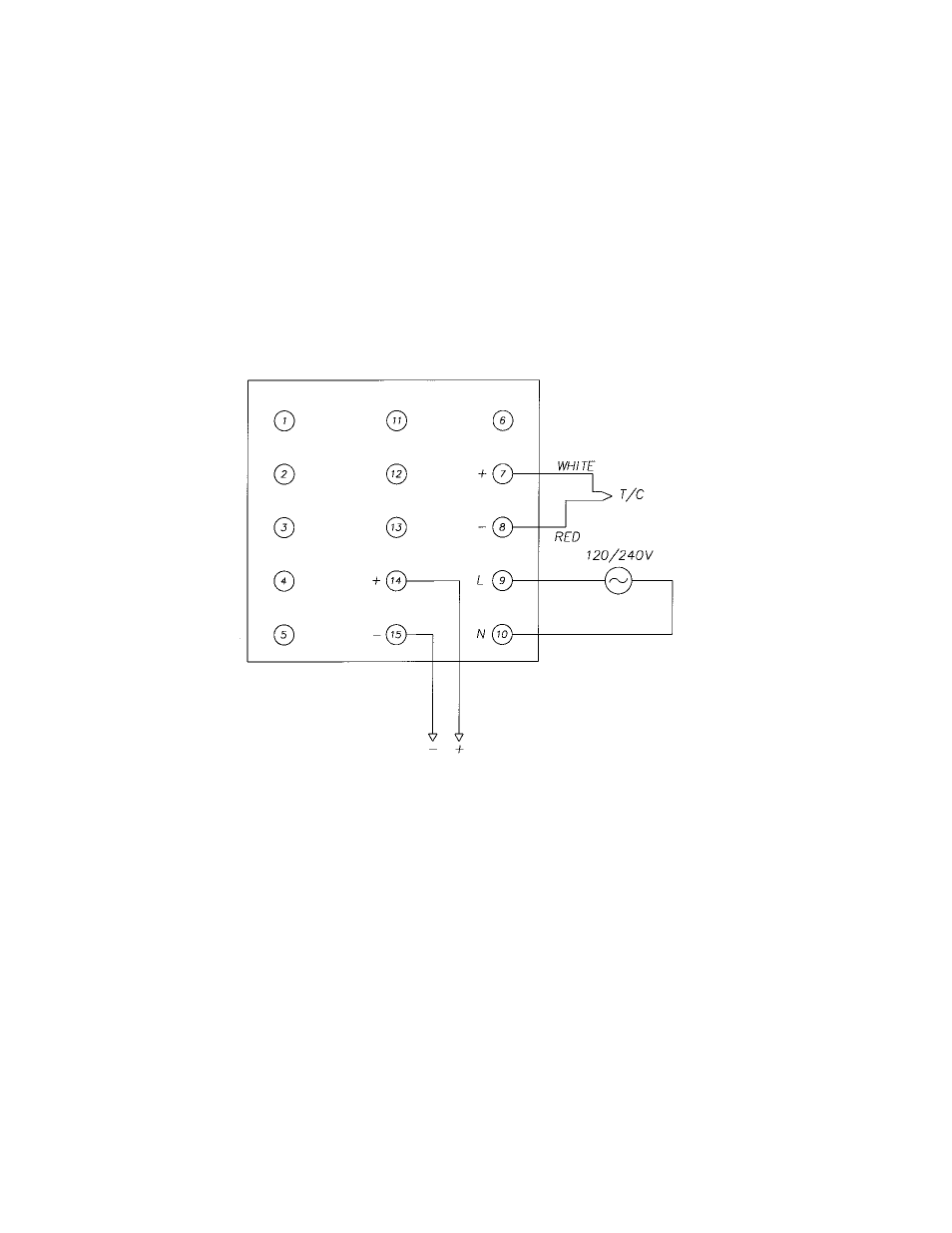

Connections to the CONTROL Instrument
4. Disconnect the CONTROL mounting bracket.
5. Remove old CONTROL instrument from control panel.
6. Install new CONTROL instrument into the control panel.
7. Secure CONTROL with mounting bracket.
8. Reattach wires to the new CONTROL instrument. Make sure that the wires
are connected correctly.
9. Replace control panel.
