6
CONTROL Instrument
The oven is equipped with a microprocessor based digital control instrument. The
Despatch CONTROL instrument has been configured as a proportional controller and
set to its optimum operating values. Initially, the CONTROL will allow the heater to
operate at full power. However; as the actual oven temperature reaches the setpoint,
the Proportional Control will cycle the heater on and off, minimizing process
temperature fluctuations.

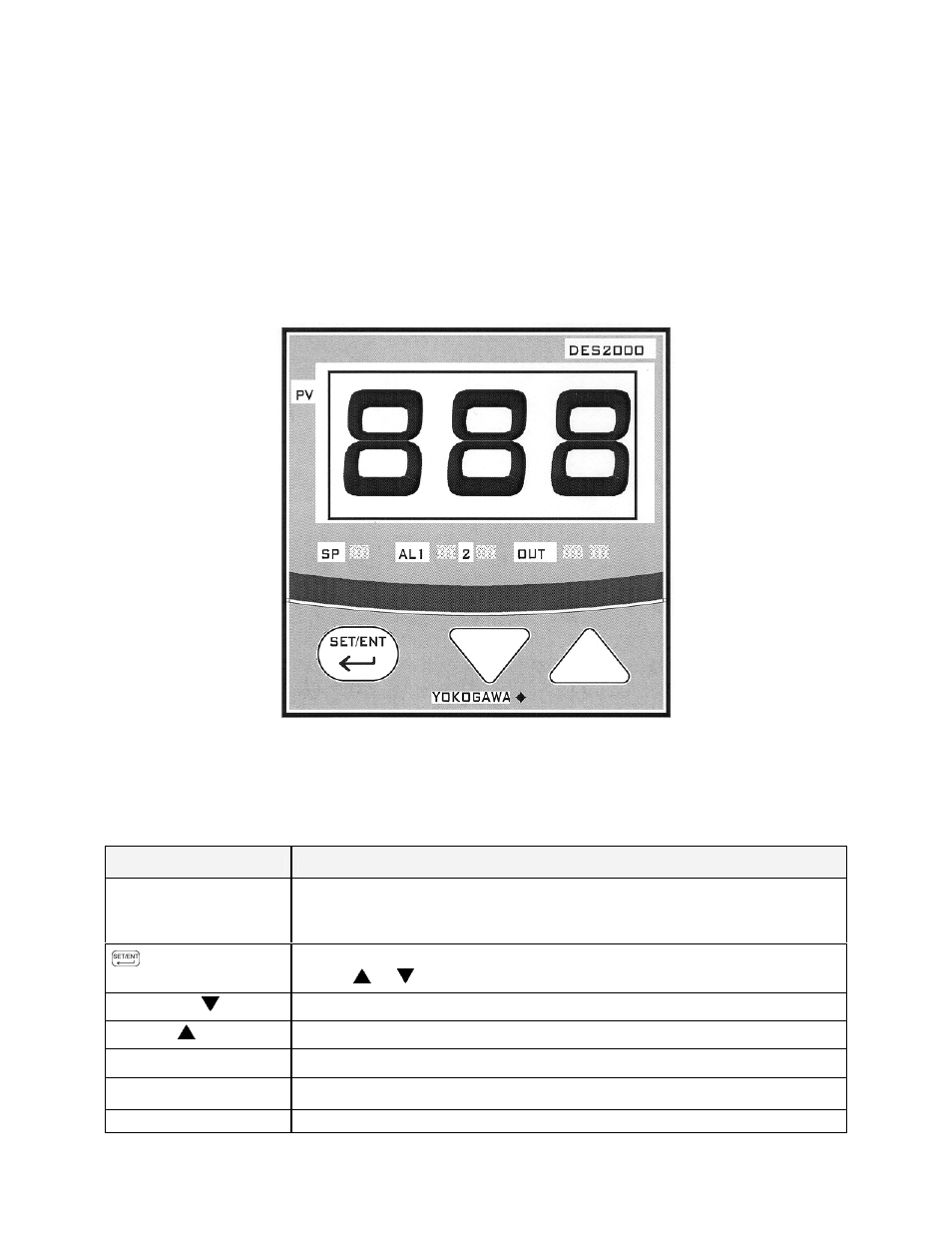

CONTROL Instrument
CONTROL Instrument Features
Features Description
Main (PV) Display Displays the actual oven temperature or displays the setpoint
when the set key is pressed. Displays parameter code and
value.
Key
Switches between PV and SP displays. Enters the data changed
by the or keys. Switches through parameter displays.
Down Key Decreases a setpoint or setup parameter.
Up Key Increases a setpoint or setup parameter.
LED SP Indicator Lights when the setpoint value is displayed.
LED OUT Indicator Lights when the control is calling for heat.
LED AL1 –2 Indicator N/A
