7
HI-LIMIT Instrument
The oven is equipped with a HI-LIMIT instrument. The purpose of the HI-LIMIT
instrument is to provide a protective measure for the product and/or the oven itself. If
the setting on the HI-LIMIT is exceeded, the heating process will discontinue, thus
protecting the product and/or the oven.
Set the HI-LIMIT instrument to a temperature 10°C - 14°C higher than the CONTROL
instrument setpoint or a temperature that should not be exceeded in the process. If the
setting on the HI-LIMIT instrument is exceeded the heater will shut down. The HI-LIMIT
instrument must be manually reset by pushing the RESET button on the HI-LIMIT
instrument.

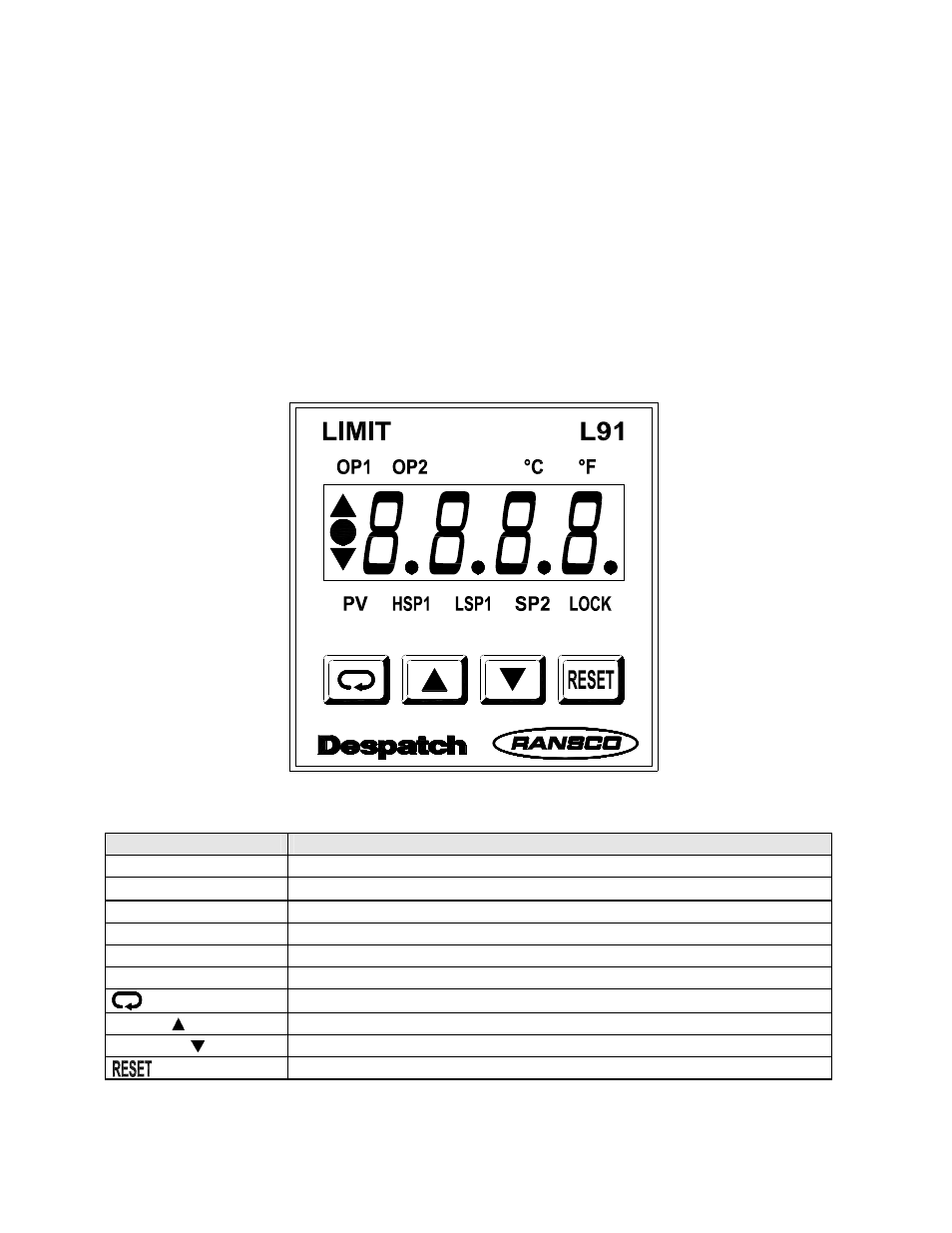

HI-LIMIT Instrument
Features Description
OP1 Output 1 status value. (OP2 normally not used for LBB Ovens).
°
C/
°
F Degree indicator.
PV Process value.
HSP1 High limit setpoint 1. (LSP1 normally not used for LBB Ovens).
SP2 Setpoint 2 for output 2 (normally not used for LBB Ovens).
LOCK Lock status indicator.
Scroll Key, used for advancing available displays.
Up Key Increases a setpoint or mode parameter.
Down Key Decreases a setpoint or mode parameter.
Reset the high limit, return to normal display.
