System Map: Left View 1 - 13
Quick Start Guide
1

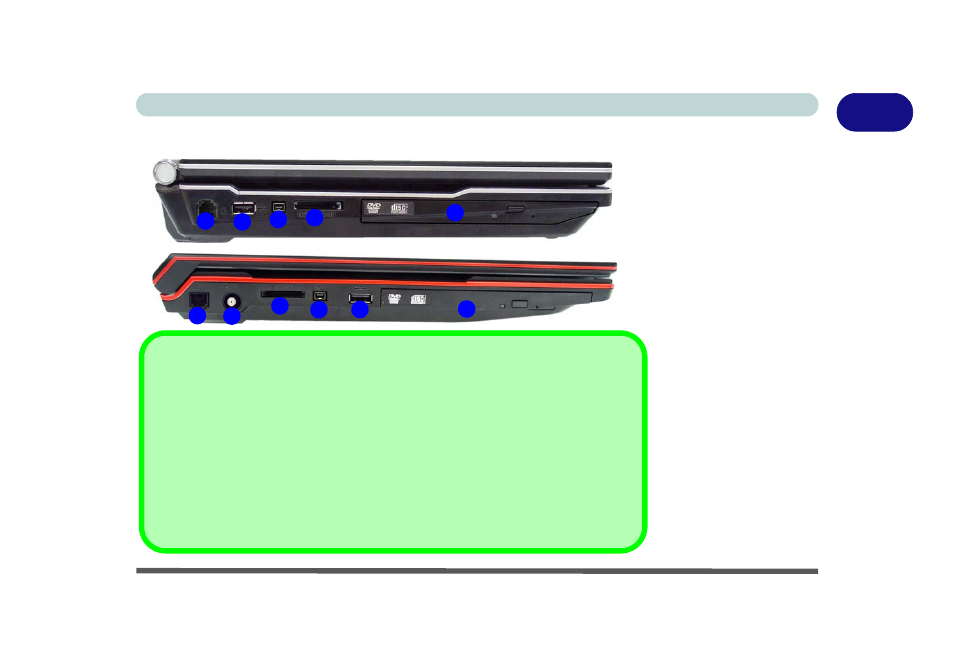

System Map: Left View
Figure 1 - 5
Left View
1. RJ-11 Modem Jack
2. USB 2.0 Port
3. Mini-IEEE 1394
Port
4. 7-in-1 Card Reader
5. Optical Device
Drive Bay (for DVD
Device)
6. Cable (CATV)
Antenna Jack
*
*Enabled with Optional TV
Tuner Only
6
2 3
1
5 4
7-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices. Make sure
you install the Firewire IEEE 1394 driver (see page
4 - 6 ).
5
Model A
Model B
1 2 3 4
