Upgrading The Computer
Upgrading the Hard Disk Drive(s) 6 - 7
6

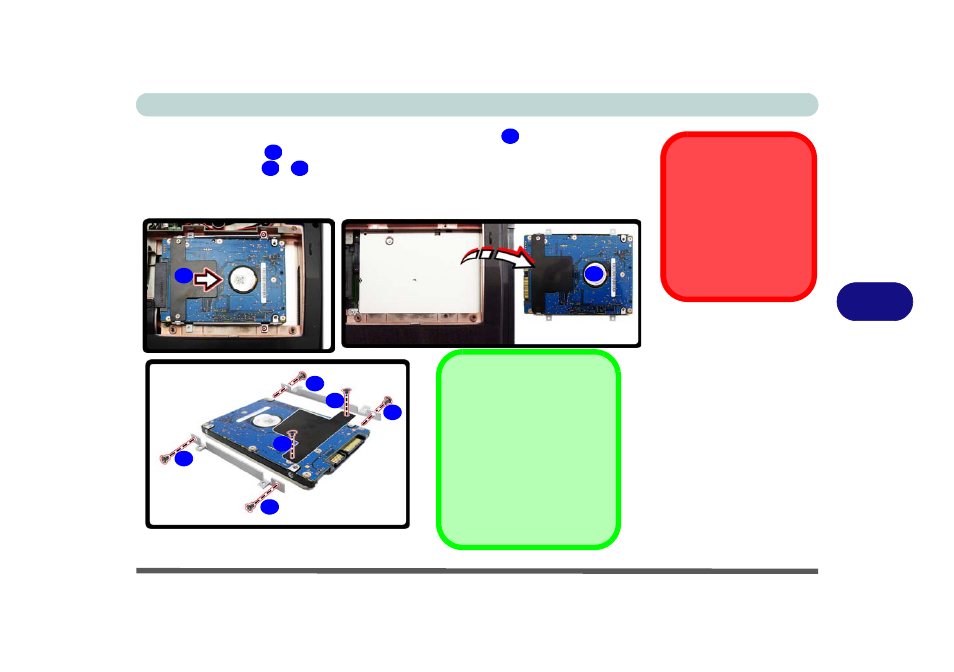

4. Slide the hard disk assembly in the direction of the arrow .
5. Lift the hard disk out of the compartment.
6. Remove screws - to separate the hard disk from the brackets.
7. Reverse the process to install a new hard disk drive (do not forget to replace all the
screws and covers). RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.
Figure 6 - 5
Secondary HDD
Removal
13
14
15 20
13 14
20
19
16
15
17
18
Hard Disk Screws & Cover
The hard disks and covers pic-
tured here may appear slightly
different from your model design
(these designs are subject to
change and upgrade without no-
tice). Pay careful attention to the
screws and cover bracket orien-
tation.
