4 network settings, Network settings – Atop Technology SW550XC User manual User Manual
Page 27

Industrial Wireless Serial Device Server Series
SW550xC User Manual V 1.0
22
4.4 Network Settings
The SW550xC series has the ability for dual connections, i.e., WLAN and LAN at the same
time. It can also get IP information automatically from a DHCP server as well, just check
“Obtain an IP Address Automatically” for it; or enter the values manually if known.
Gratuitous ARP
– Enable to periodically send out an ARP response automatically to
announce that SW550xC is in the network. The frequency in minutes could be set in the
nearby box.
Note that under the Wireless Client mode, you will see two separate interfaces, LAN and
WLAN. You need to configure them separately into different subnets and choose the interface
that should be the Default Gateway, Figure 4.9.

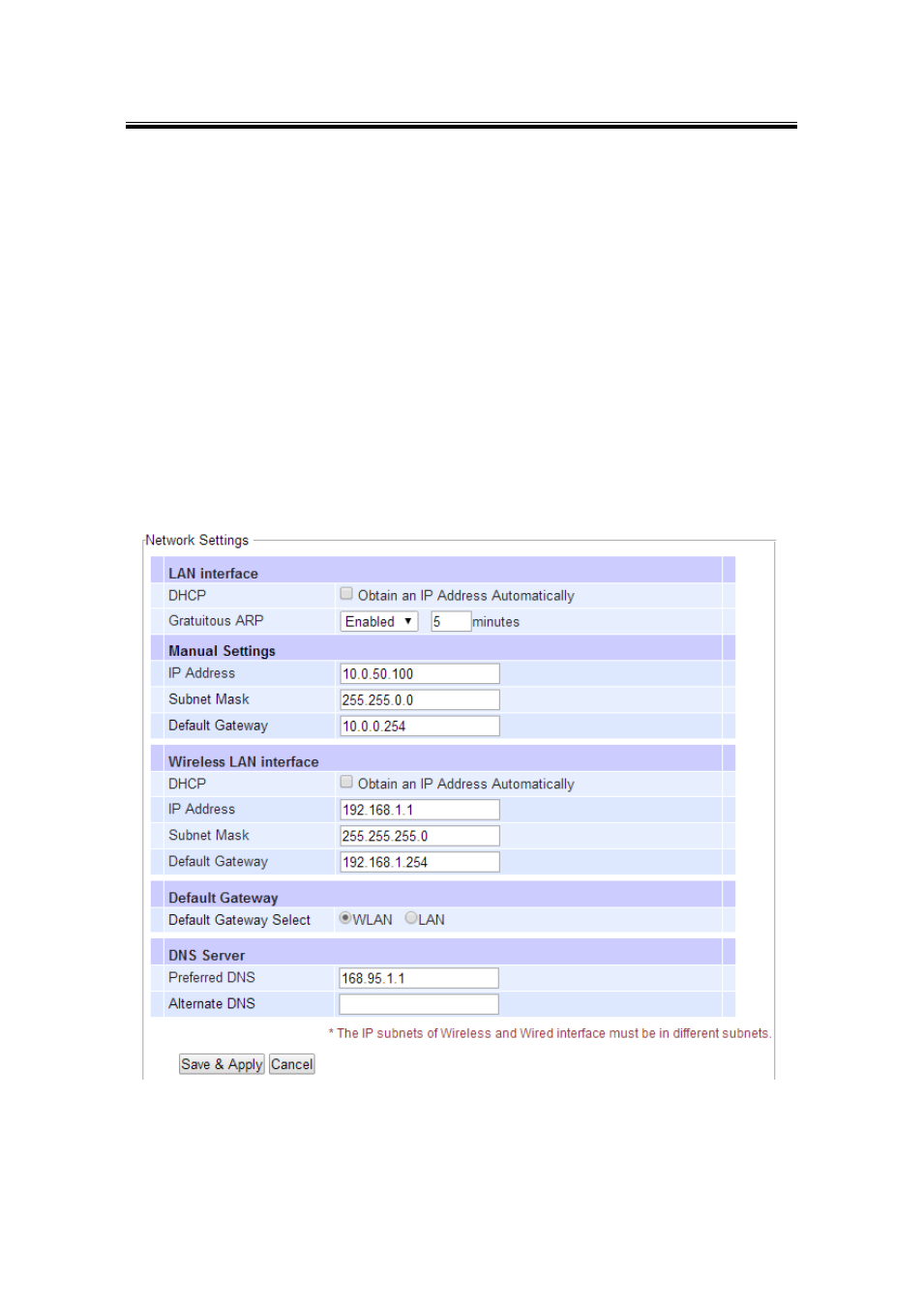

Figure 4.9
