IRU Series

Rev. B1 3/10

36

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

• IRU-9400 Series Specifications

Detection Range: 0.5 to 35 ft. (0.15 to 10.67 m)

Outputs:

4-20 mA

4-20 mA + (2) NPN Trip Points (300 mA max.)

0-2.5 Vdc or 0-5 Vdc (software selectable)

Operating Voltage: 12-28 Vdc

Programming Voltage: 15-28 Vdc (RST), 12-28 Vdc (RS-232)

Operational Current Draw (without communications): 60 mA @ 24 Vdc

Maximum Power Rating: 2.5 W

Housing: Polycarbonate/PET blend

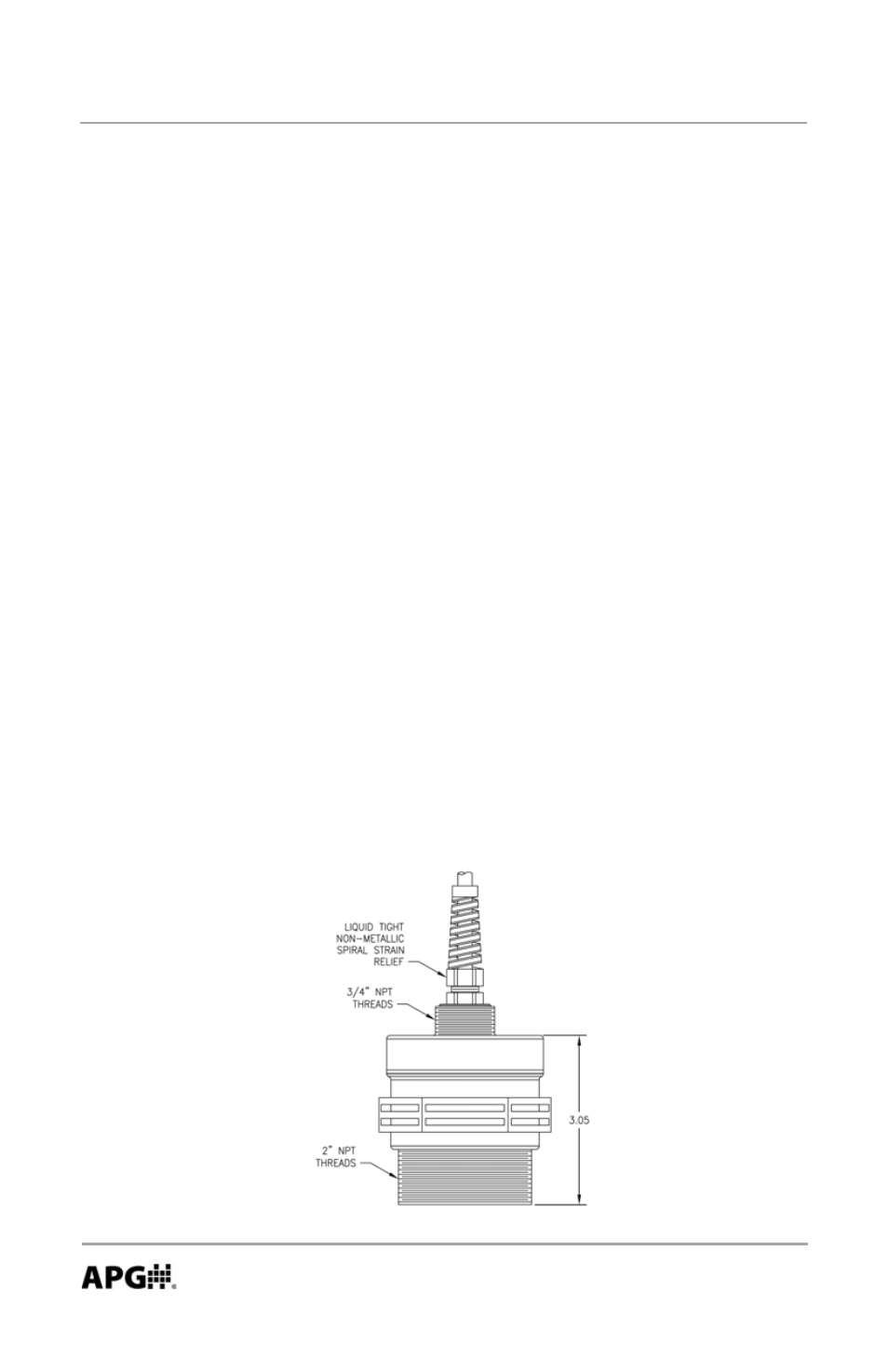

Mounting: 2 in. NPT (front), 3/4 in. NPT (rear)

Transducer Type: Electrostatic

Ingress Rating: NEMA 12

Approvals: CSA C/US General Purpose

Sample Rate: 1 to 22 Hz (programmable)

Response Time: Programmable (45 ms minimum)

Resolution: 0.1 in. (2.5 mm)

Accuracy: +/- 0.25% of detected range (with no temperature gradient)

Sensor Adjustments: USB (requires RST-3001) or RS-232 (IRU-9429S only)

Operating Temperature: -40 to 140

0

F (-40 to 60

0

C)

Beam Pattern: 9

0

off-axis (at maximum pulses and sensitivity settings)

Electrical Connection: Pigtail or micro-connector

Frequency: 50 kHz
