IRU-21xx

IRU-200x

IRU-24xx

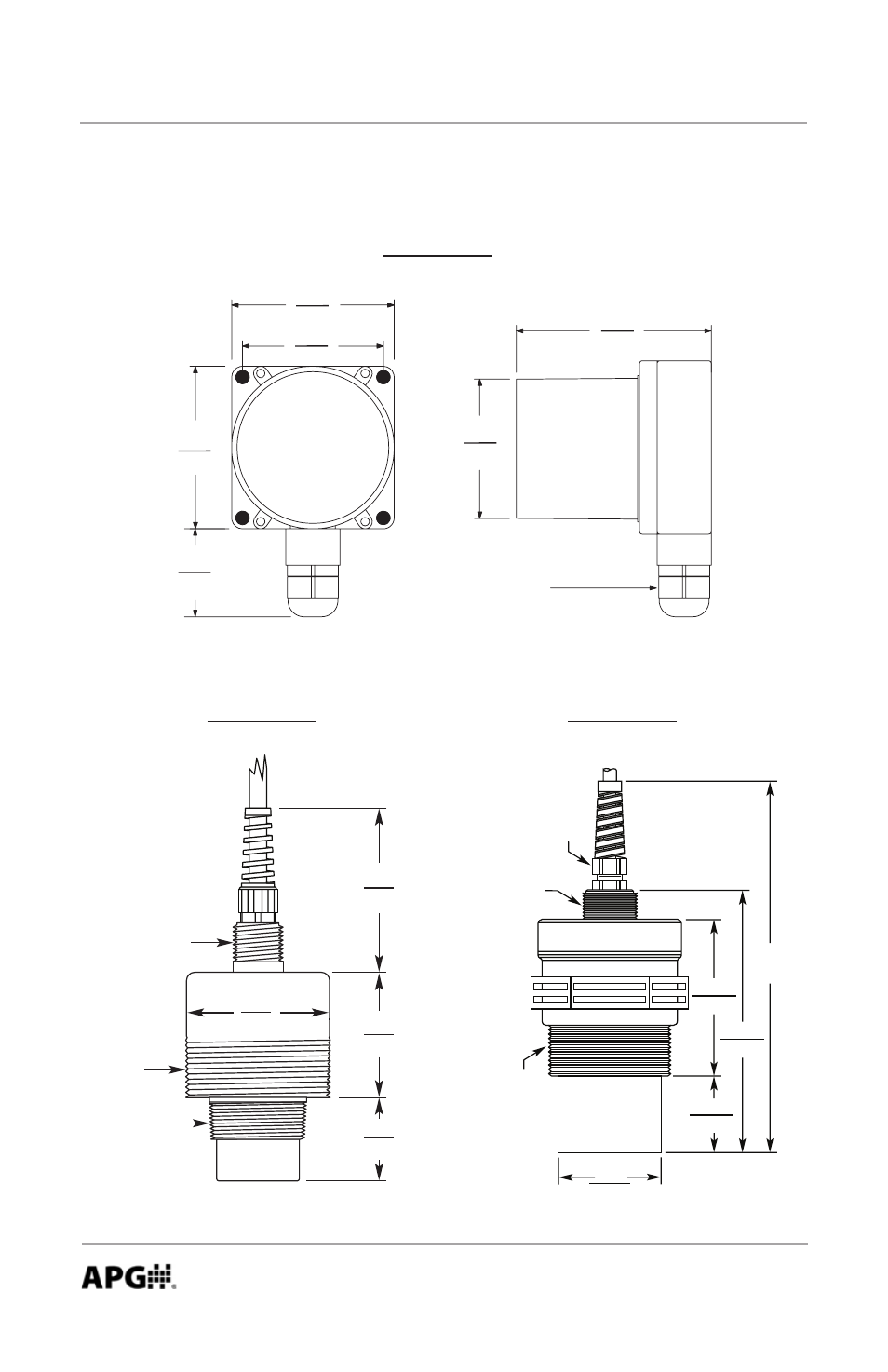

IRU-2000 Series Dimensions -- in./mm

3.25

83.6

2.60

66

3.25

83.6

1.63

41.4

3.10

78.7

2.50

63.5

Liquid Tight

Strain Relief

7.23

183.64

5.10

129.54

3.05

77.47

1.49

37.84

1.99

50.54

Liquid Tight

Non-Metallic

Spiral Strain

Relief

2" NPT

Threads

3/4" NPT

Threads

3" NPT

2" NPT

1" NPT

3.75
95.3

3.00

76.2

2.00
50.8

3.50
88.9
