Rev. B1, 3/10

IRU Series

19

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

• Using the Utility Software

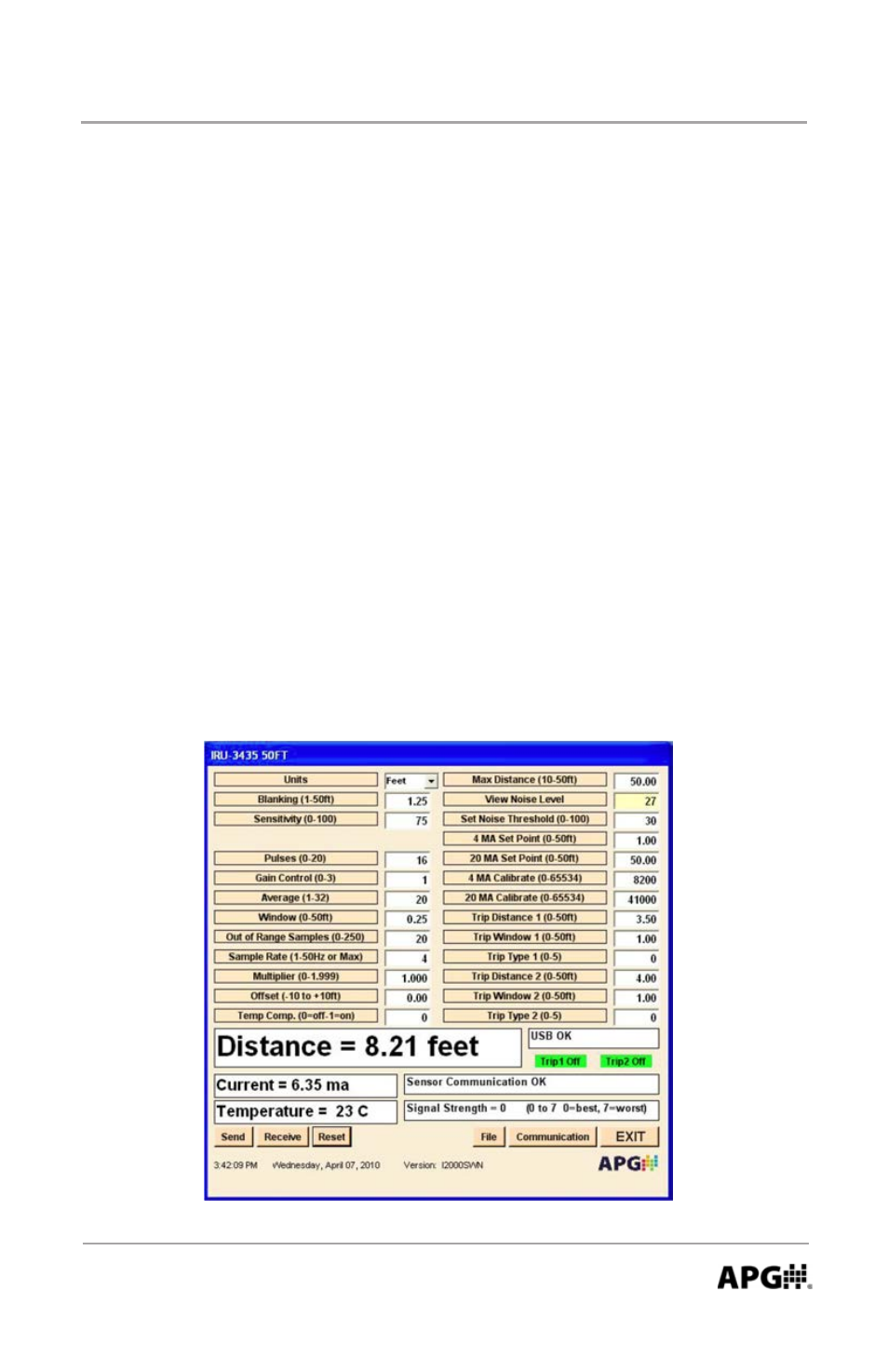

There are five windows that indicate real time sensor status:

Distance

Analog Output (when applicable)

Temperature

Communication Status

Signal Strength (Gain Control setting 1 only)

The “distance” reading indicates the distance from the sensor face to the target

being detected. “Analog Output” status indicates the calculated value of the

analog output signal based on the target distance and the analog settings.

The “Signal Strength” window indicates how well the sensor is detecting the

target when operating in AutoSense mode (Gain Control setting 1). The signal

strength scales from 0 to 7. A value of 0 indicates a strong target signal, while

a value of 7 indicates the sensor is not able to detect a target. “AutoSense

Disabled” indicates the sensor is in manual mode (Gain Control settings of 0, 2,

or 3).
