Rev. B1, 3/10

IRU Series

13

Automation Products Group, Inc.

APG...Providing tailored solutions for measurement applications

Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]

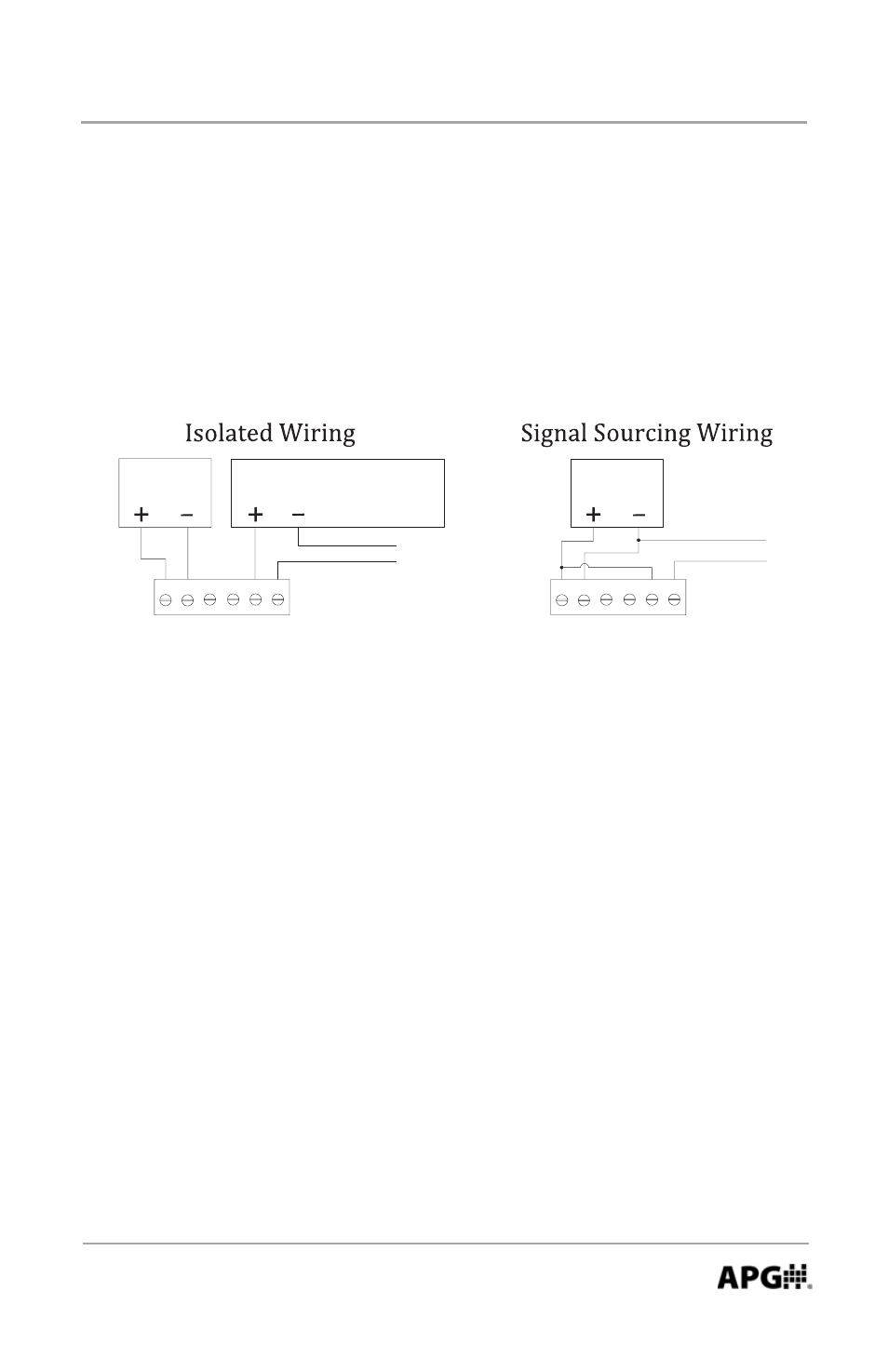

Isolated 4-20 mA Wiring

(IRU-2003 only)

The IRU-2003 is equipped with an isolated 4-20 mA output. This means that

the 4-20 mA circuit can be powered by the receiver (such as a datalogger) or

the source that is powering the receiver. Isolated wiring is used to prevent

potential ground loops that can exist in instances where the IRU and receiver are

not sharing the same power source. The 4-20 mA circuit can also be wired as a

standard current sourcing 4-20 mA signal simply by powering the circuit from

the same power source used by the main IRU sensor circuit

4-20 mA Output

(IRU-xxx3, excluding IRU-2003)

3-Conductor Cable

Red ......................+24 Vdc

Black ...................Ground

White ...................4-20 mA Output

4-20 mA with 2 NPN Trip Outputs

(IRU-xxx5)

5-Conductor Cable

Red ......................+24 Vdc

Black ...................Ground

Orange ................4-20 mA Output

White ...................NPN 1

Green ..................NPN 2

+24

Vdc

Ground

Clock

Syn

c

Digita

lOutput

4-20m

a

(Input

Power)

4-20m

a

(Output

)

Sensor Wiring Terminal Strip

+24

Vdc

Ground

Clock

Syn

c

Digita

lOutput

4-20m

a

(Input

Power)

4-20m

a

(Output

)

Sensor Wiring Terminal Strip

Vdc

Source 1

Vdc

Source 1

Vdc

Source 2

(when applicable)

(when applicable)

Source powering receiver

or

Source provided by receiver

To receiver common

4-20 mA signal

to receiver

To receiver common

4-20 mA signal

to receiver
