4. Web Management
AirLive SNMP-GSH2004L User’s Manual 48
„ V3 Reports:
When a host receives a group membership query, it identifies the groups associated with
the query and determines to which groups it belongs. The host then sets a timer, with a
value less than the Max Response Time field in the query, for each group to which it
belongs. It Calculate the number of times of IGMPV3 report.
„
V2 Leaves:
When a host leaves a group, it sends a leave group membership message to multicast
routers on the network, it show the leaves number.
4.5.5 Ping

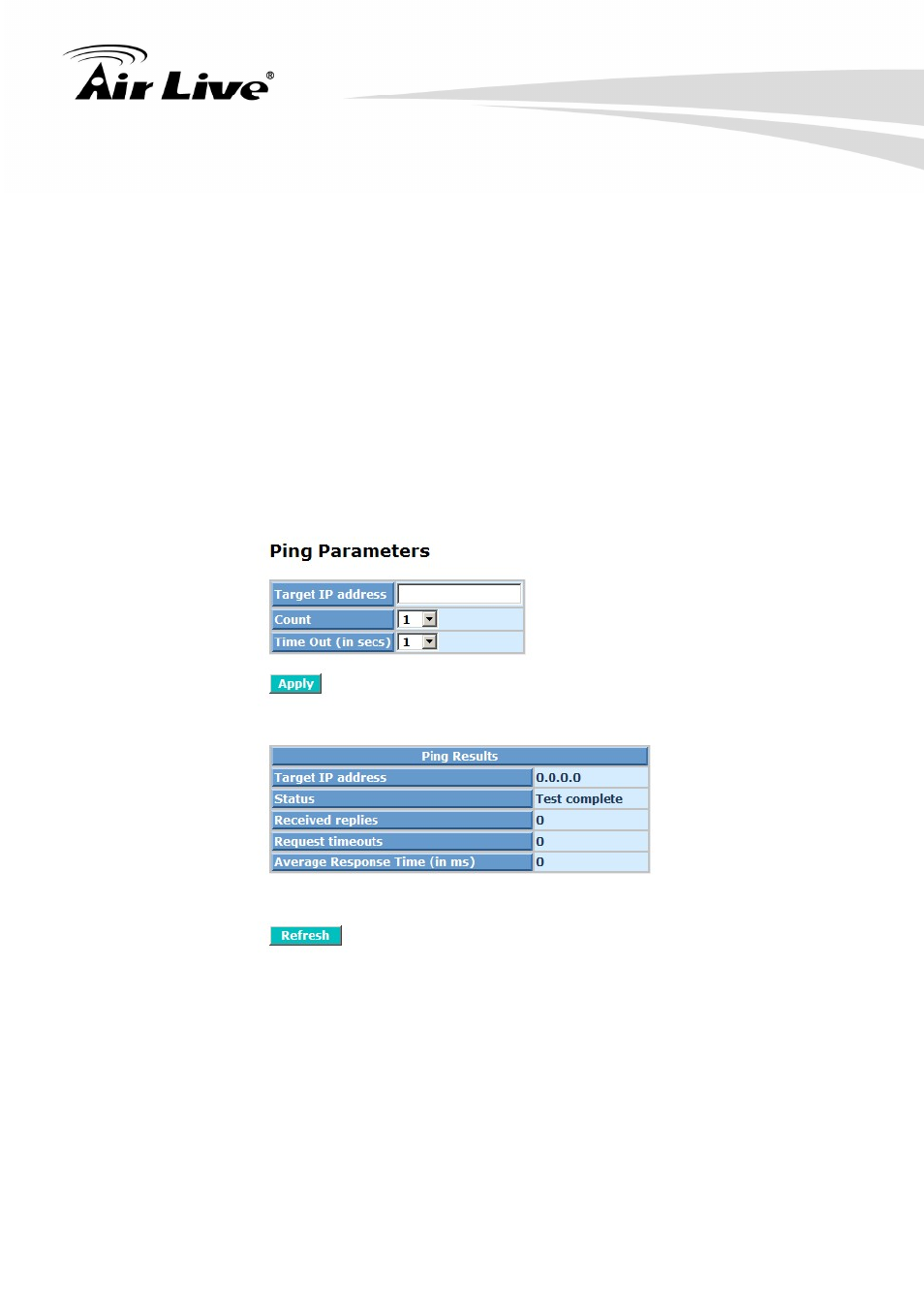

To set up target IP address for ping function and display ping status. In Fig. 4-
22, the window shows the ping information.
„ Ping Parameters:
¾ Target IP address:
Set up a Target IP address to ping.
