4.4.9 Mirroring

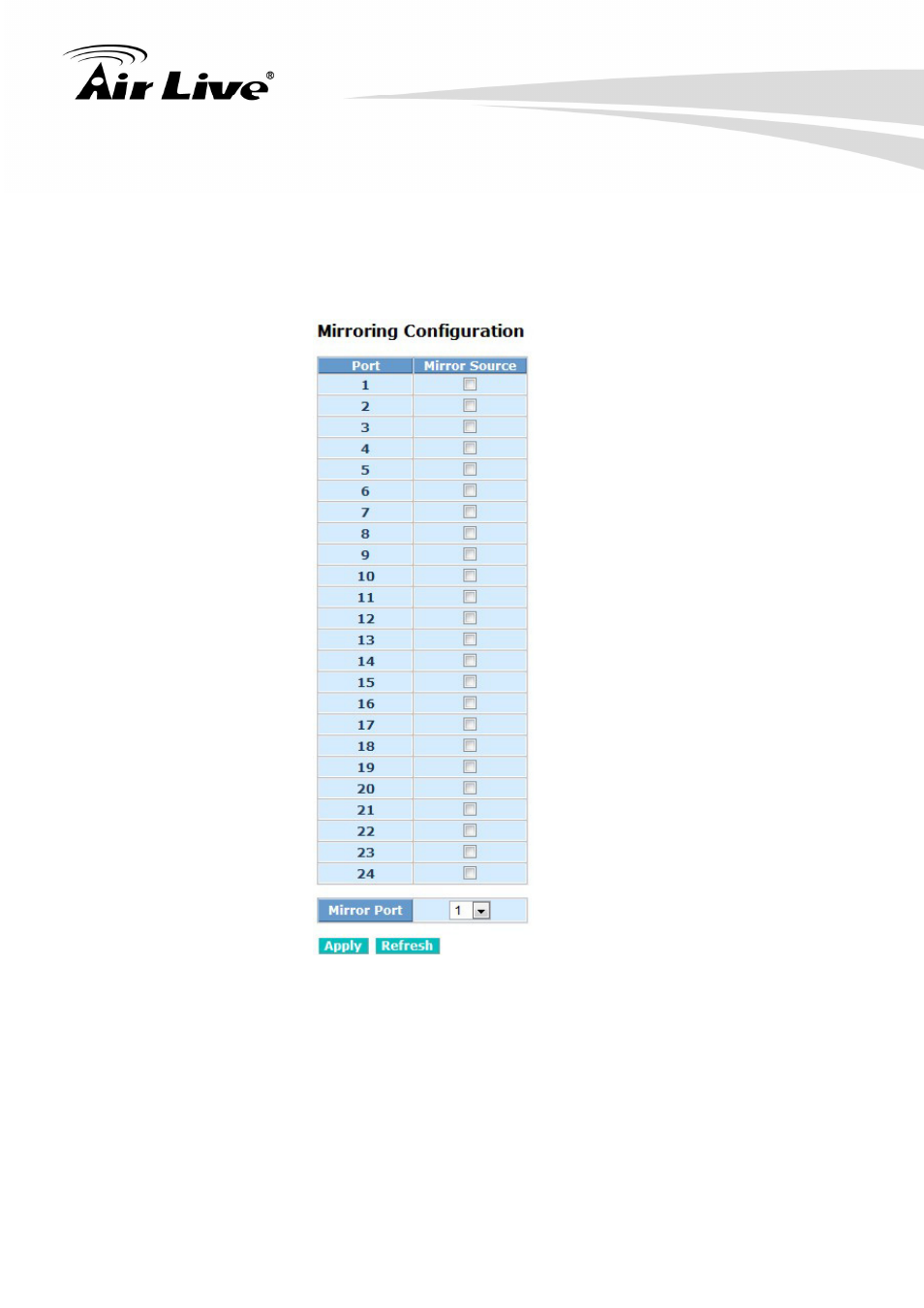

Mirror Configuration is provided to monitor the traffic in the network. This switch supports
one-port mirror multi-ports. For example, we assume that Port A and Port B are Source
Ports, and Port C is Mirror Port respectively, thus, the traffic passing through Port A and
Port B will be copied to Port C for monitor purpose.
„ Source Port:
Set up the port for being monitored. Just tick the check box ( ) beside the port x and valid
port is Port 1~24.
„
Mirror Port:
Use the drop-down menu to select a mirror port.
