3. LED Indicators
AirLive SNMP-GSH2004L User’s Manual 11
Before connecting any network device to SNMP-GSH2004L, you should take a few
minutes to look over this chapter and get familiar with the front panel LED indicators of your
Switch.

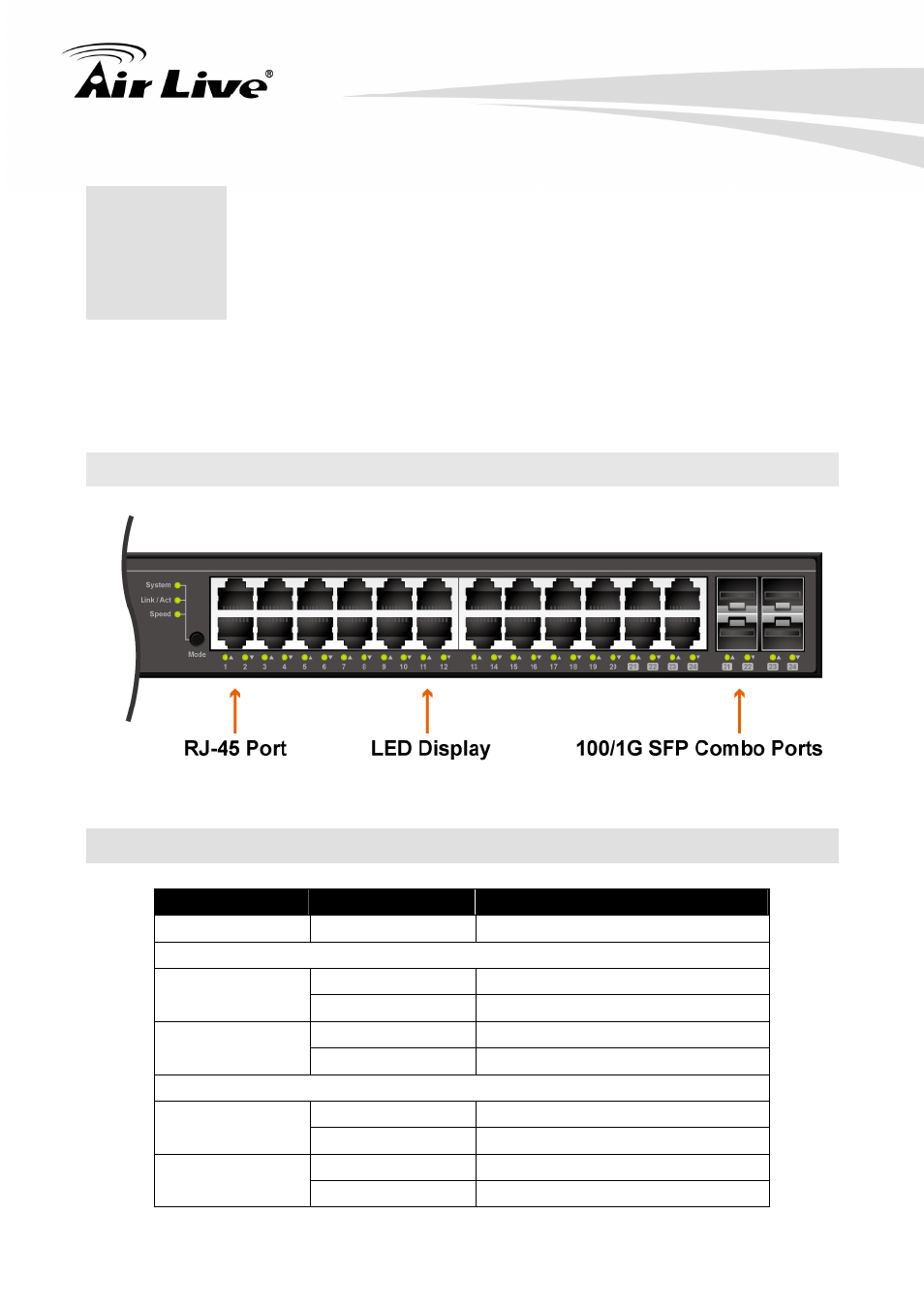

3.1 Comprehensive LEDs
3.2 LED Table
LED Color/Status Description
System Green Power on
10/100/1000Ethernet TP Port 1 to 24 LED
Green On Link Up
Link/ ACT
Green Blinking Data activating
Green On Link 1000Mbps
SPD
Yellow On Link 10/100Mbps
1000SX/LX Gigabit Fiber Port 21,22,23,24 LED
Green On Link Up
Link/ ACT
Green Blinking Data activating
Green On Link 1000Mbps
SPD
Yellow On Link 100Mbps
