4. Web Management
AirLive SNMP-GSH2004L User’s Manual 41
„ Tx/Rx Bytes:
The number of received and transmitted bytes per port.
„
Tx/Rx Frames:
The number of received and transmitted frames per port.
„
Tx/Rx Errors:
The number of frames received in error and the number of incomplete transmissions per
port.
4.5.2 Detailed Statistics

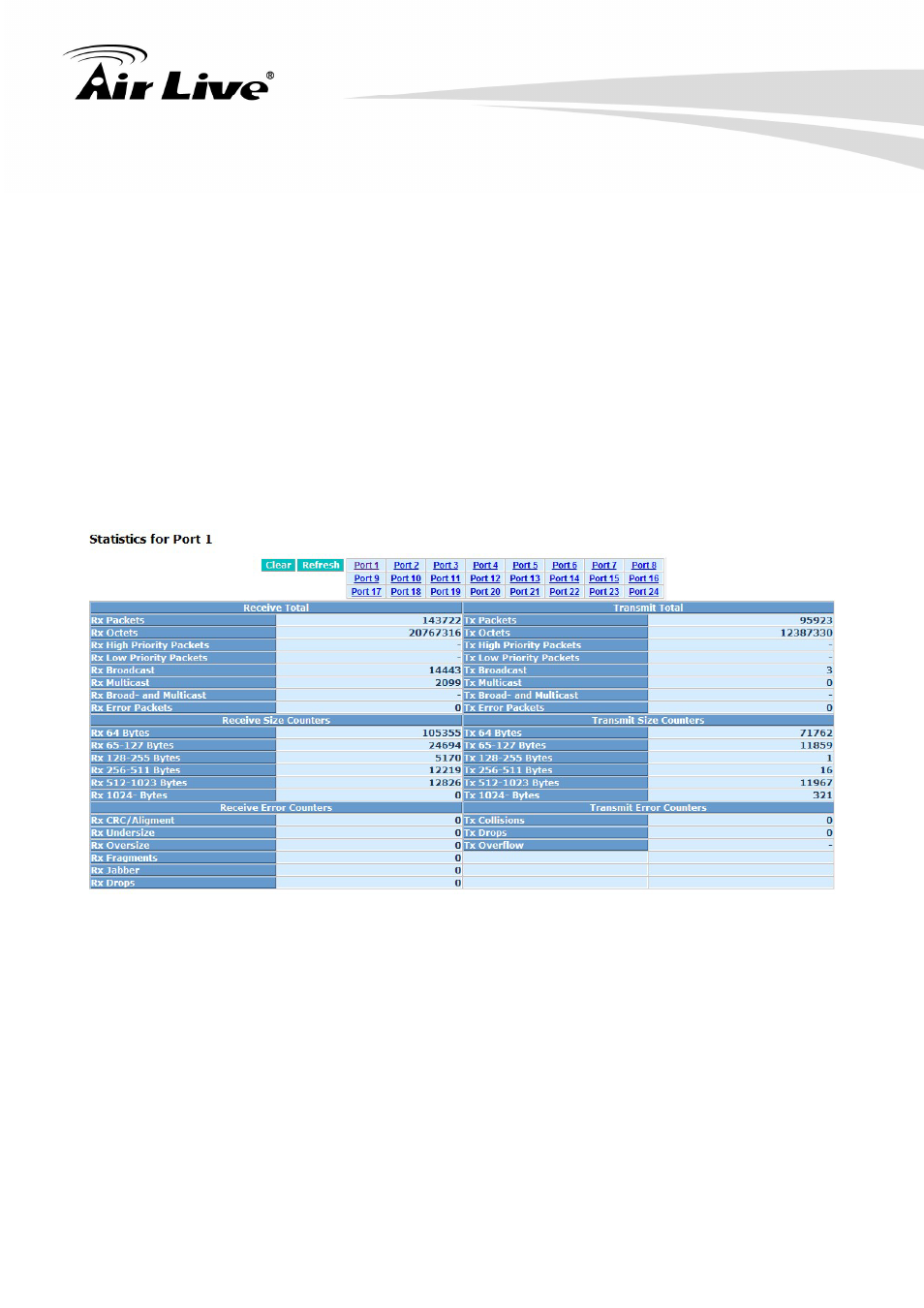

Display the detailed counting number of each port’s traffic. In the Fig. 4-20, the window can
show all counter information each port at one time.
„ Rx Packets:
The counting number of the packet received.
„
RX Octets:
Total received bytes.
„
Rx High Priority Packets:
Number of Rx packets classified as high priority.
„
Rx Low Priority Packets:
Number of Rx packets classified as low priority.
