SECTION 3 - CHASSIS & TURNTABLE
3121290 – JLG Lift – 3-19
Tool List
The following specialized tools are used to assemble this unit.

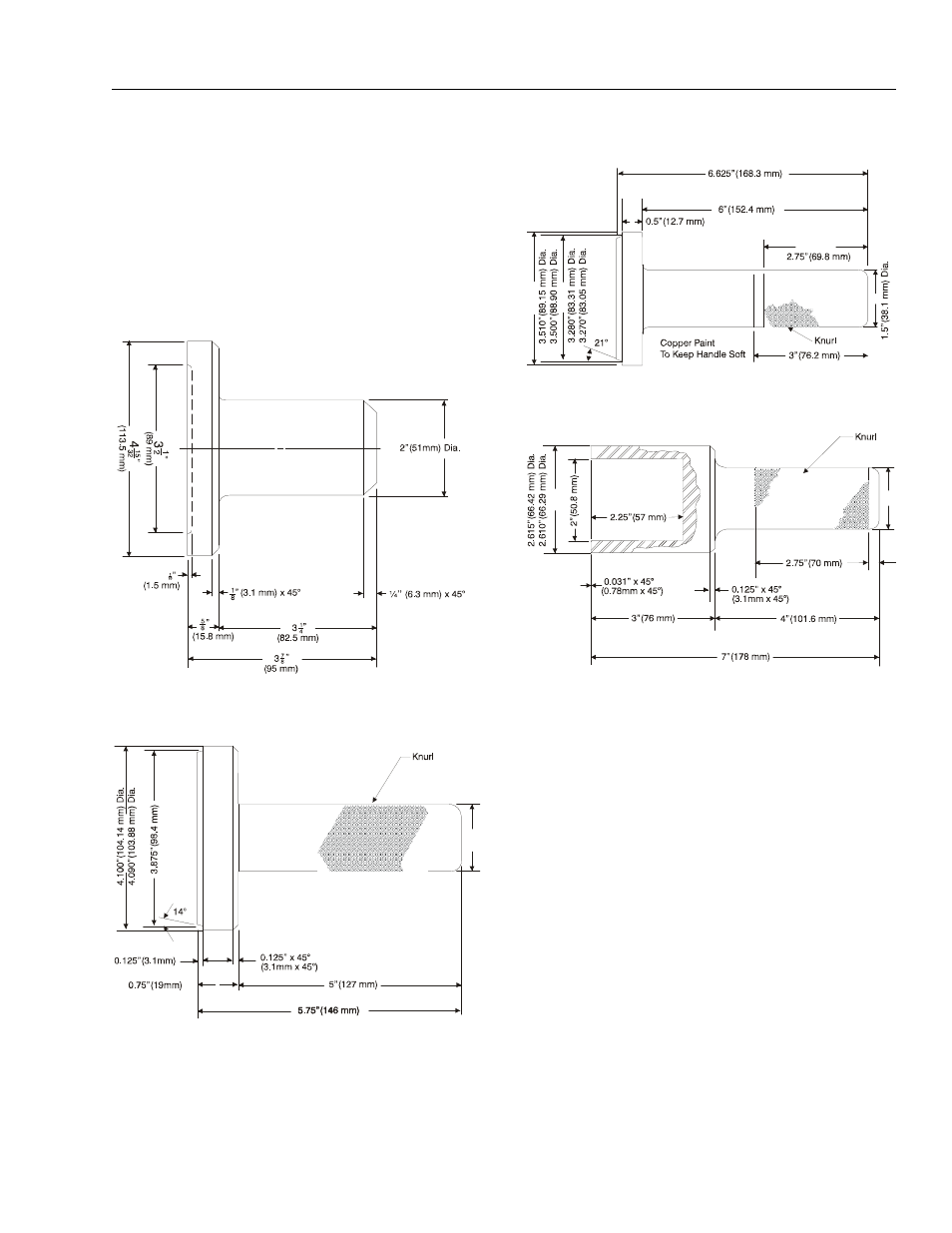

Tool diagrams in this manual are intended for the customer
who may wish to have a tool made. All tools are one piece and
must be made from mild steel. All dimensions are in inches.
NOTE: Tools may be carburized and hardened to improve tool life.
If this is done, tools must be ground on all surfaces labeled
with a “G” on the tool diagram.
1. T-118126 SEAL PRESSING TOOL FOR SEAL (1B).
2. T-138903 ASSEMBLY PRESSING TOOL FOR CUP (1C).
3. T-140433 ASSEMBLY PRESSING TOOL FOR CUP (1E) .
4. T-109691 ASSEMBLY PRESSING TOOL FOR CONE (1F).
* These tools are for specific seals, cups or cones. There is a
specific tool for each cup and cone.
