SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS

7-6

– JLG Lift –

3121290

7.4

AMP CONNECTOR

Plug and header assembly colors are mechanically keyed to
mate only with identical colors.

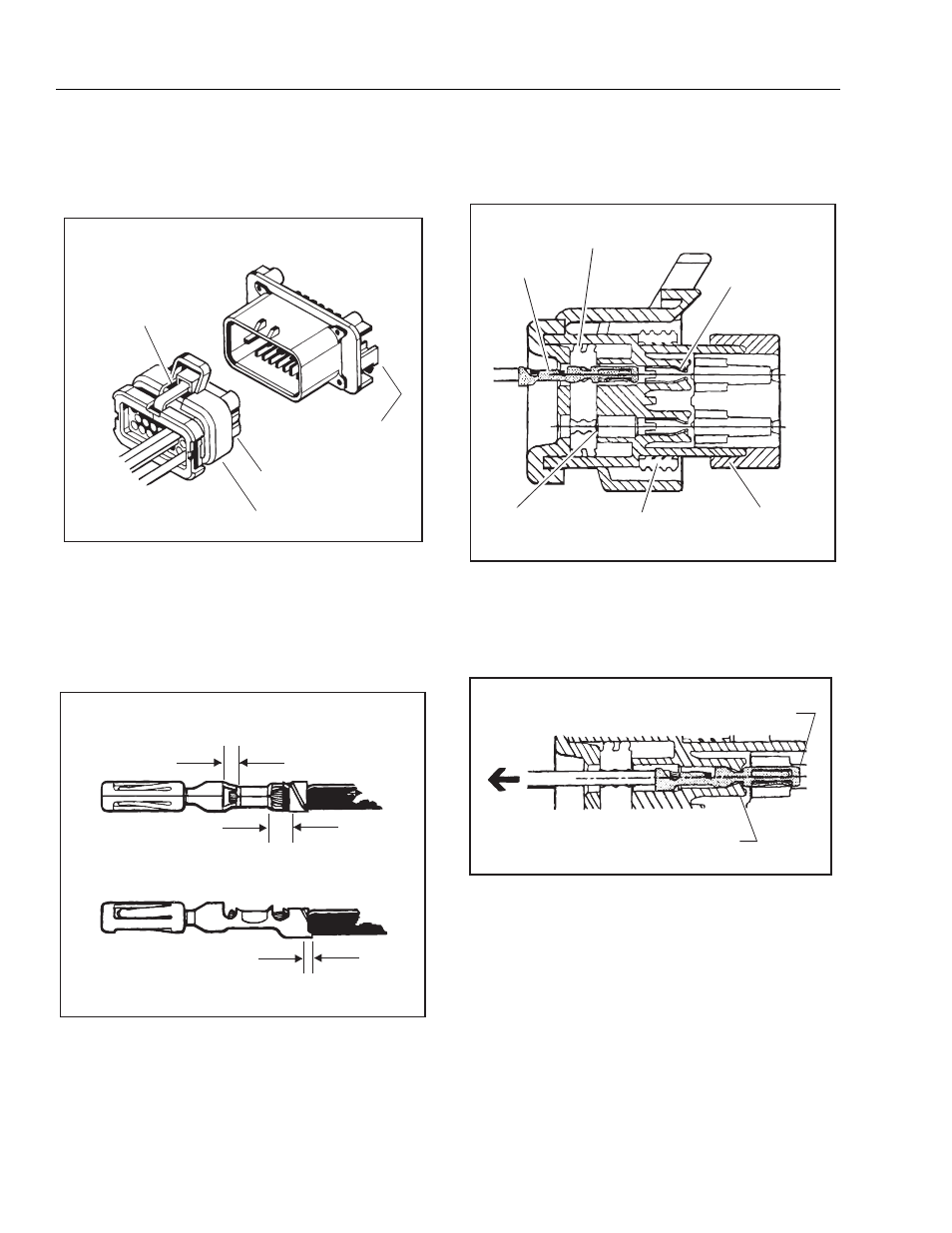

Figure 7-13. AMP Connector

Contact Assembly

1.

Strip wire and install in crimp end of connector as
shown in Figure 7-14.

2.

Crimp connector. Do not damage cutoff tab.

Figure 7-14. AMP Contact Assembly

Connector Assembly

1.

Check wedge lock is in the open, or as-shipped, position.

Figure 7-15. AMP Connector Assembly

2.

Push contact straight into circuit cavity as far as it will go.

3.

Pull on contact wire with a force of 1 - 2 lb to be sure
retention fingers are holding contact.

Figure 7-16. AMP Contact Installation
