SECTION 6 - JLG CONTROL SYSTEM
3121290 – JLG Lift – 6-3
Connect JLG Control System Analyzer
1. Connect four pin end of cable supplied with hand-held
or wireless analyzer to controller module on platform
box or at controller module inside ground control box.
Connect other end of cable to analyzer.
NOTE: Cable has a keyed four pin connector at each end. It cannot
be connected backwards.

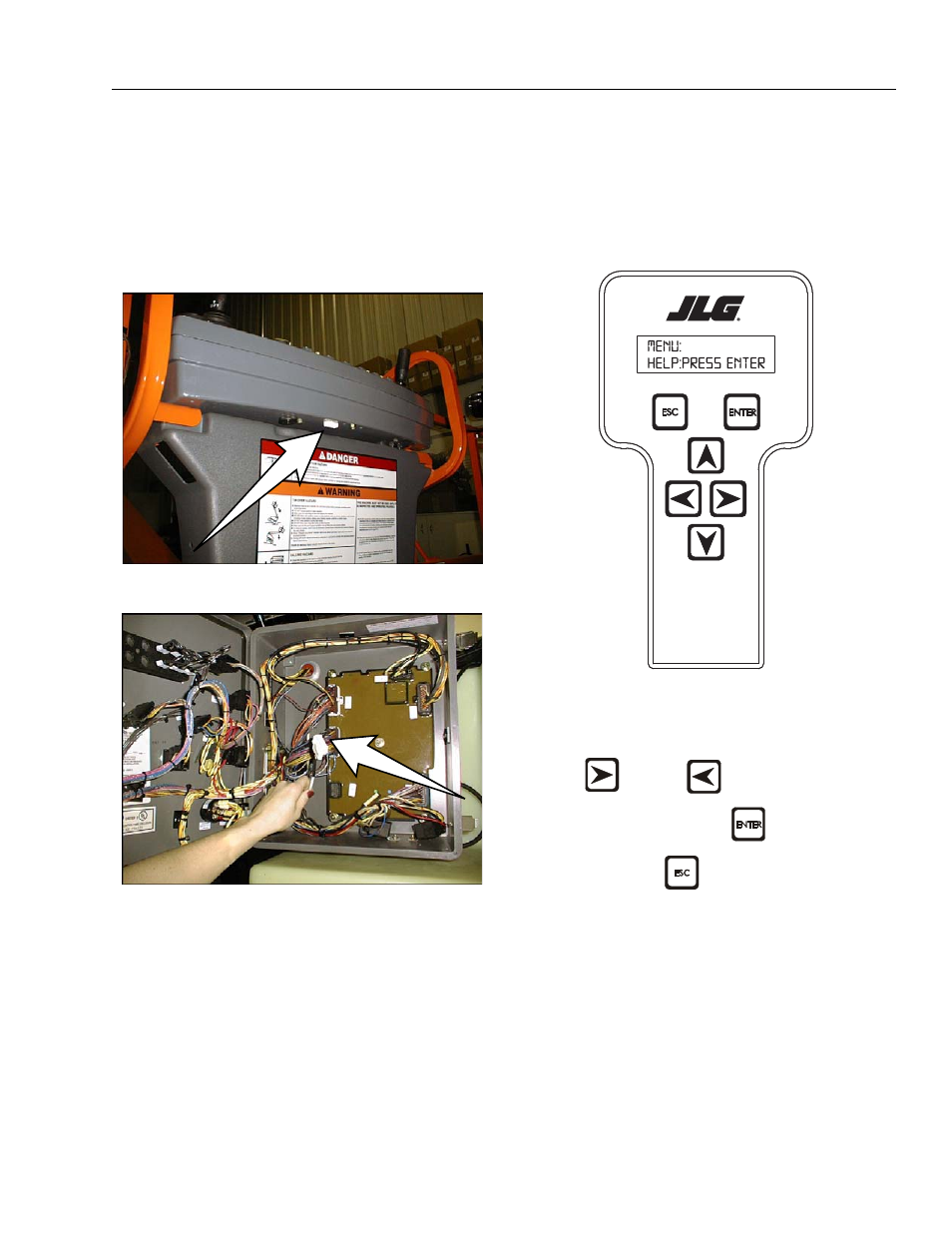

Figure 6-3. Analyzer Platform Connector
Figure 6-4. Analyzer Ground Control Box Connector
NOTE: Follow instructions provided with Wireless Analyzer (WAN-
ALYZER) kit. JLG Analyzer application must be downloaded
and installed to your smartphone or tablet device.
Using Analyzer
1. Power up Control System by turning lower key to plat-
form or ground position and pulling both emergency
stop buttons out.
Analyzer displays the following with machine power on and
analyzer connected properly:
MENU:
HELP:PRESS ENTER
Move between top level menu items using
RIGHT and LEFT arrow keys. To select a dis-
played menu item, press ENTER . To cancel a selected
menu item press ESC . Scroll using right and left arrow
keys to select a different menu item.
Top level menus:
HELP
DIAGNOSTICS
SYSTEM TEST
ACCESS LEVEL
PERSONALITIES
MACHINE SETUP
CALIBRATIONS (view only)
