SECTION 3 - CHASSIS & TURNTABLE

3121290

– JLG Lift –

3-83

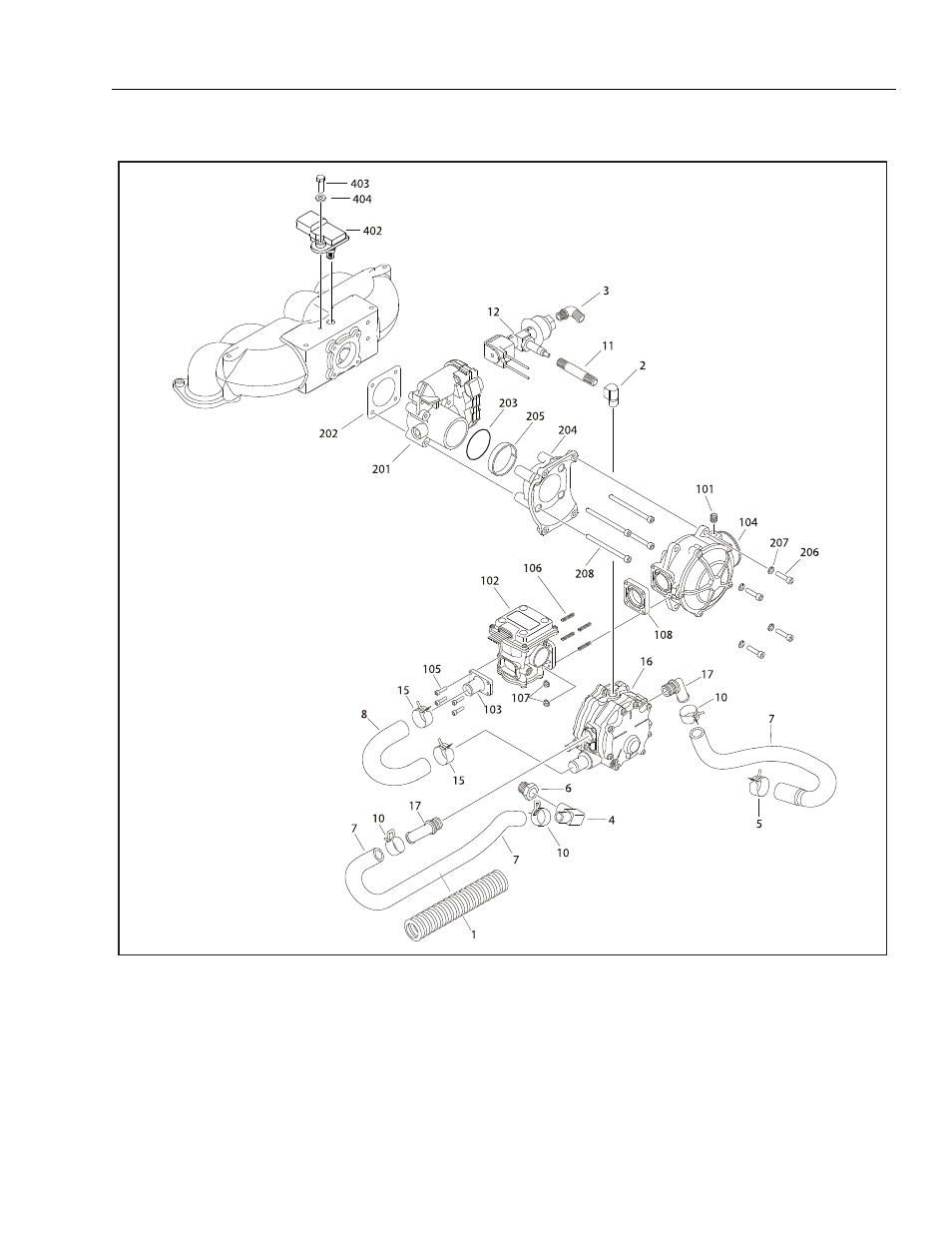

Figure 3-59. GM 3.0 Dual Fuel System Components

1. 1 inch Split Loom
2. 90° Fitting
3. 90° Fitting
4. 90° Fitting
5. Clamp
6. Adapter Fitting

7. Hose
8. Hose
10. Clamp
11. Nipple
12. Lock-Off Valve
15. Clamp

16. Regulator
17. 45° Fitting
18. Bolt
19. Bolt
20. Nut
101. Plug

102. Electronic Pressure Regulator
103. Adapter
104. Mixer
105. Bolt
106. Stud
107. Nut

108. Spacer (600A Only)
201. Throttle Body
202. Gasket
203. O-Ring
204. Adapter
205. Spacer

206. Bolt
207. Washer
208. Bolt
402. T-MAP Sensor
403. Bolt
404. Flat Washer
