SECTION 3 - CHASSIS & TURNTABLE

3121265

– JLG Lift –

3-51

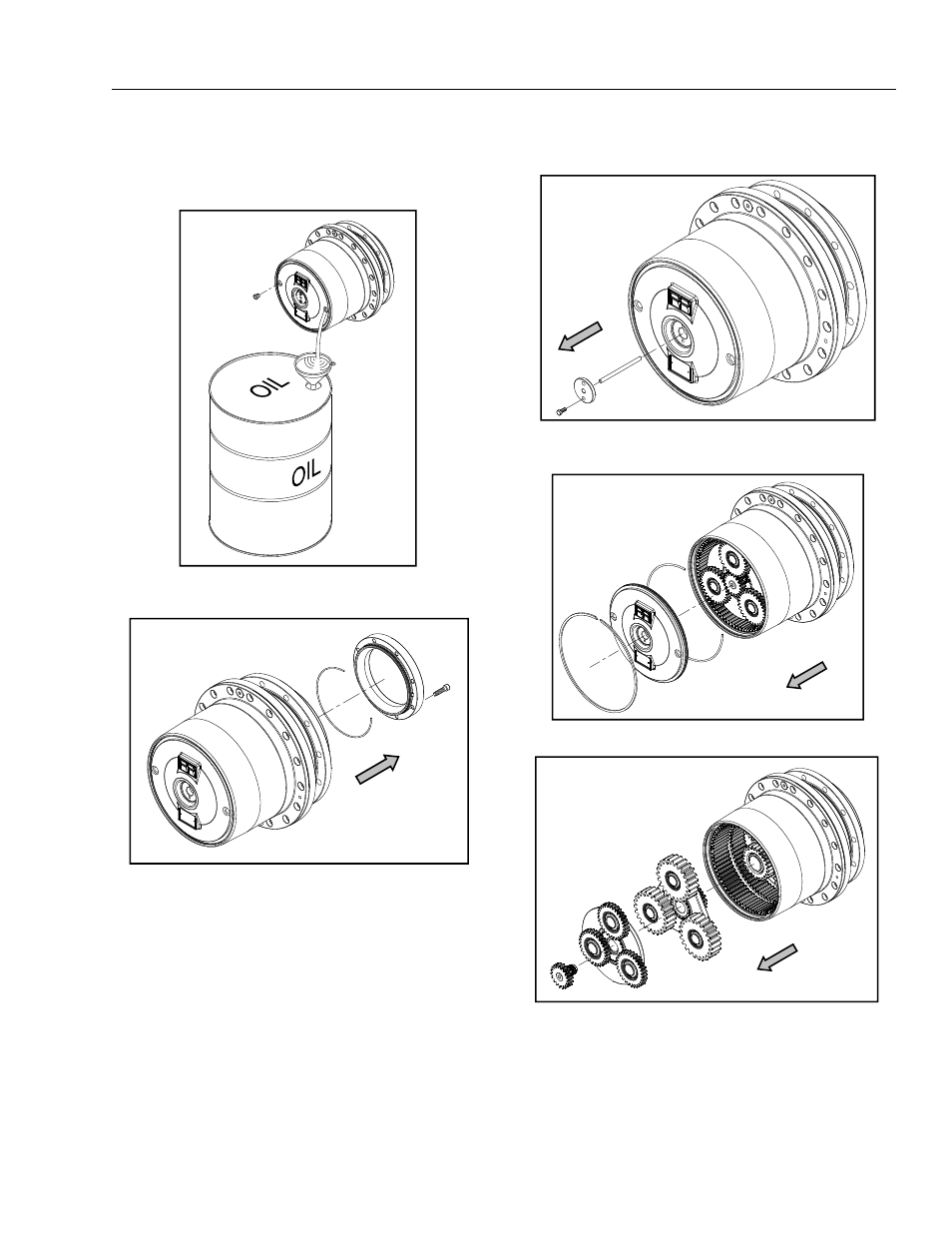

Disassembly

1.

Remove the plugs and pour the lubricant in a con-
tainer.

2.

Release the screws to disassemble the motor flange
taking care not to damage the O-Ring.

3.

Release the screws from the release cover and pull
the pin out.

4.

Remove the BR250 ring and pull the cover out
avoiding to damage the O-Ring.

5.

Pull the reduction gears out.
