SECTION 3 - CHASSIS & TURNTABLE
3121265 – JLG Lift – 3-113

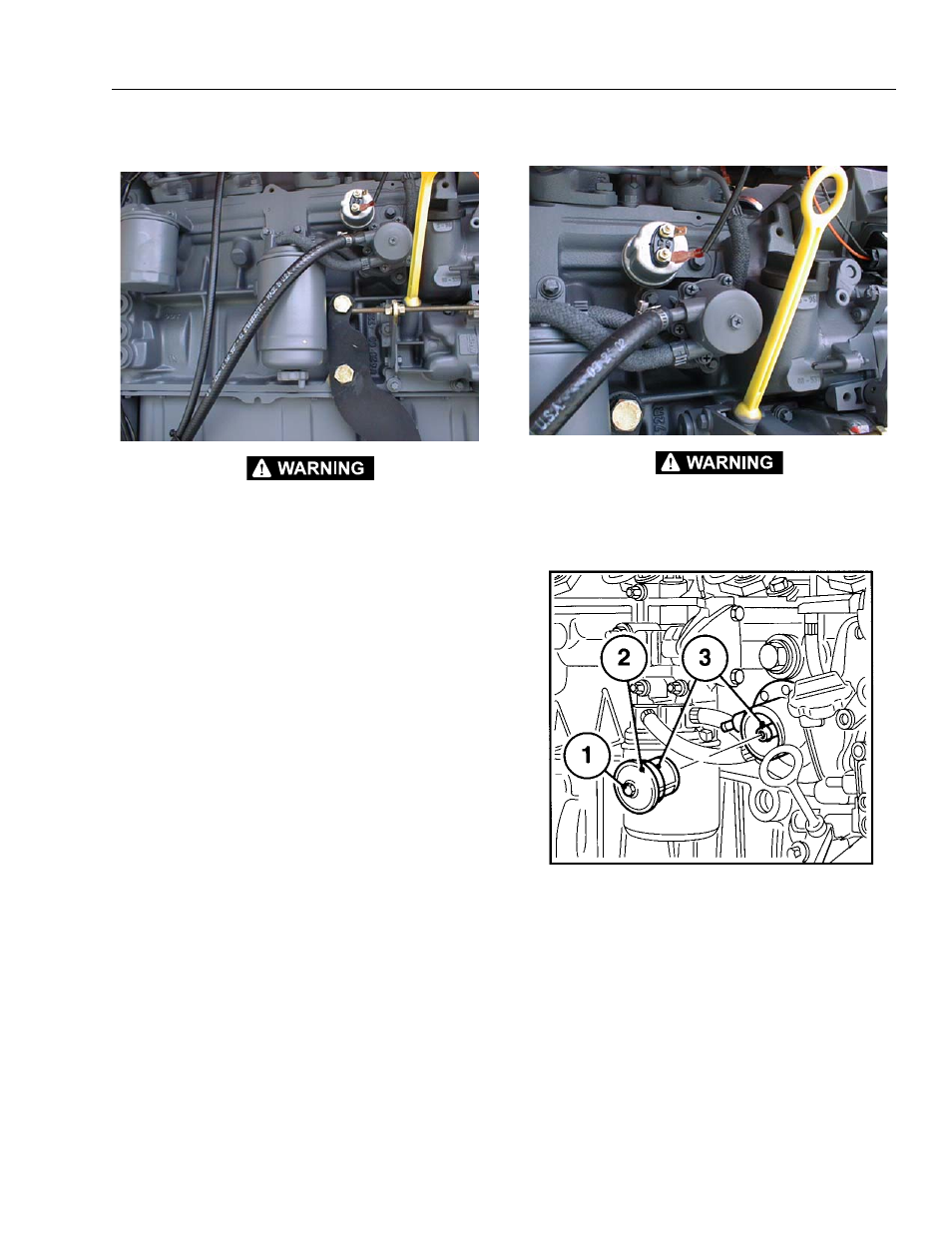

Replacing the Fuel Filter
WHEN WORKING ON THE FUEL SYSTEM, MAKE SURE THERE ARE
NO OPEN FLAMES OR SPARKS IN THE AREA. DO NOT SMOKE
WHEN WORKING ON THE FUEL SYSTEM.
1. Wipe the area around the filter to clean any dirt from
the area.
2. Undo the fuel filter cartridge and spin off.
3. Catch any escaping fuel.
4. Clean any dirt from the filter carrier sealing surface.
5. Apply a light film of oil or diesel fuel to the rubber
gasket of the new filter cartridge.
6. Manually screw in the new filter until the gasket is
flush.
7. Tighten the fuel filter cartridge with a final half-turn.
8. Open the fuel shut-off valve.
9. Check for leaks.
Cleaning the Fuel Strainer
WHEN WORKING ON THE FUEL SYSTEM, MAKE SURE THERE ARE
NO OPEN FLAMES OR SPARKS IN THE AREA. DO NOT SMOKE
WHEN WORKING ON THE FUEL SYSTEM.
1. Unscrew the hexagonal nut (1).
2. Remove the fuel strainer cover (2).
3. Clean the fuel strainer with diesel fuel, replace if nec-
essary.
4. Place the seal (3) in position.
5. Install the fuel strainer cover (2) in position and
tighten the hexagonal screw (1).
6. Check for leaks.
