SECTION 3 - CHASSIS & TURNTABLE
3-46
– JLG Lift –
3121265
3.12 DRIVE HUB - REGGIANA RIDUTTORI
NOTE: Machines may be built with either Bonfiglioli or Reg-
giana Riduttori wheel drive hubs. See Section 3.11,
Drive Hub - Bonfiglioli. Do not use different hubs on
the same machine.
Symbol Nomenclature
= ADHESIVE
= LUBRICANT
= GREASE
= TORQUE WRENCH
= DISPOSAL
Tools
Tools required for assembling and disassembling the
wheel gear RRTD1701TB
1.
Hammer;
2.
Clamps for inner retention rings;
3.
Clamps for outer retention rings;
4.
Electric or pneumatic screwdriver;
5.
Special spacer mounting;
6.
Torque wrench;
7.
Hydraulic press;
8.
Wrench for M6, M8, M10 socket head screws and 1/
4"G plug.
9.
Socket wrench for M6 hexagonal screw.
Ш30
Ш130
Ш240
Ш224
Ш233
Ш240
N° 6 Hole to 120° Ø30
5
10
5x45°
15
°
6
0
°
60°
6
0
°
A
A
35
M- 1326
R
5

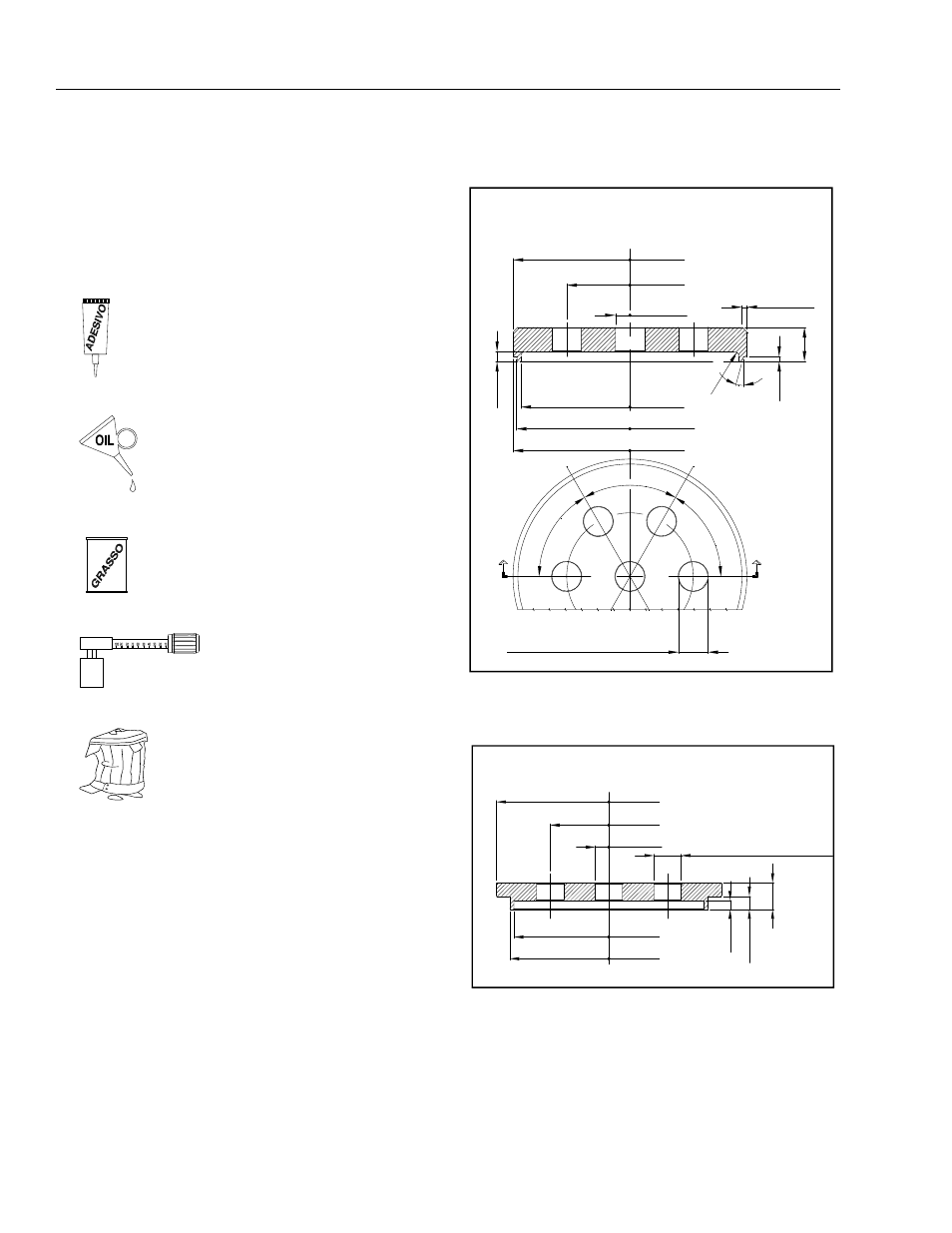

Figure 3-22. Bearing Track Spacer Mounting C016117
Ш30
Ш130
Ш249
Ш210
Ш219
N° 4 Hole to 90° Ø30
10
14
.5
29
.5
M- 1537
Figure 3-23. Oil Seal Spacer Mounting C125049
