Galaxy® Gas Analyzer — Operating manual
20

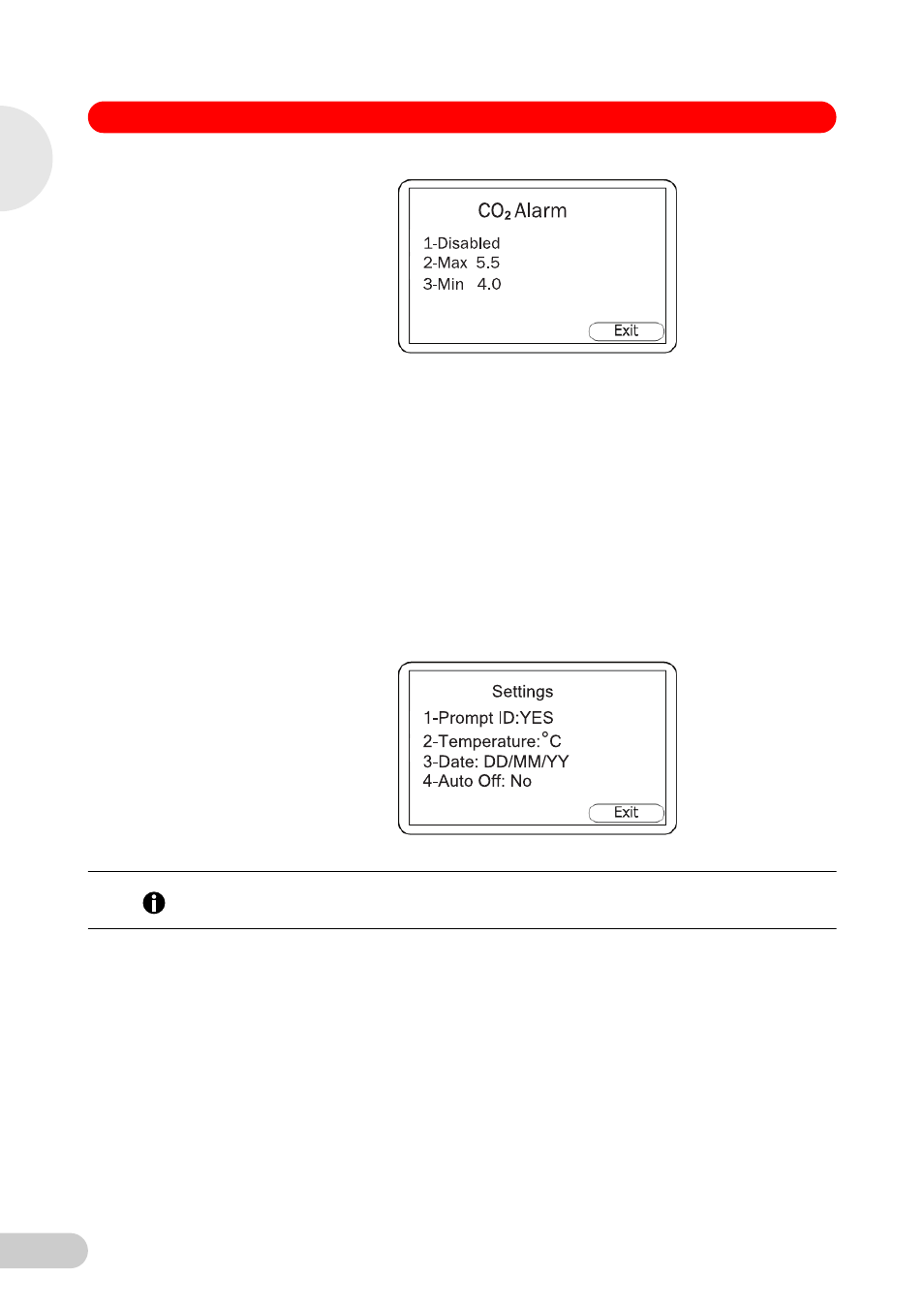

Abb. 13: CO 2 Alarm screen
Fig. 13: CO
2
Alarm screen
7. Press the right-hand (Exit) soft key to return to the Current Alarms screen.
8. If you wish to set O
2
alarms, press the numeric 2 key for the O
2
Alarm screen, then follow
Steps 5 - 7.
9. Press the right-hand (Exit) soft key in the Current Alarms screen to return to the Utilities
Menu.
Settings
The Settings screen (see Fig. 14 on p. 20) allows you to setup or adjust the way information from
samples and readings will be processed.
To access the Settings screen from the Main screen:
1. Press the Menu key on the instrument panel.
2. Press numeric key 2 to display the Utilities Menu.
3. Press numeric key 4 to display the Settings screen:
Abb. 14: Settings screen
Fig. 14: Settings screen
Prompt ID: If you want the instrument to prompt you for the ID code of the sample reading (to set
an ID code(see Logging on p. 23)) and NO is currently displayed here, press numeric key 1 to
toggle to YES. Press key 1 again to toggle back to the previous setting.
Temperature: In the sample screen (see Fig. 14 on p. 20), the temperature readings are taken
and recorded in degrees Centigrade (°C). To change the default measurement unit from
Centigrade to Fahrenheit (or vice versa), press numeric key 2.
Date: Press key 3 to change the date format from dd/mm/yy (“European” format) to mm/dd/yy
(“American” format) or vice versa.
Auto Off: If the screen says Auto Off is set to NO (see Fig. 14 on p. 20), press key 4 to select
YES. When the Auto Off function is enabled, the instrument will automatically shut itself off when
it has not been used for a period of 10 minutes. Press key 4 again if you wish to toggle back to
NO.
Hint!
• 1-, 2-, 3- and 4- indicate the numeric key for each function (i.e., press 1 for Prompt ID)
• Press the right-hand soft key at any time to exit this screen and return to the Utilities Menu.
