Galaxy® Gas Analyzer — Operating manual
12

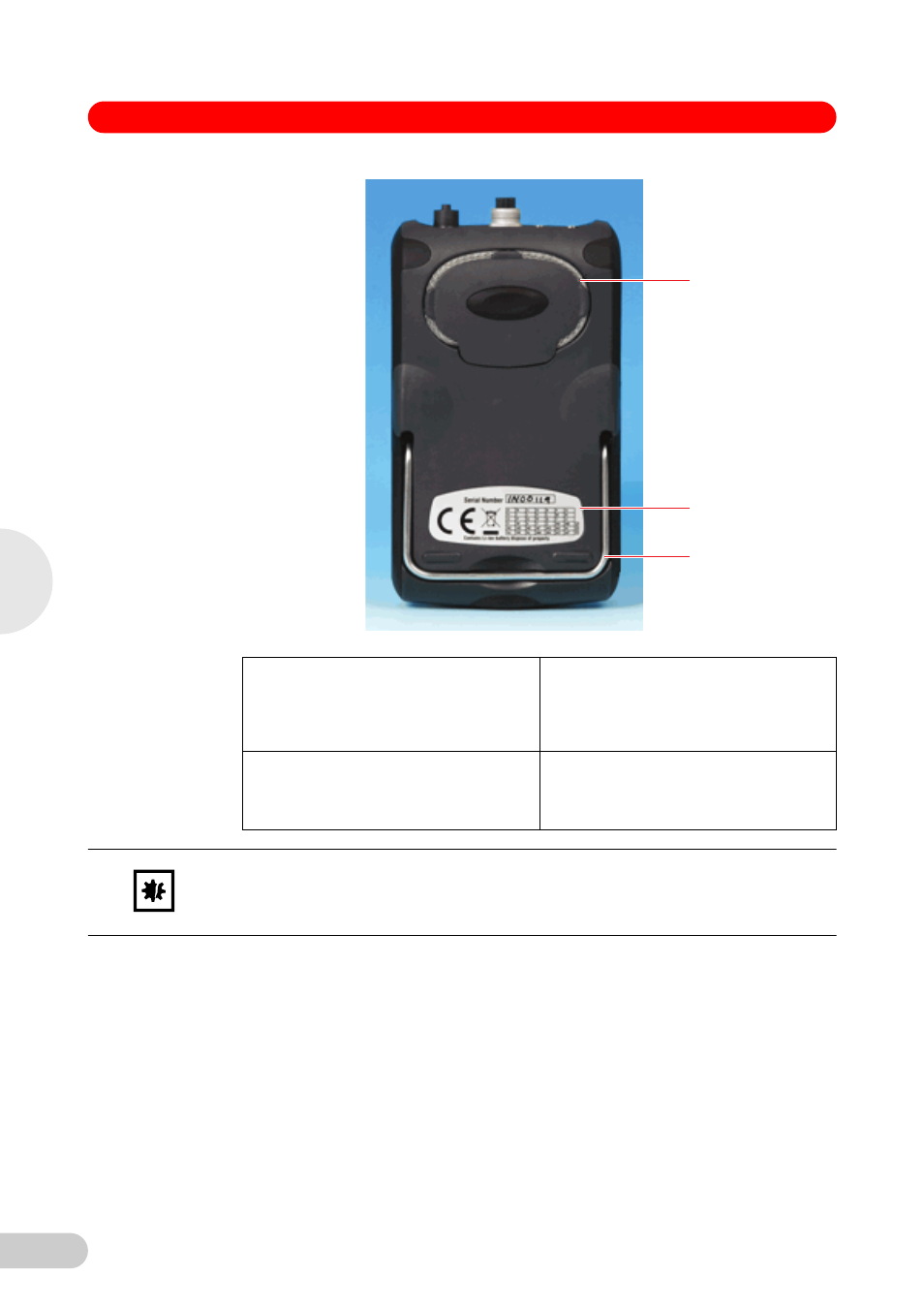

Abb. 2: Instrument panel - Rear view
Fig. 2: Instrument panel - Rear view
4.1.2 Instrument connection points
The instrument connection points (Fig. 3 on p. 13) and (Fig. 4 on p. 13) are located at the top and
back of the instrument.
Depending on the configuration of your model, certain connectors may not be present.
11 Moisture removal tube
This tool removes any moisture that may
be present in the sample gas.
12 Serial number
Each instrument’s unique identification
number. If technical support should be
needed, verification of this serial number
will be required.
13 Instrument stand
Pull this folding bracket out to allow the
instrument to stand on a flat surface
(see Fig. 4 on p. 13).
11
12
13
NOTICE!
Risk of material damage
 Never attempt to remove the back cover of the analyzer, and be careful not to cover or block
the moisture removal tube with your hand when you hold the analyzer to take readings.
