13
Galaxy® Gas Analyzer — Operating manual

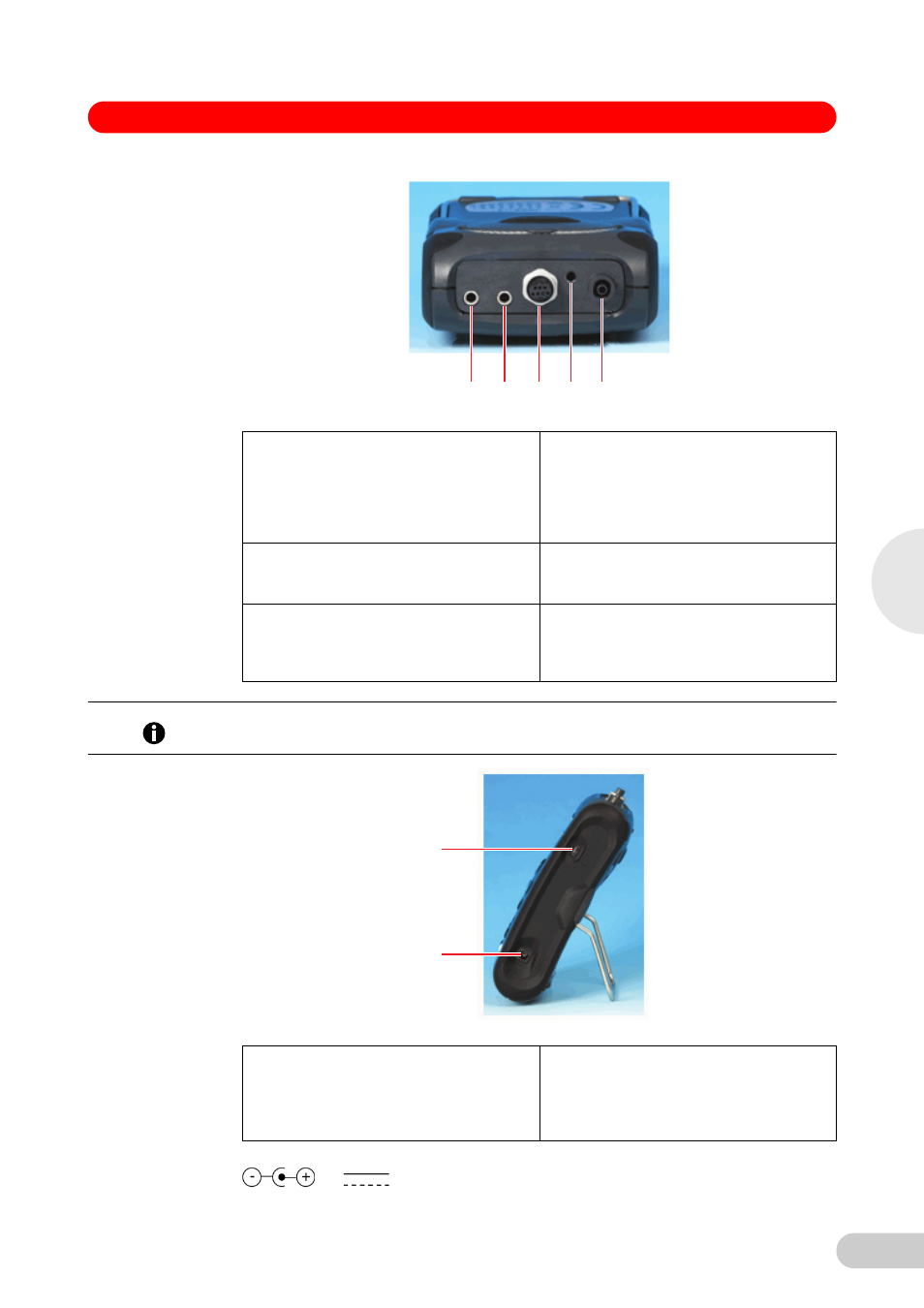

Abb. 3: Connection points - Top view
Fig. 3: Connection points - Top view
Abb. 4: Instrument connections
Fig. 4: Instrument connections
5 V ± 0.5 V (max 1000 mA)
1 Temperature 1
This connector for a temperature probe
measures differential temperature
between, for example, an incubator
chamber and the ambient temperature.
2 Temperature 2
This connector for another temperature
probe also measures differential
temperature between, for example, an
incubator chamber and the ambient
temperature.
3 Humidity Probe
Connect an optional humidity probe here.
4 Gas Outlet
This outlet port is used to exhaust gas
from the sample tube.
5 Gas Inlet
This inlet port is where you attach the
sample tube (and filter) in order to take
the gas reading.
1 2 3 4 5
Hint!
Temperature connectors are fitted with snap rivets to prevent dust ingress, remove before use.
Grip back cap and pull upwards to release. Refit when not in use.
1 USB Cable
Use this connection point to connect the
analyzer to a PC via a USB cable, to
download data.
2 Battery Charger
Use this connection point for the battery
charger, which, when plugged in to an
electrical socket, will recharge the
analyzer’s battery.
1
2
4
