28

I-26/26R Incubator Shakers M1324-0050

Operating Manual

5. Verify that the platform is now secured to the subplatform and the drive.

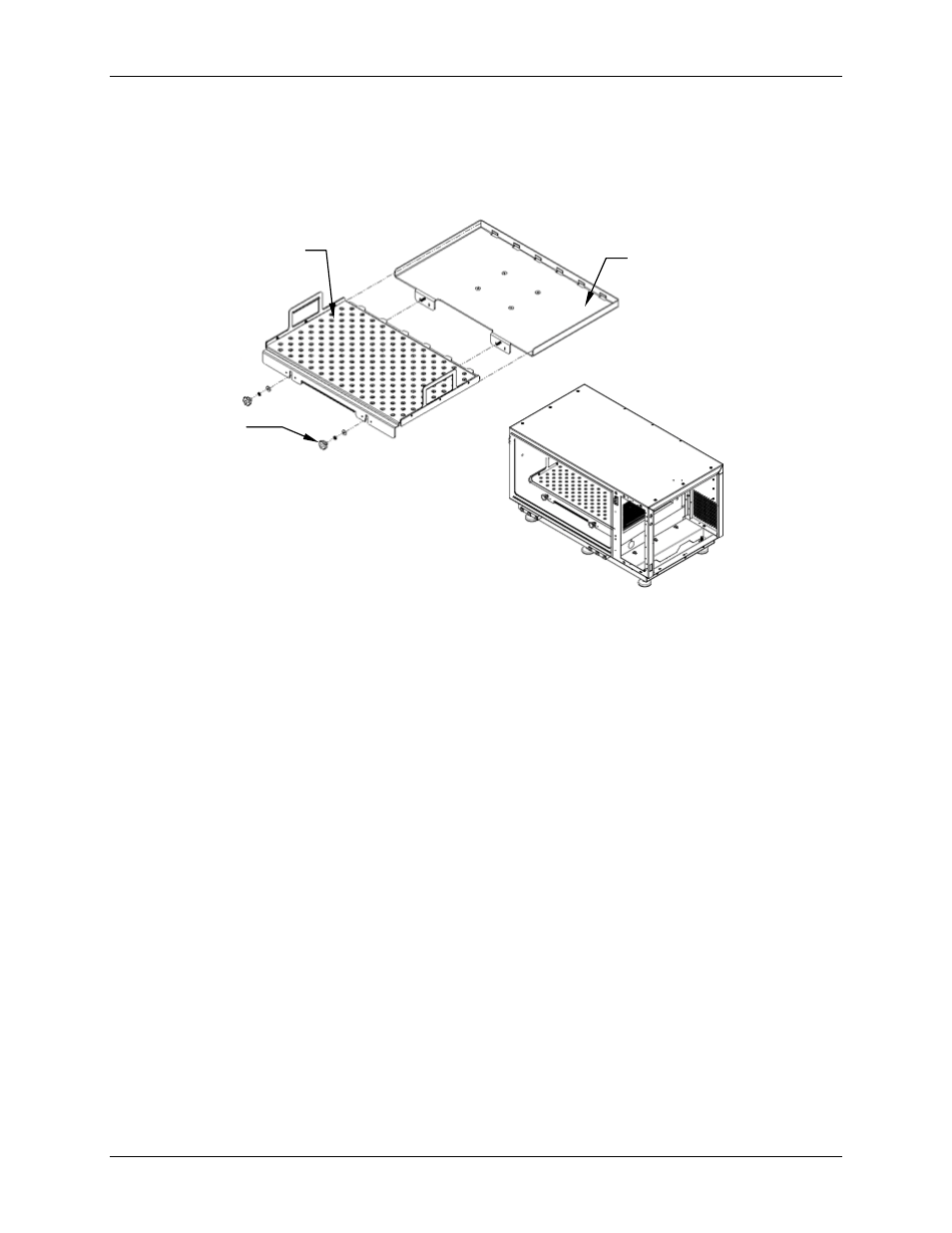

Figure 12: Installing Platform


All platforms, once installed, will easily slide in and out of the shaker:

1. Unscrew both knobs and remove the knobs and the washers on the front of the

platform to release the platform from the subplatform.

2. Pull the platform forward to rest on the door guide strips. The two stop pins in the

door will keep the platform from falling off the subplatform.

3. Slide it back in and be sure to replace the washers and knobs before operating the

shaker again.

7.4 Electrical

Connections

Before making electrical connections, verify that the power source voltage matches the
voltage on the

ELECTRICAL SPECIFICATION PLATE

and that the

ON/OFF SWITCH

is on

the

OFF

position. The

ELECTRICAL SPECIFICATION PLATE

is located on the rear panel

of the unit near the

POWER CONNECTOR

.

SUBPLATFORM

PLATFORM

KNOB
